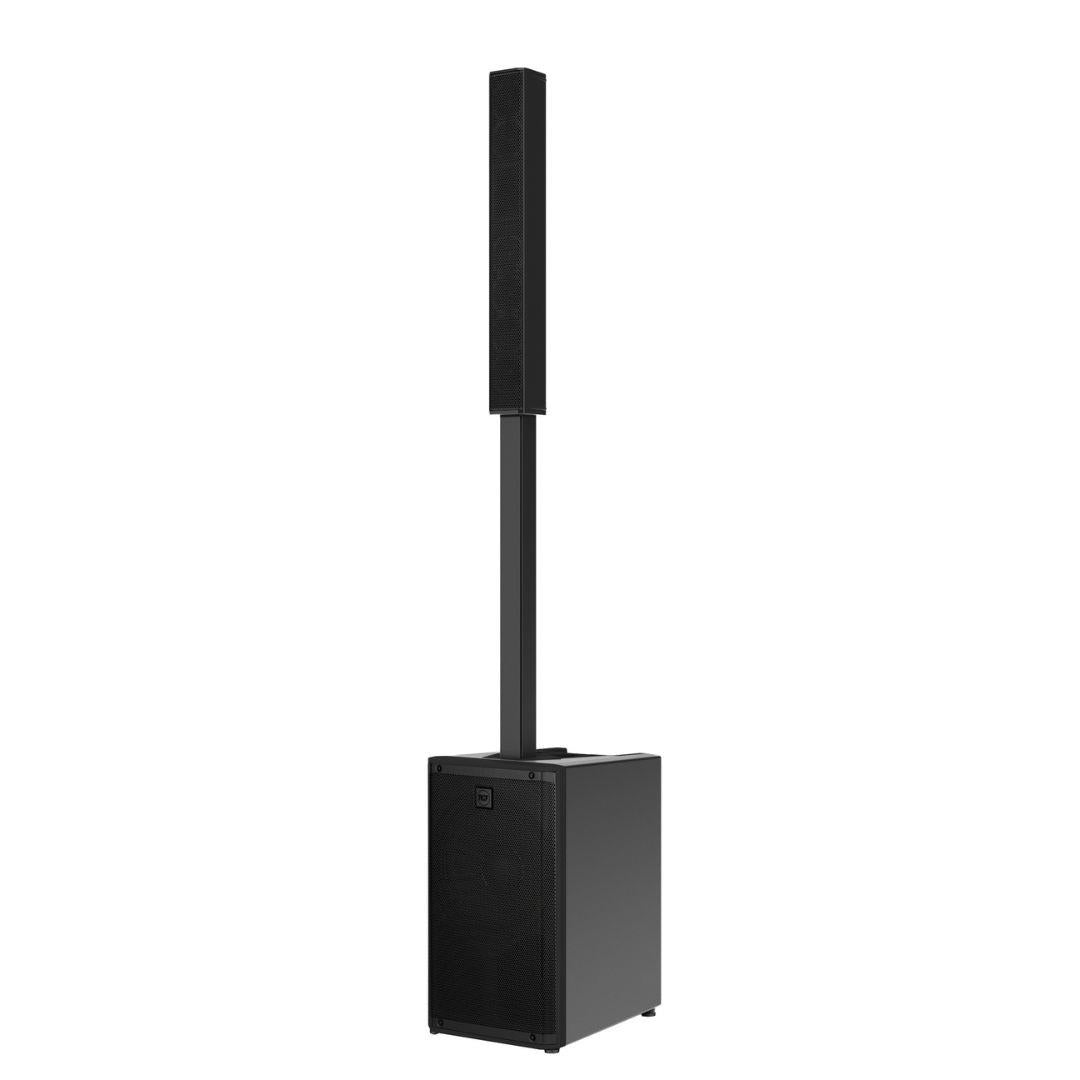

RCF Evox JMIX9 Active 3 Way Column Array inc Digital Mixer

Description

The RCF EVOX JMIX9 is a portable array loudspeaker with 3-way speaker configuration. Thanks to the built-in mixer and class-D amplifier, you have everything you need for a successful performance. With a peak power of no less than 2100 watts, this column speaker produces a maximum SPL of 130 dB. So you won't have to worry about too little volume any time soon. By connecting an RCF EVOX J9 via the link-output, this array can also be used in stereo set-ups. With a horizontal spread angle of 120 degrees, the sound is well distributed and you can serve a large audience. It has four mic/line inputs with XLR/jack combination socket equipped with phantom power and microphone preamps.

Digital mixing and wireless control
The EVOX JMIX9 features an advanced digital processor. A 2.4-inch colour touchscreen and rotary knobs allow you to compose your mix. Each channel features a 3-band EQ to bring out the best in the sound, and a high-pass filter to remove unwanted bass. A stereo reverb send is also present. To give the overall mix the best balance, there is an 8-band equaliser on the master bus and auxiliary. All functions can also be controlled wirelessly with the JMixRemote app via Bluetooth.

The RCF EVOX JMIX9 Portable Column PA System combines a powerful 2100 watt active speaker array with a fully featured 8 channel digital mixer, all in a sleek, easy to transport format. With up to 130 dB of crystal clear sound, wide coverage and onboard Bluetooth audio streaming, it is an all in one solution for solo performers, small bands, DJs and presenters who want professional results without a complex rig.

At its heart, EVOX JMIX9 delivers the same punchy, articulate sound as the acclaimed EVOX J9, but adds a colour touch screen digital mixer with effects, EQ, compressors and flexible routing. You can shape your entire mix directly from the top panel or control everything wirelessly via the JMixRemote app, making it ideal for quick set ups, tight stages and events where you need to move around the room while still managing the sound.

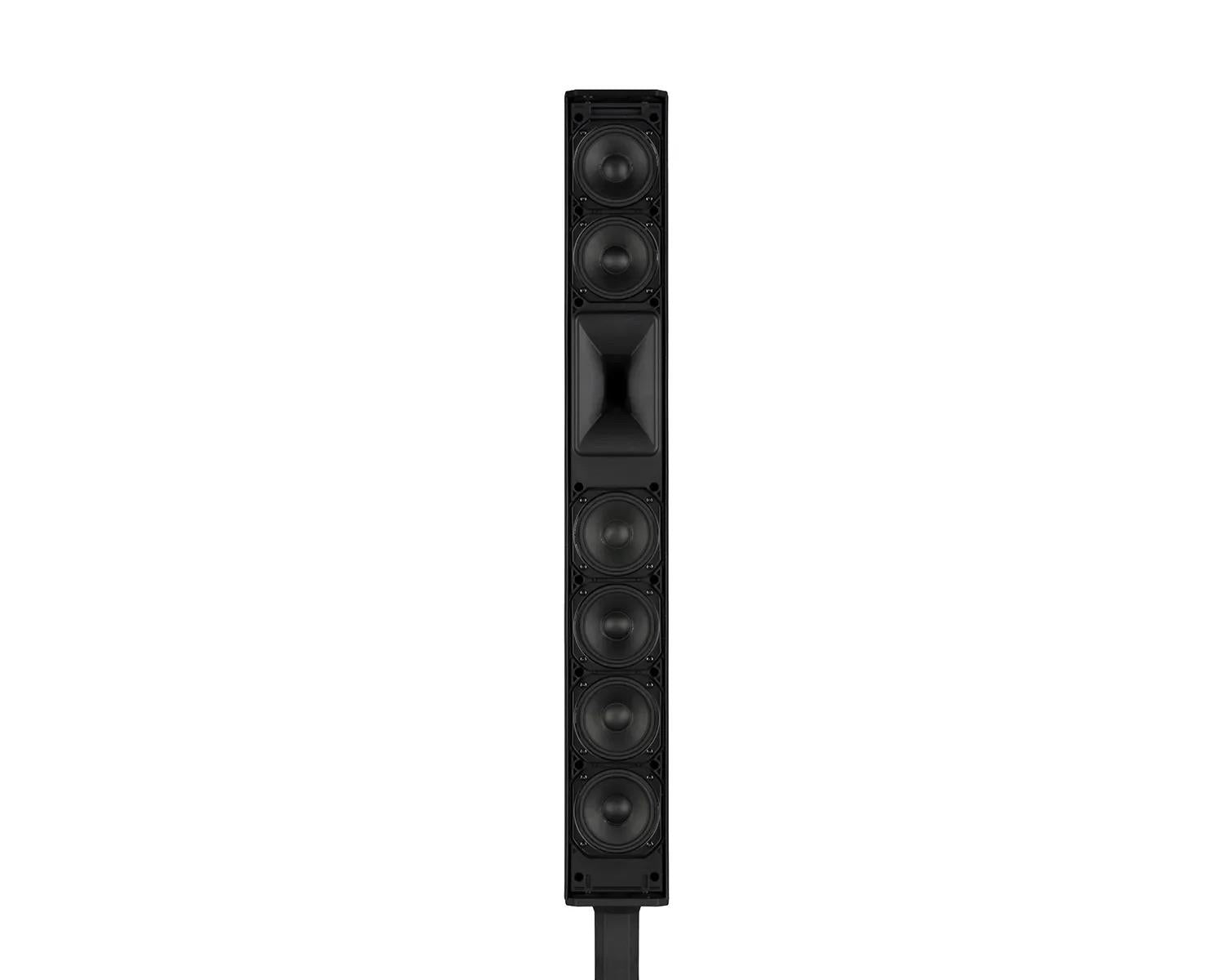

The column design uses a 1.75 inch compression driver on a 120 degree by 40 degree True Resistive Waveguide, working together with six 3 inch full range transducers to project a smooth, even sound across the audience. A high power 12 inch bass reflex woofer in the base delivers deep, controlled low end that stays tight even at higher volumes, so speech remains intelligible and music retains impact.

Despite its impressive performance, the system remains highly portable thanks to a lightweight composite cabinet, integrated handle and quick fit pole mount. With its clean white finish, EVOX JMIX9 looks at home in weddings, corporate events, houses of worship and stylish venues where visual appearance is just as important as sound quality.

Integrated 8 Channel Digital Mixer
The onboard true stereo digital mixer gives you four mic inputs with remote controlled gain, additional line inputs and dedicated stereo inputs, so you can connect microphones, instruments, playback devices and more without needing an external desk. With 32 bit processing, 24 bit conversion and a wide dynamic range, your sources are handled with studio grade precision before they ever reach the speakers.

Touch Control And Wireless Management
A colour touch display and encoders on the top of the sub cabinet provide fast access to all mixer and system functions, including EQ, compressors, effects, routing and output levels. For even greater flexibility, the JMixRemote app lets you control the entire system wirelessly, so you can walk the room, fine tune the sound from the audience perspective and make adjustments mid show without returning to the stage.

High Output With Wide, Even Coverage
Powered by a 2100 watt Class D amplifier, EVOX JMIX9 delivers up to 130 dB max SPL while maintaining clarity and low distortion. The 1.75 inch neo compression driver and six 3 inch full range transducers work with the True Resistive Waveguide to provide a 120 degree horizontal by 40 degree vertical coverage pattern, ensuring consistent sound from front to back and side to side.

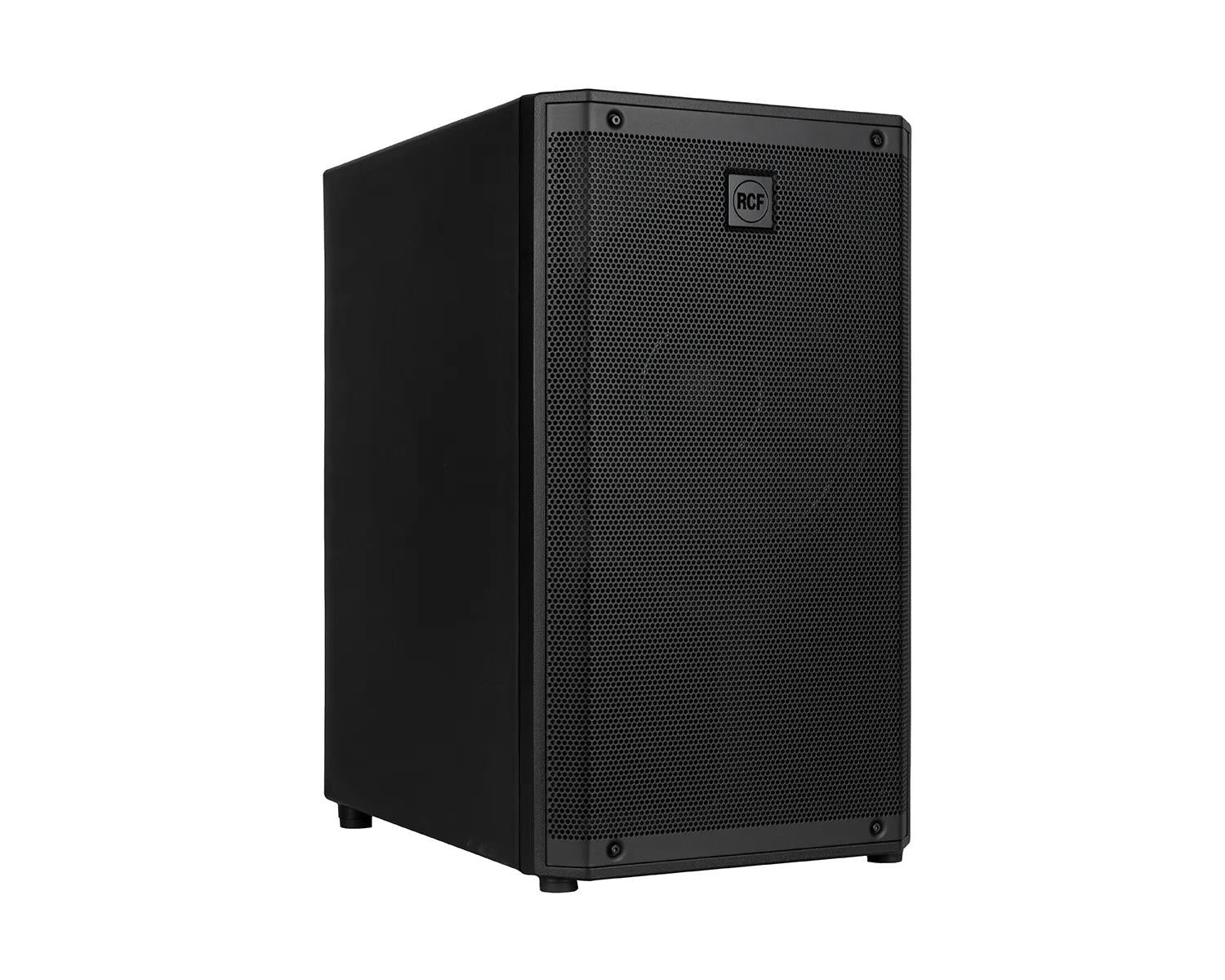

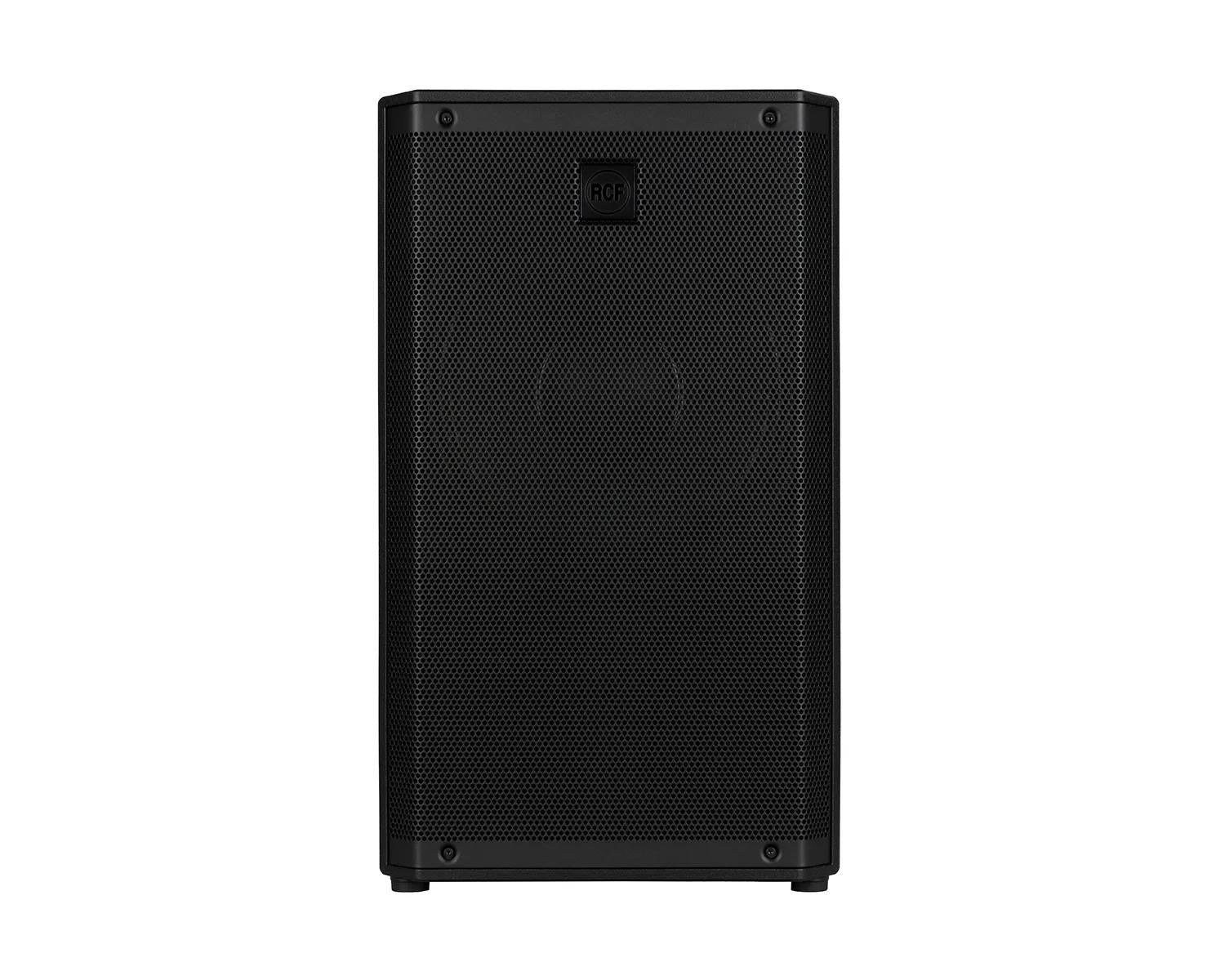

Deep, Controlled Low End
The 12 inch RCF precision woofer in a bass reflex enclosure provides solid, musical low frequencies down to 40 Hz. Internal DSP handles crossover, limiting and protection, keeping the low end tight and controlled even at high levels, which is essential for dance music, live bands and full range playback in demanding environments.
