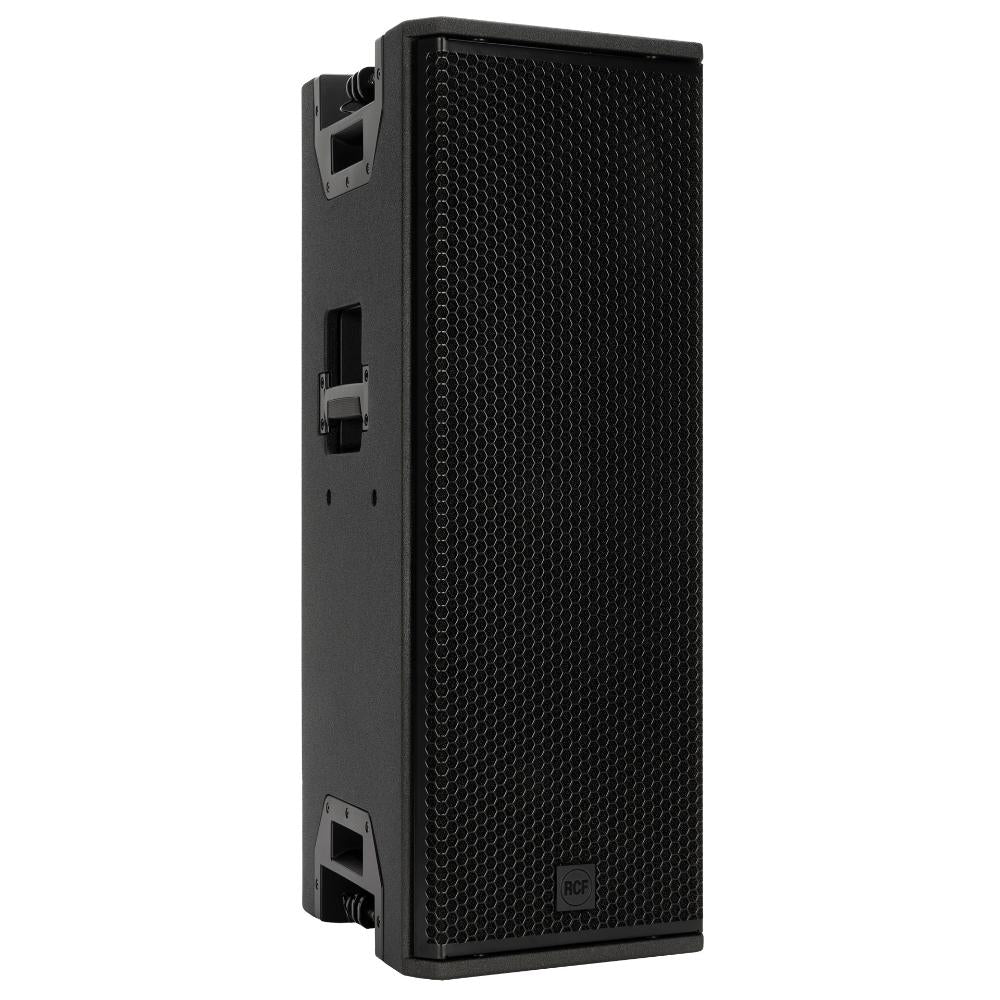

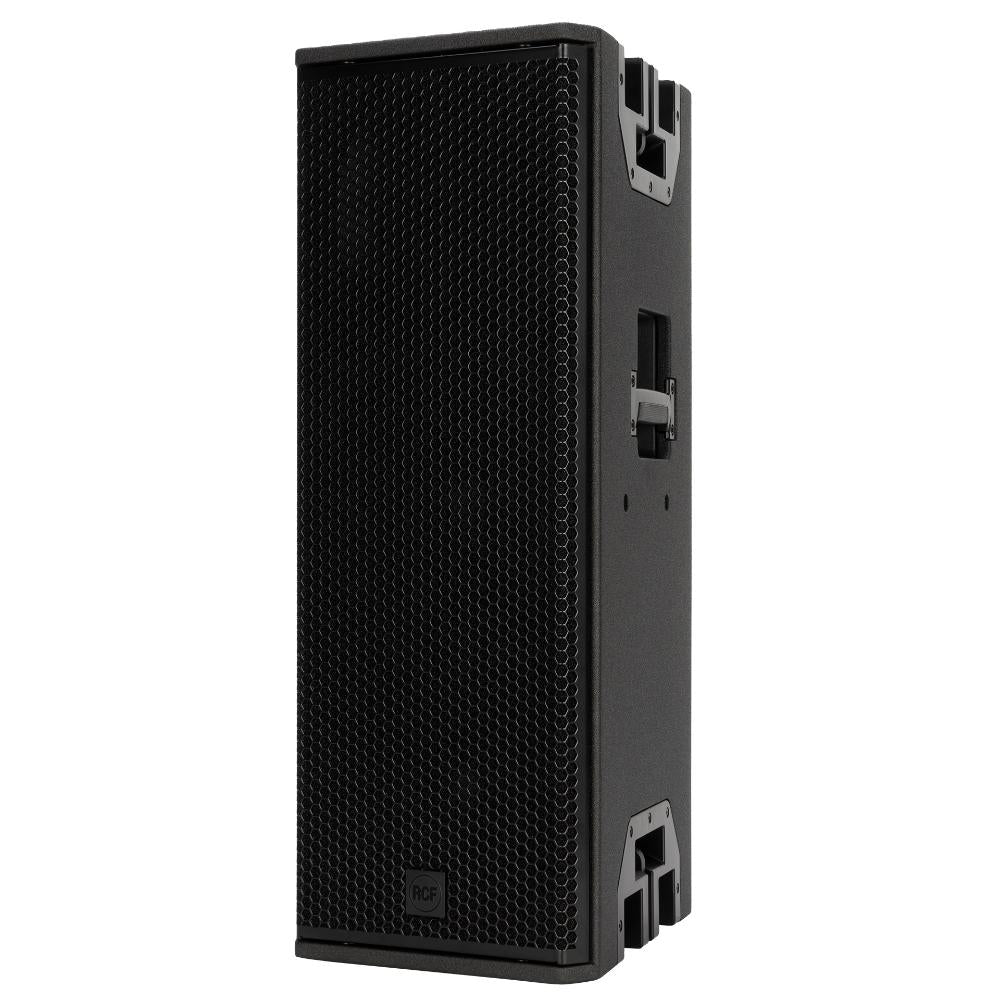

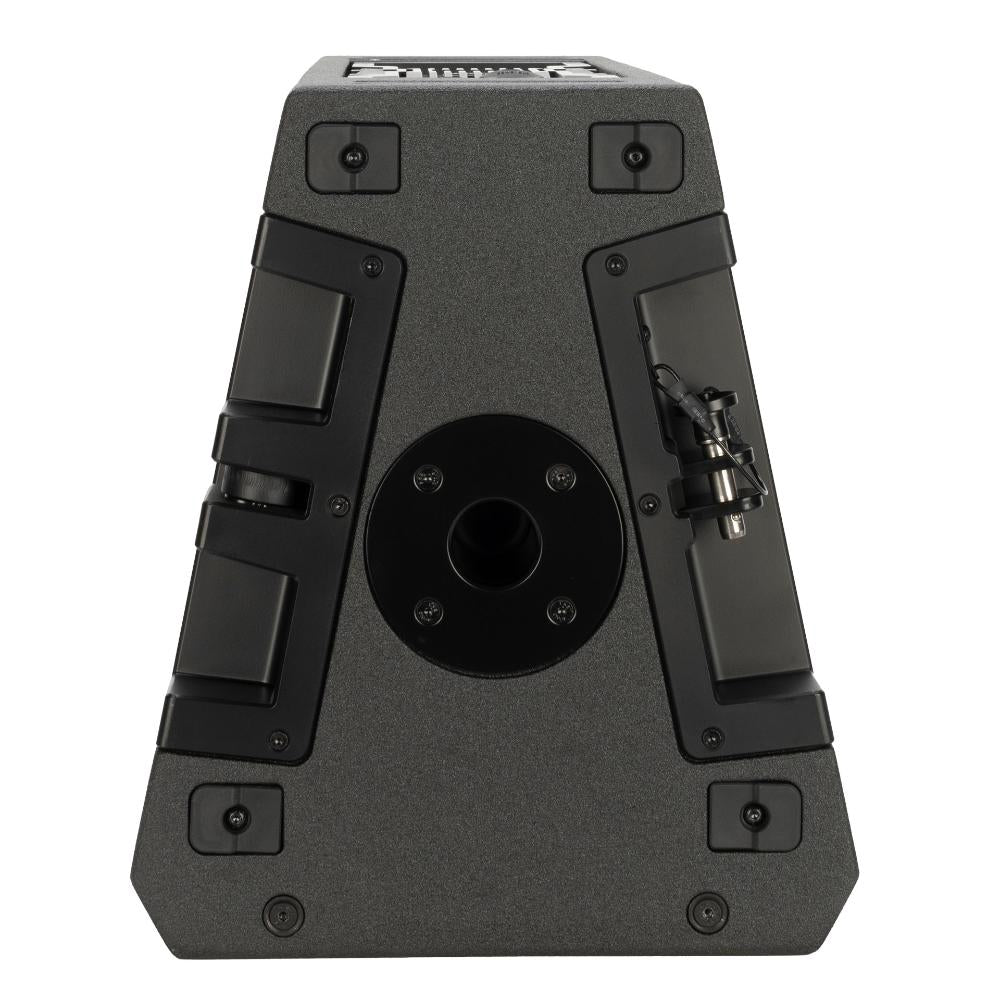

RCF KXW 4-A Wide Directivity Active Loudspeaker 3200W Dual 10” RDNet Black

The KXW 4-A delivers exceptional performance in a powerful, versatile format designed for professional installations and live sound reinforcement. With a maximum SPL of 134 dB and a rotatable 100° x 50° dispersion, it provides wide, precise coverage and consistent sound clarity across any venue. It features a pair of 10” neodymium woofers with 3” voice coils and a high-output neodymium compression driver with a 4” titanium dome, all housed in a robust Baltic birch cabinet. The built-in 3200W Class-D bi-amplification system with onboard DSP ensures efficient, high-definition performance, while RDNet integration enables remote monitoring and control. With flexible mounting options including pole, flown, or stacked configurations, the KXW 4-A is an ideal solution for demanding pro audio environments.

Features:
134 dB max SPL
Rotatable 100° x 50° horn

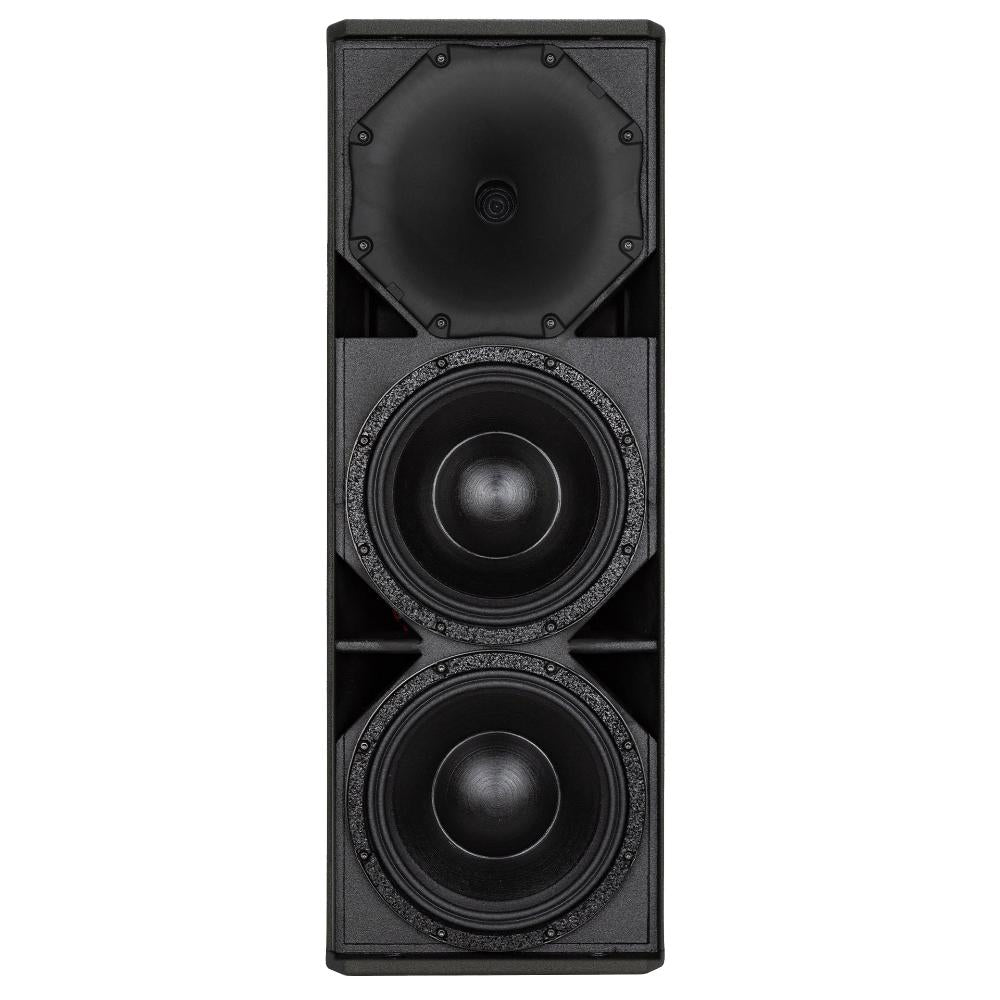

2 x 10” neodymium woofers with 3” voice coils
1.4” neodymium compression driver with 4” titanium dome
Integrated 3200W peak Class-D amplifier (2000W LF + 1200W HF)
FiRPHASE and BMC DSP processing
Onboard RDNet control and 8 user-selectable presets
Fast Limiter and thermal/RMS protection
powerCON TRUE1 TOP input/output
Array-compatible rigging and advanced mounting hardware
Durable Baltic birch cabinet with steel grille and acoustic cloth
Black finish

Specifications:
Frequency Response: 45 Hz – 20 kHz
Max SPL @ 1m: 134 dB
Horizontal Coverage: 100°
Vertical Coverage: 50°
Compression Driver: 1 x 1.4” neo, 4.0” voice coil
Woofers: 2 x 10” neo, 3.0” voice coil
Crossover Frequency: 900 Hz
Input Sensitivity: +4 dBu
Input/Output: XLR, RDNet Ethercon
Limiter: Fast Limiter
Protections: Thermal, RMS
Controls: Gain reduction, delay, processing, 8 selectable presets
RDNet: Onboard

Power Section:
Total Peak Power: 3200W
LF Peak Power: 2000W
HF Peak Power: 1200W
Cooling: Convection

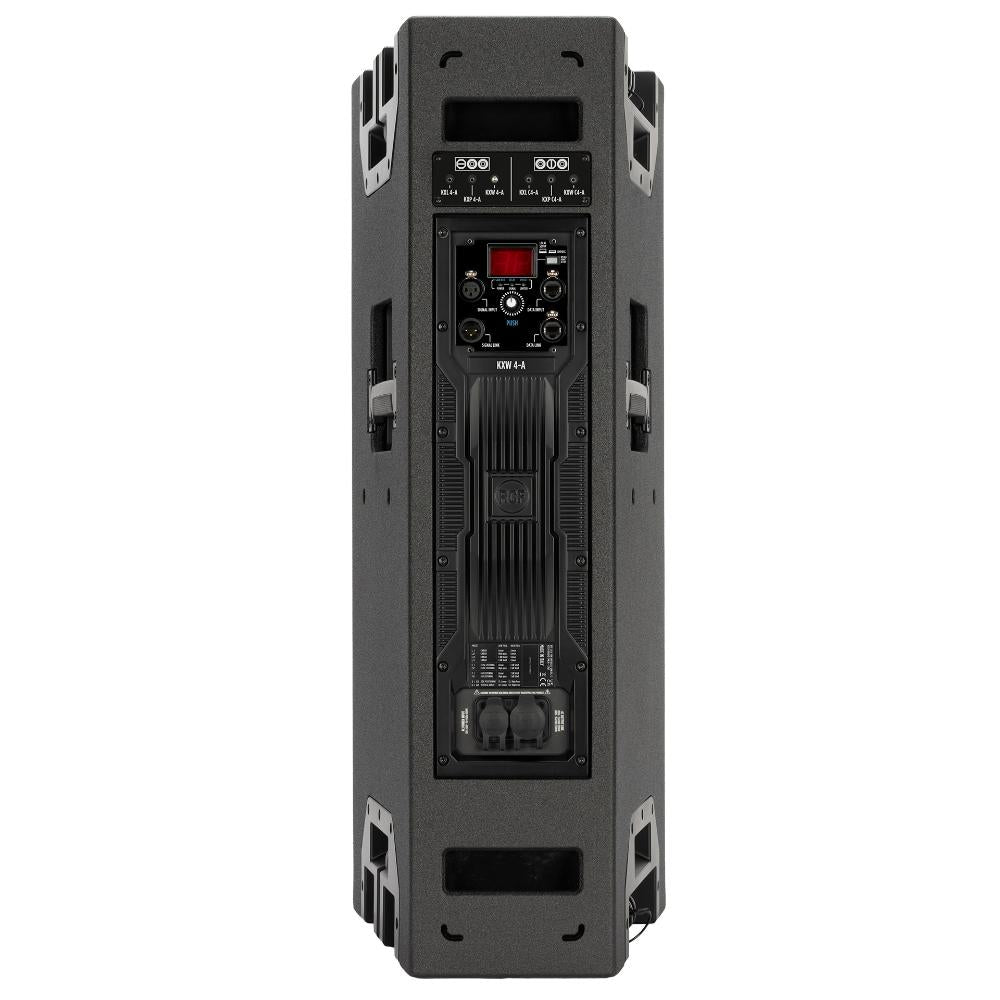

Power Connections: powerCON TRUE1 TOP IN/OUT

Physical Specifications:
Cabinet Material: Baltic birch plywood

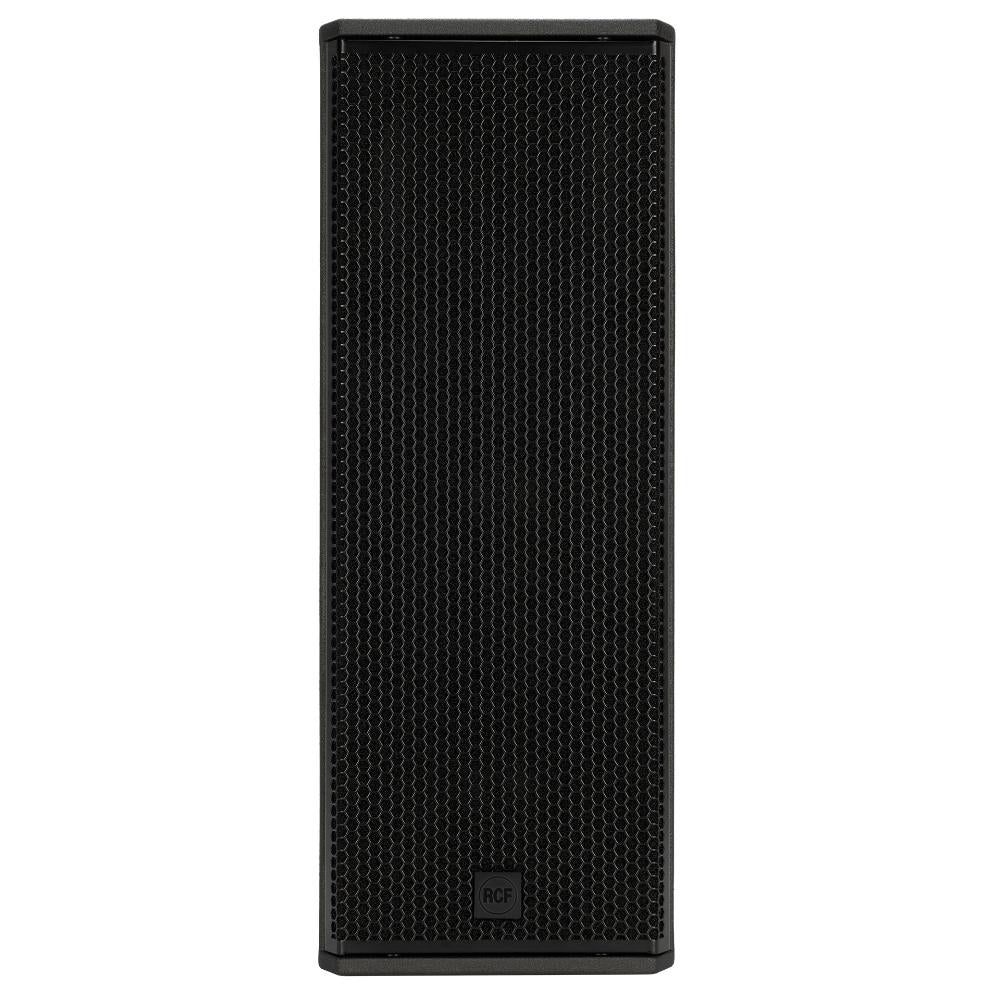

Grille: Steel with acoustic cloth

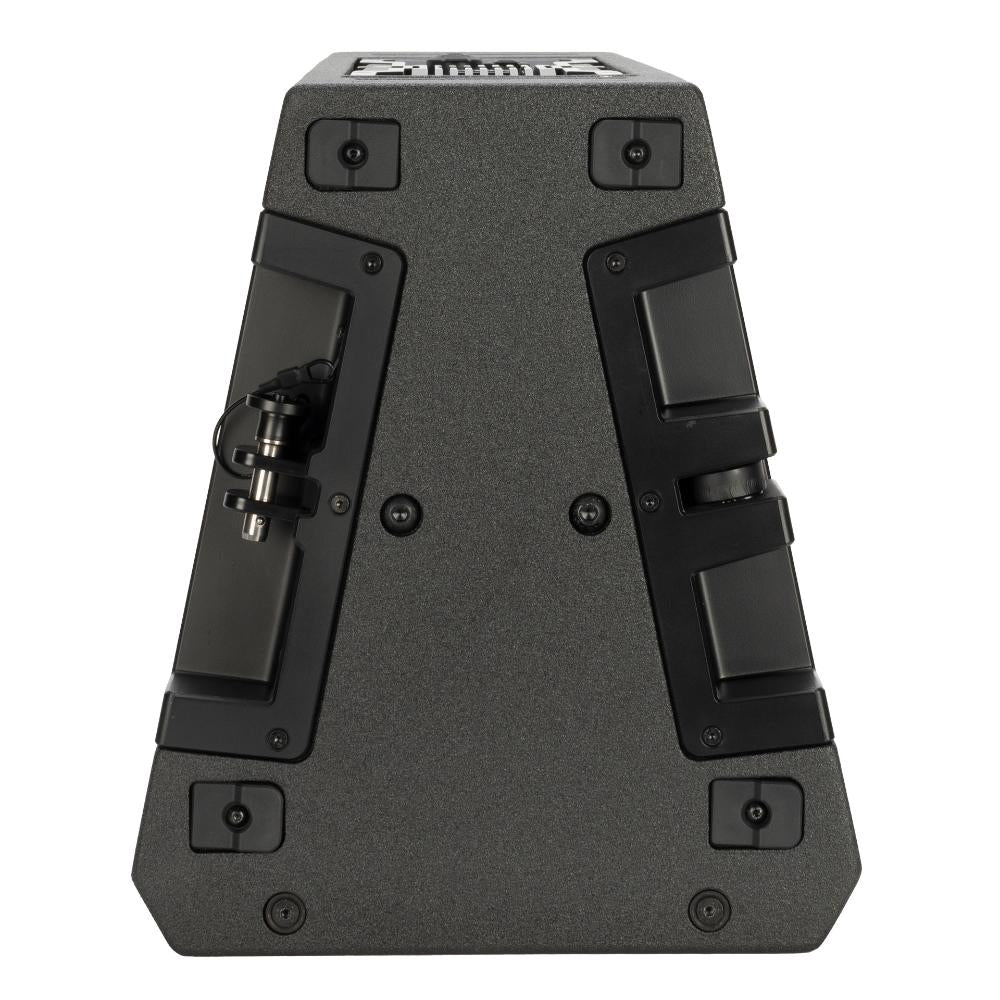

Mounting Options: Array fittings, 2x M10 (top), 2x M8 (each side), 35mm pole mount

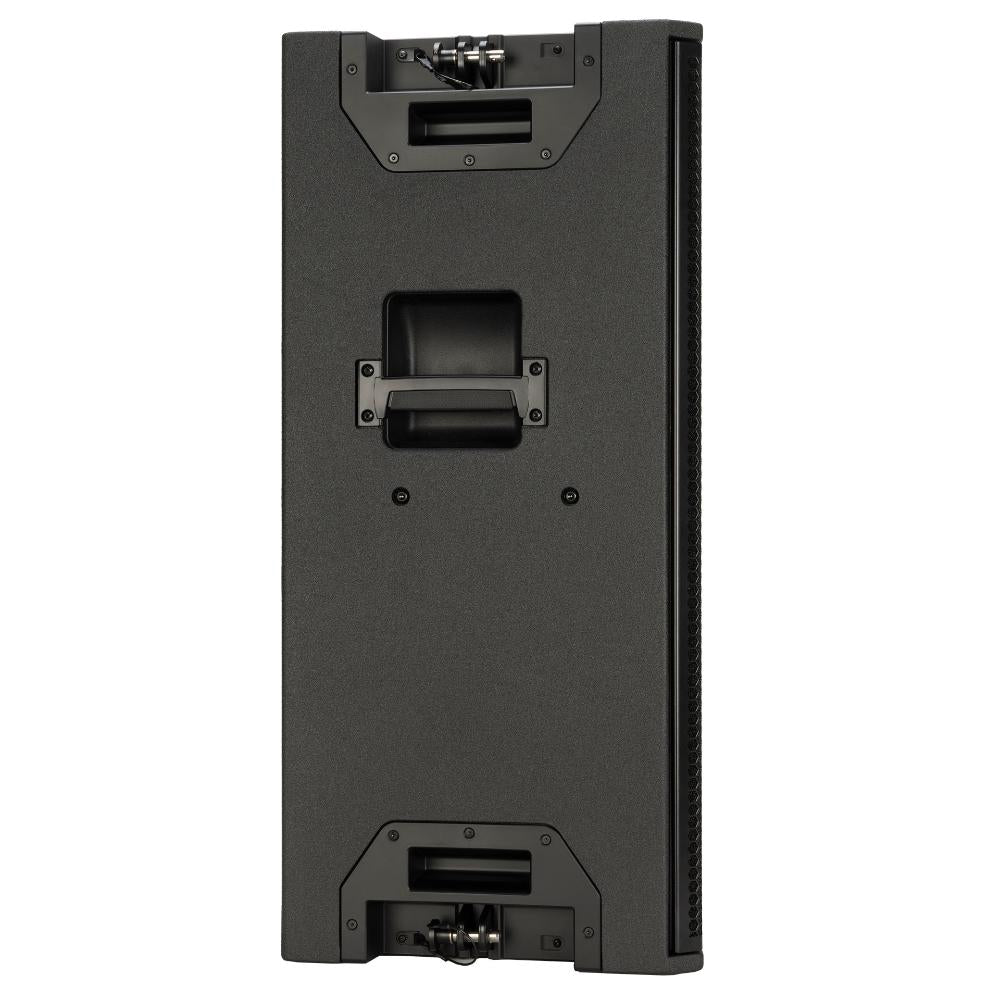

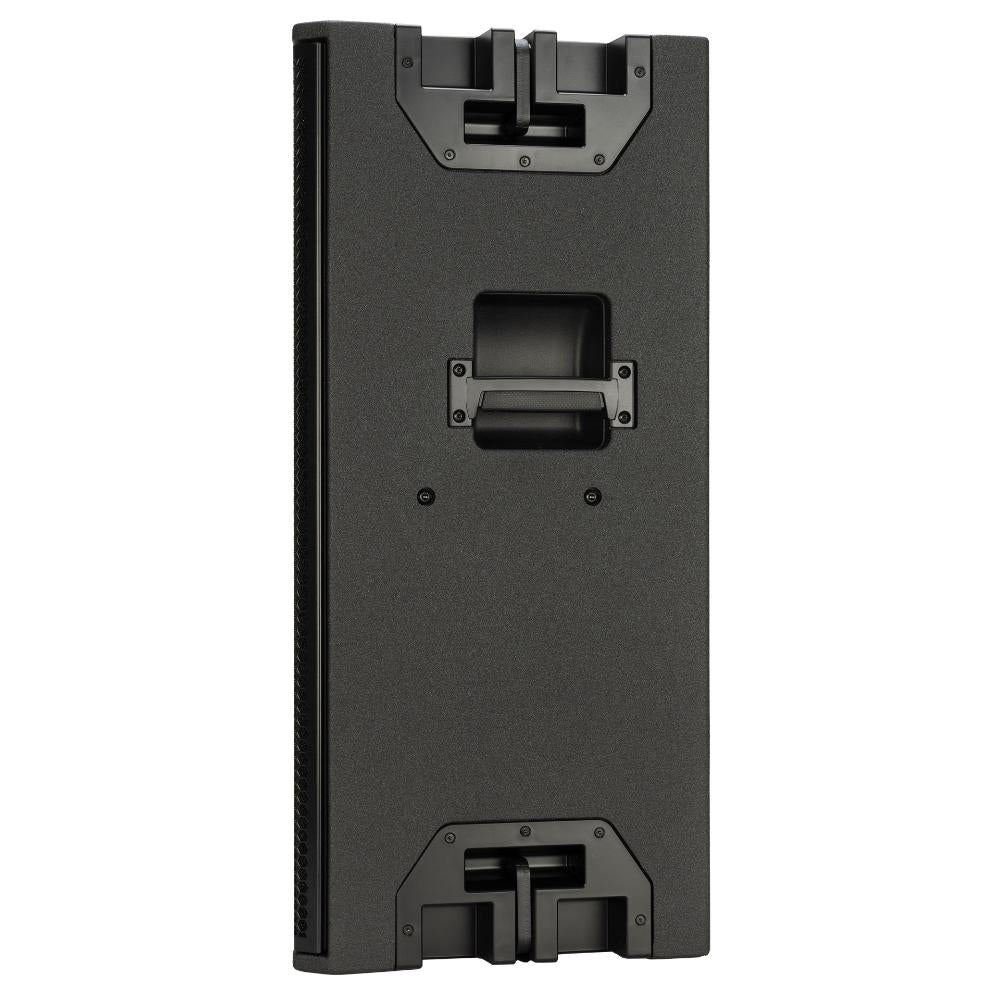

Handles: 2 side, 2 rear
Color: Black

Size / Weight:
Height: 825 mm
Width: 310 mm
Depth: 369 mm
Weight: 30.4 kg
