RCF PRO HF950 HORN 1.4" Throat Adaptor

Description

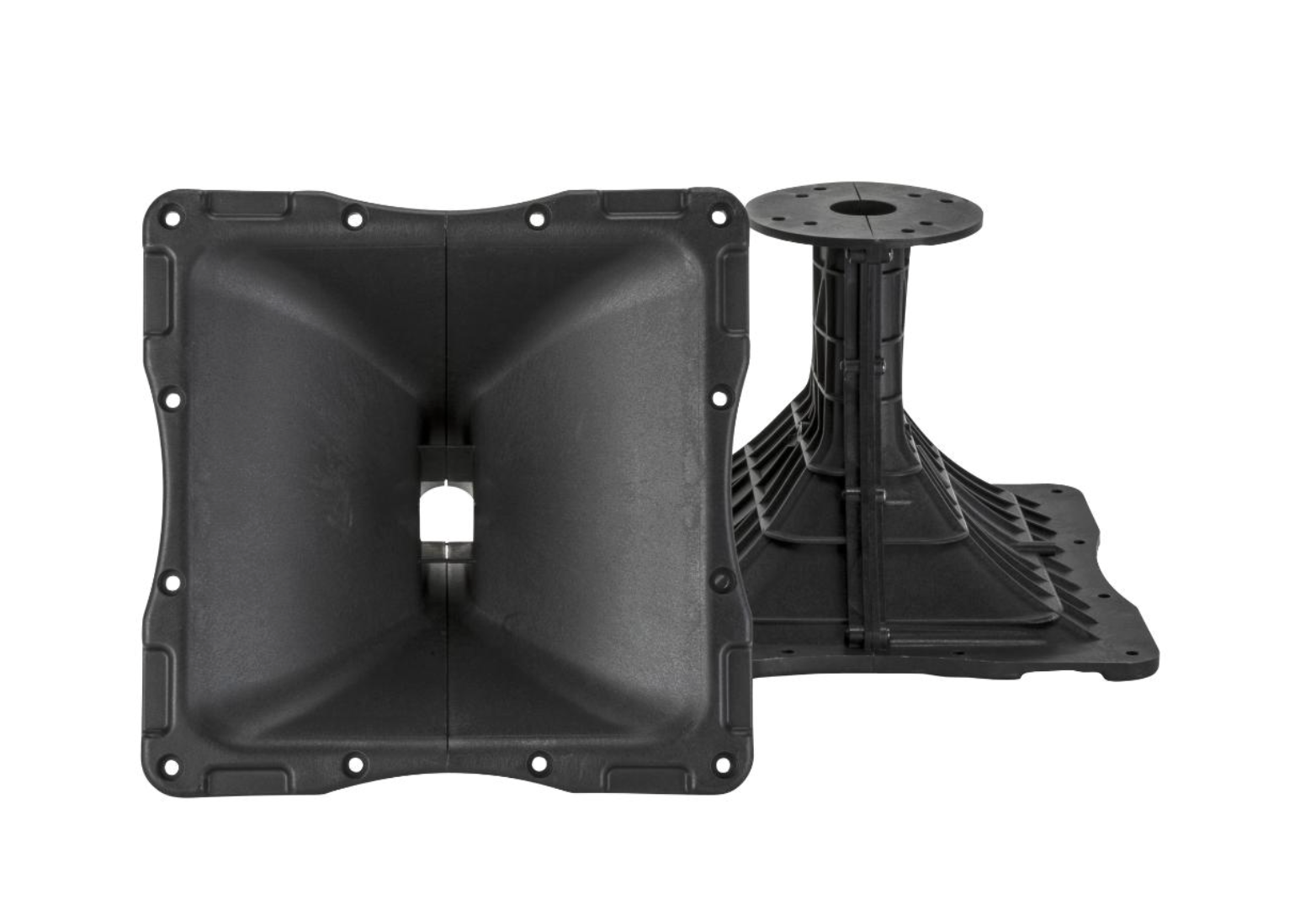

The RCF HF950 is a professional constant directivity horn designed for high-performance sound reinforcement systems where accurate coverage and controlled dispersion are essential. Engineered for use with compression drivers featuring 1-inch or 1.4-inch exits, it provides smooth and consistent sound projection, making it ideal for live sound, fixed installations, and stage monitoring applications.

The horn features a 1.4-inch throat adaptor with a throat diameter of 36 mm and offers a constant directivity coverage pattern of 90 degrees horizontally by 50 degrees vertically. This design ensures perfectly controlled dispersion across the listening area, delivering uniform sound coverage and improved intelligibility. The HF950 is capable of loading down to a cut-off frequency of 400 Hz, allowing seamless integration with midrange and low-frequency components in multi-way loudspeaker systems.

Constructed from durable structural polyurethane, the horn is lightweight yet highly resistant to vibration and environmental stress, ensuring long-term reliability in demanding professional environments. It is CE compliant and designed for straightforward mounting, with four 7 mm mounting holes spaced at 101 mm interaxes.

In terms of physical dimensions, the horn measures 300 mm in overall height and width, with a depth of 208 mm. The baffle cut-out dimensions are 260 mm by 260 mm, allowing easy integration into speaker enclosures. The net height is 221 mm, the diameter is 270 mm, and the unit weighs approximately 1.17 kg, making it easy to handle and install while maintaining robust structural integrity.
