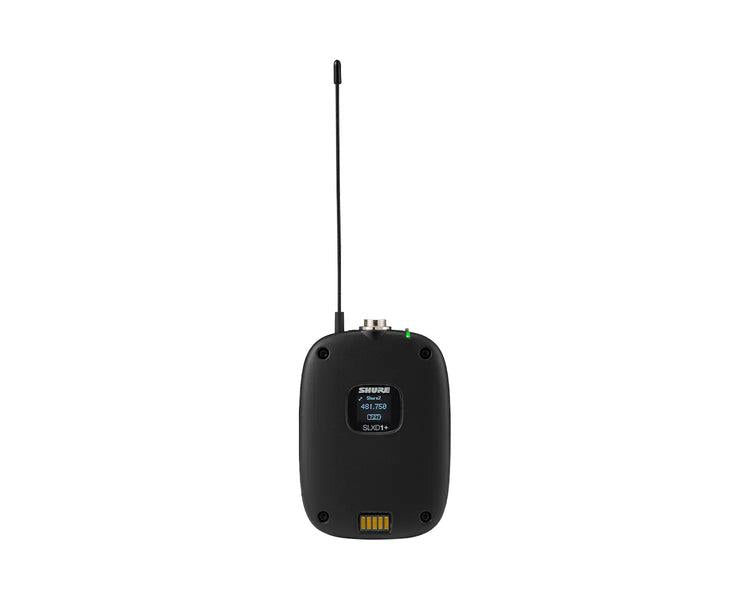

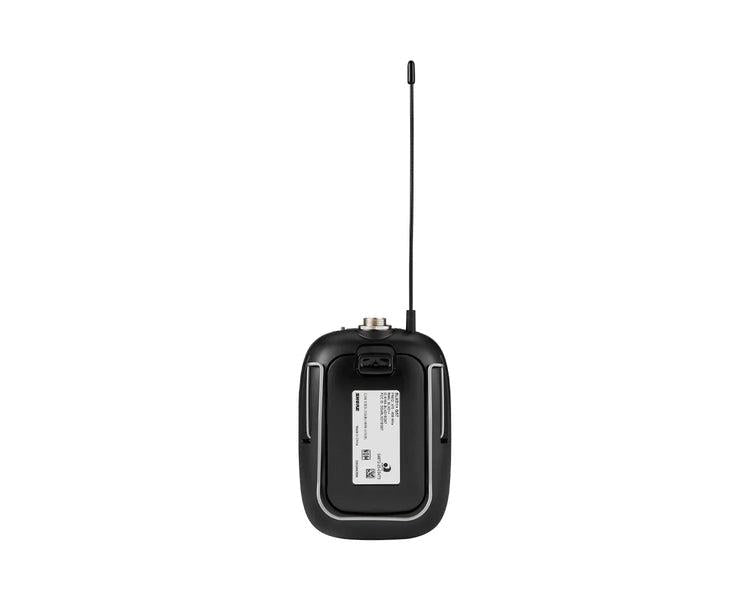

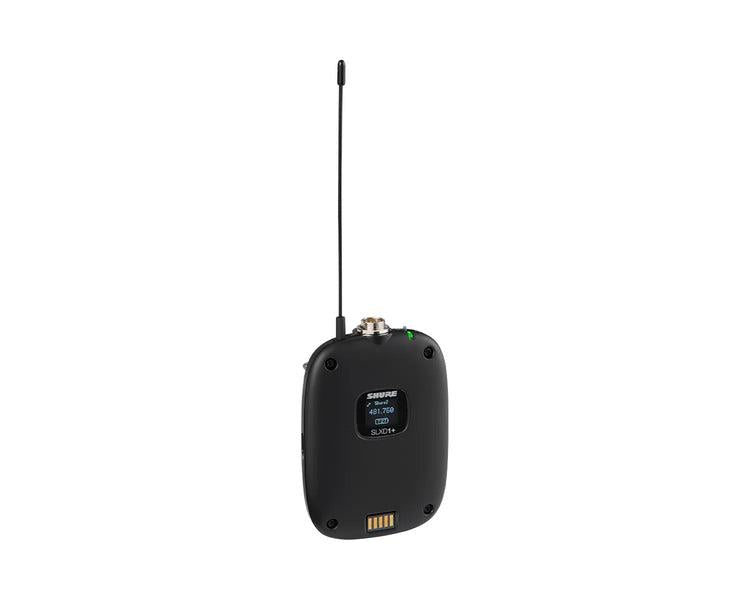

Shure SLXD1+ Wireless Bodypack Transmitter K55 606-694 MHz CH38

Description

The Shure SLXD1+ Wireless Bodypack Transmitter delivers professional digital wireless performance for live performances, presentations, theatre productions and conferences. Designed for use with compatible Shure SLX-D+ wireless receivers, it provides transparent 24-bit digital audio with over 118 dB dynamic range, ensuring clear and reliable sound transmission.

Featuring ShowLink Ease technology, the SLXD1+ allows remote transmitter management, automatic frequency changes and wireless firmware updates through a compatible receiver. Its wide tuning capability helps maintain stable RF performance in demanding environments, while Shure Wireless Workbench and the WWB Mobile app provide convenient system monitoring and configuration.

The lightweight SLXD1+ features a durable PC/ABS housing and a TA4M input for compatible microphones and instruments. AES-256 encryption provides secure wireless transmission, while up to 8 hours of operation is available using two AA batteries or an optional Shure SB903 rechargeable battery. The transmitter is also compatible with existing SLX-D systems, although some advanced features may be unavailable.

Features

• Professional digital wireless bodypack transmitter

• K55 frequency band (606–694 MHz)

• Transparent 24-bit digital audio with over 118 dB dynamic range

• ShowLink Ease technology for remote transmitter management

• Automatic frequency changes to help avoid RF interference

• Wide RF tuning capability with compatible SLX-D+ receivers

• Remote frequency, power, control lock and firmware management

• Shure Wireless Workbench and WWB Mobile app compatibility

• AES-256 encryption for secure wireless transmission

• Up to 100 metres operating range with compatible receivers

• Up to 8 hours of operation using AA or optional rechargeable batteries

• TA4M connector for compatible microphones and instruments

• Lightweight, ergonomic PC/ABS construction

• Compatible with SLX-D systems with certain feature limitations

Specifications

Manufacturer : Shure

Model : SLXD1+

Product Type : Digital Wireless Bodypack Transmitter

Frequency Band : K55 (606–694 MHz)

Digital Audio Resolution : 24-bit

System Audio Frequency Response : 20 Hz – 20 kHz (+1, −2 dB)

System Audio Dynamic Range : 118 dB

System Audio Latency : 2.8 ms

System Total Harmonic Distortion : Less than 0.02%

RF Working Range : Up to 100 m with Compatible Receiver

RF Output Power : 1 mW / 10 mW

RF Antenna : 1/4 Wave

RF Modulation : Shure Proprietary Digital

Occupied Bandwidth : Less than 200 kHz

Encryption : AES-256

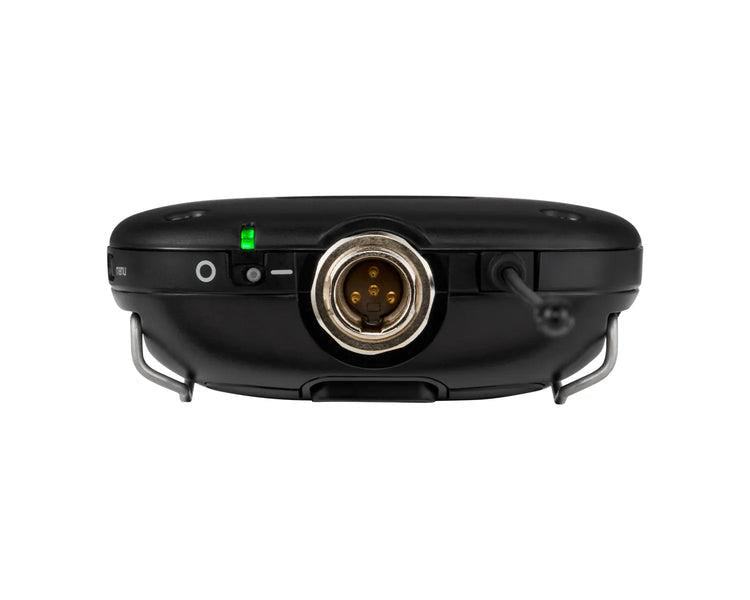

Audio Input Connector : 4-Pin Mini Connector (TA4M)

Audio Input Configuration : Unbalanced

Audio Input Impedance : 1 MΩ

Maximum Audio Input Level : 8.2 dBV

Preamplifier Equivalent Input Noise : −118 dBV

System High-Pass Filter : 160 Hz, −12 dB/octave (Disabled by Default)

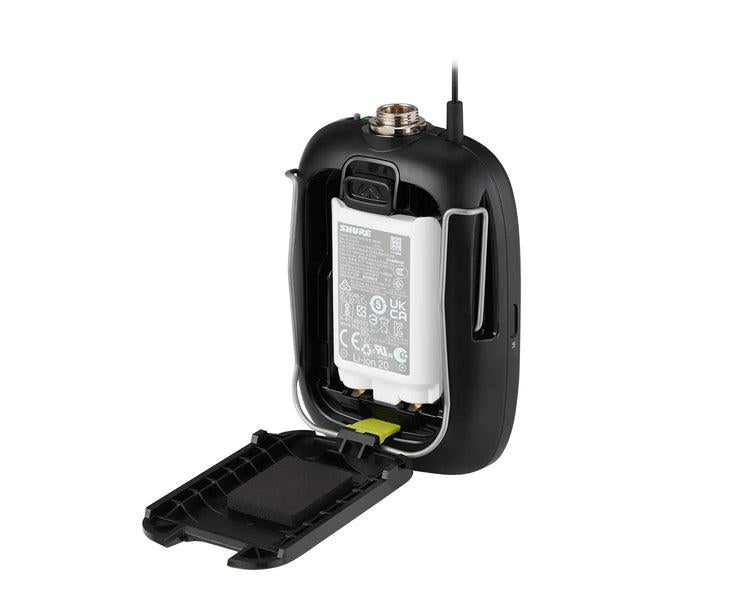

Battery Type : 2 x AA or Optional Shure SB903 Li-ion Rechargeable Battery

Battery Life : Up to 8 Hours

Dimensions : 98 x 68 x 25.5 mm (H x W x D)

Weight : 89 g

Housing : PC/ABS Plastic

Operating Temperature : −18°C to +50°C

Storage Temperature : −29°C to +74°C

Compatibility : Shure SLX-D+ and SLX-D Systems (Feature Limitations Apply)

In the Box

1 x Shure SLXD1+ Wireless Bodypack Transmitter

2 x AA Batteries
