Shure SSLXD14D+ DUAL Wireless Bodypack System K55 CH3

Description

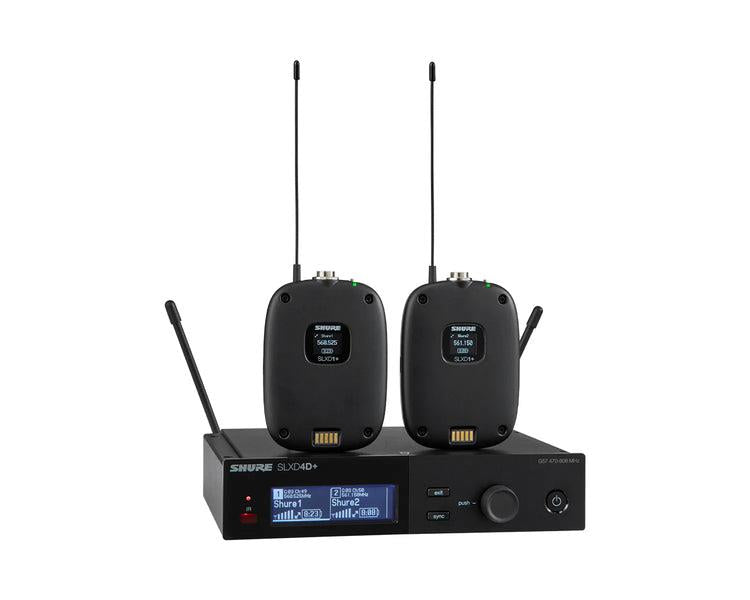

The Shure SLXD14D+ Dual Wireless Bodypack System delivers professional digital wireless performance for live events, presentations, theatre productions and installed sound applications. Featuring the dual-channel SLXD4D+ receiver and two SLXD1+ bodypack transmitters, this system provides transparent 24-bit digital audio with over 118 dB dynamic range for clear, reliable wireless transmission.

Designed for demanding RF environments, the SLX-D+ system features ShowLink Ease technology, allowing remote transmitter control and automatic frequency management when interference is detected. With wide tuning capabilities, automatic setup and support for multiple simultaneous systems, it offers dependable wireless performance for professional engineers and less experienced operators alike.

The SLXD14D+ also provides convenient monitoring and configuration through Shure Wireless Workbench software or the WWB Mobile app via Wi-Fi or Bluetooth. Built-in digital feedback reduction and AES-256 encryption provide additional reliability and security, while each bodypack transmitter offers up to 8 hours of operation using AA batteries or optional Shure SB903 rechargeable batteries.

Features

• Dual-channel digital wireless system with two SLXD1+ bodypack transmitters

• K55 frequency band (606–694 MHz)

• Transparent 24-bit digital audio with over 118 dB dynamic range

• ShowLink Ease technology for remote transmitter management

• Automatic frequency switching to help avoid RF interference

• Wide RF tuning capability for flexible frequency coordination

• Supports up to 11 simultaneous systems in 6 MHz TV bands or 14 in 8 MHz bands

• Shure Digital Feedback Reducer technology

• AES-256 encryption for secure wireless transmission

• Wireless Workbench and WWB Mobile app compatibility

• Remote monitoring and configuration via Wi-Fi or Bluetooth

• Up to 8 hours of bodypack operation using AA or optional rechargeable batteries

• Compact half-rack dual-channel receiver

• Rackmount kit, antennas and accessories included

Specifications

Manufacturer : Shure

Model : SLXD14D+

System Type : Dual-channel digital wireless bodypack system

Frequency Band : K55 (606–694 MHz)

Receiver : SLXD4D+ Dual-Channel Receiver

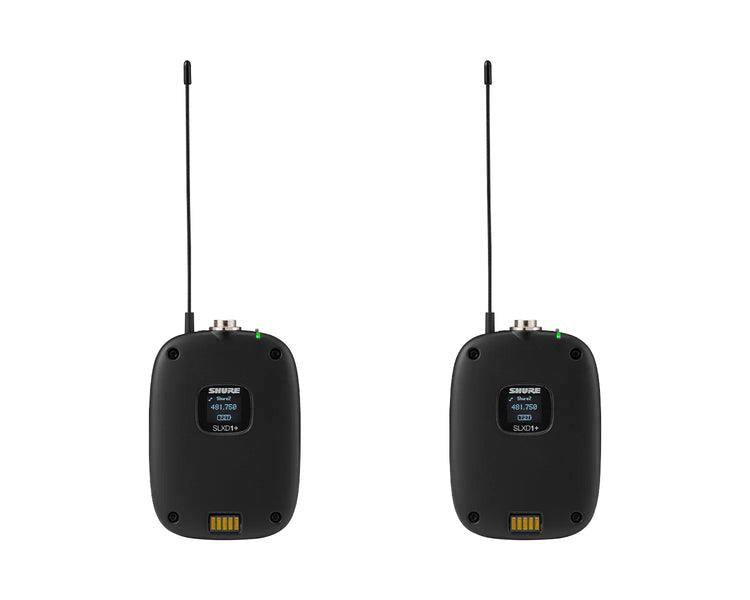

Transmitters : 2 x SLXD1+ Bodypack Transmitters

Digital Audio Resolution : 24-bit

Audio Frequency Response : 20 Hz – 20 kHz (+1, −2 dB)

Audio Dynamic Range : 118 dB

Audio Latency : 2.8 ms

Total Harmonic Distortion : Less than 0.02%

RF Working Range : Up to 100 m

RF Sensitivity : −97 dBm at 10⁻⁵ BER

Image Rejection : Greater than 85 dB typical

Simultaneous Systems : Up to 11 in 6 MHz TV bands / 14 in 8 MHz TV bands

Encryption : AES-256

High-Pass Filter : 160 Hz, −12 dB/octave (disabled by default)

Microphone Offset Range : 0 to 21 dB in 3 dB steps

Transmitter Battery Type : 2 x AA or optional Shure SB903 Li-ion rechargeable battery

Transmitter Battery Life : Up to 8 hours

Receiver Format : Half-rack, dual-channel

Operating Temperature : −18°C to +50°C

Storage Temperature : −29°C to +74°C

In the Box

1 x SLXD4D+ Dual-Channel Receiver

2 x SLXD1+ Bodypack Transmitters

2 x 1/4 Wave Antennas

1 x Rackmount Kit

4 x AA Batteries

1 x Power Supply

2 x Carrying Pouches
