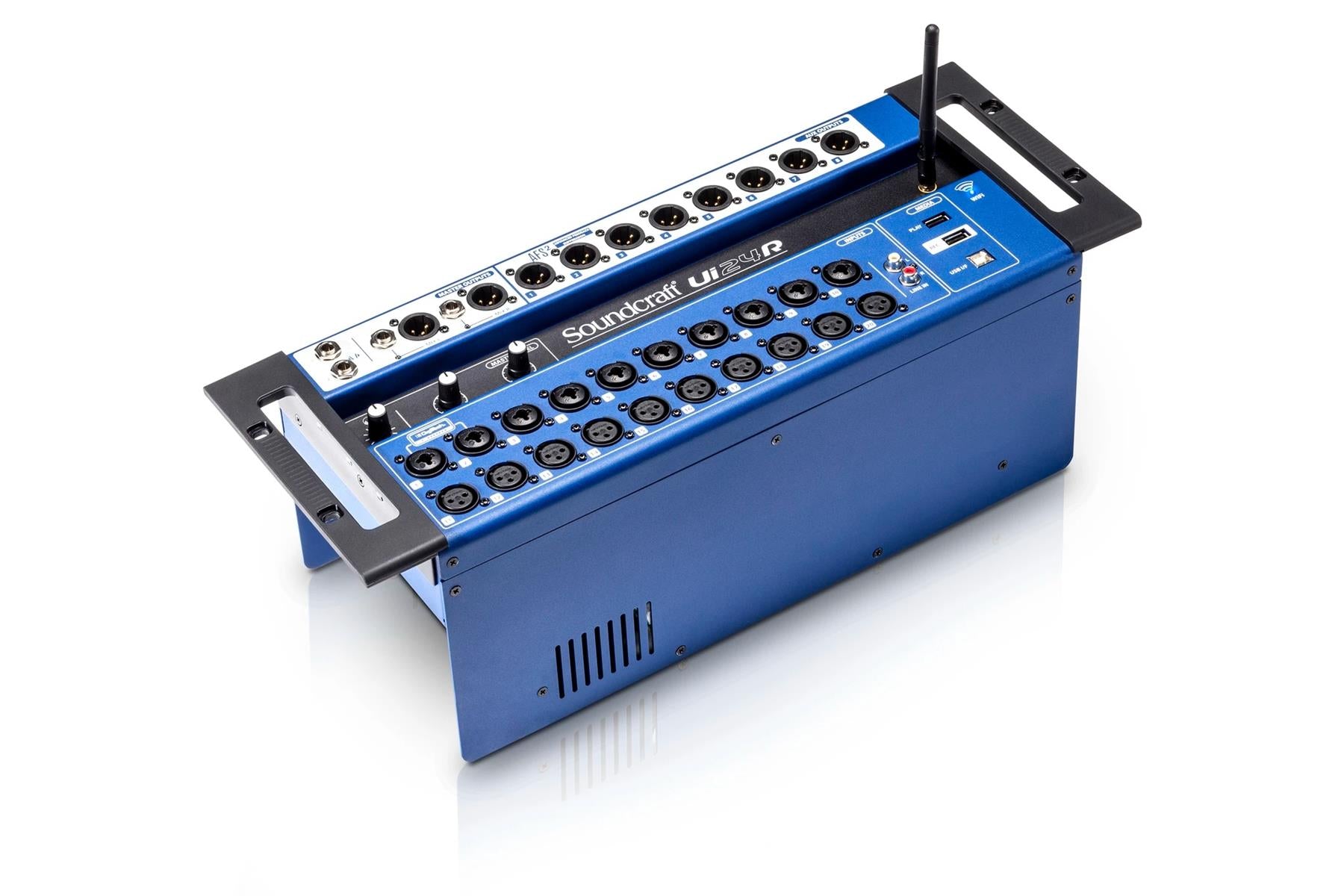

Soundcraft Ui24R Digital Mixer

Description

The Soundcraft Ui24R is a professional 24-channel digital mixer and USB multi-track recording system designed for live sound, studio recording, rehearsals, and installed audio applications. Combining powerful wireless control, flexible I/O, high-quality HARMAN processing, and compact rackmount design, the Ui24R delivers advanced mixing functionality without the need for a traditional console surface. Built-in dual-band Wi-Fi allows complete wireless operation from tablets, smartphones, PCs, and Macs, with support for up to 10 simultaneous control devices for engineers and performers.

Equipped with 20 Studer-designed preamps, the Ui24R provides rich, detailed audio quality suitable for both live performance and recording environments. Integrated HARMAN processing includes Lexicon reverb, delay, and chorus effects, dbx compression and AFS2 automatic feedback suppression, plus DigiTech guitar amp modelling for enhanced performance flexibility. Extensive input processing includes 4-band parametric EQ, high-pass filtering, compression, de-essing, and noise gates, while all outputs feature graphic EQ, compression, feedback suppression, and real-time frequency analysis.

The Ui24R also functions as a comprehensive recording interface, supporting simultaneous multi-track recording of all inputs directly to USB storage and connected computers. With browser-based control across iOS, Android, Windows, Mac OS, and Linux platforms, users can manage mixing, monitoring, and recording without requiring additional software installations. Its compact 4U rackmount format makes it ideal for portable rigs, venue installations, and touring applications where space-saving and wireless flexibility are essential.

Features

24-channel digital mixer and multi-track recording system
Wireless control via built-in dual-band Wi-Fi
Supports up to 10 simultaneous control devices
Browser-based control with no additional apps required
Compatible with iOS, Android, Windows, Mac OS, and Linux
20 Studer-designed professional microphone preamps
Lexicon reverb, delay, and chorus effects processing
dbx compression and AFS2 automatic feedback suppression
2 channels of DigiTech guitar amp modelling
Dual-path multi-track recording to USB drive and connected Mac/PC
24 simultaneous input channels
10 combo XLR/TRS mic and line inputs
10 XLR microphone inputs
2 line-level inputs
2 digital USB playback channels
4-band parametric EQ on input channels
High-pass filter, compressor, de-esser, and noise gate on inputs
31-band graphic EQ, compressor, and noise gate on outputs
Real-time frequency analyser (RTA) on inputs and outputs
Compatible with Mac and PC DAWs
USB audio interface functionality for recording and playback
Compatible with Harman Connected PA ecosystem
Compact 4U rackmount chassis
Suitable for live sound, recording studios, venues, rehearsals, and touring

Specifications

Mixer type: 24-channel digital mixer and USB multi-track recorder
Control methods: Wireless browser-based control
Supported platforms: iOS, Android, Windows, Mac OS, Linux
Wireless connectivity: Integrated dual-band Wi-Fi
Simultaneous control devices: Up to 10
Microphone preamps: 20 x Studer-designed preamps
Combo inputs: 10 x XLR/TRS combo inputs
XLR inputs: 10 x XLR microphone inputs
Line inputs: 2 x line-level inputs
Digital playback channels: 2 x USB playback channels
Recording capability: Multi-track recording to USB drive and connected computer
USB interface: Multi-channel USB audio interface
Input processing: 4-band parametric EQ, HPF, compressor, de-esser, noise gate
Output processing: 31-band graphic EQ, compressor, noise gate, dbx AFS2
Effects processing: Lexicon reverb, delay, chorus
Guitar processing: DigiTech amp modelling
Analysis tools: Real-time frequency analyser on inputs and outputs
Rack size: 4U rackmount format
