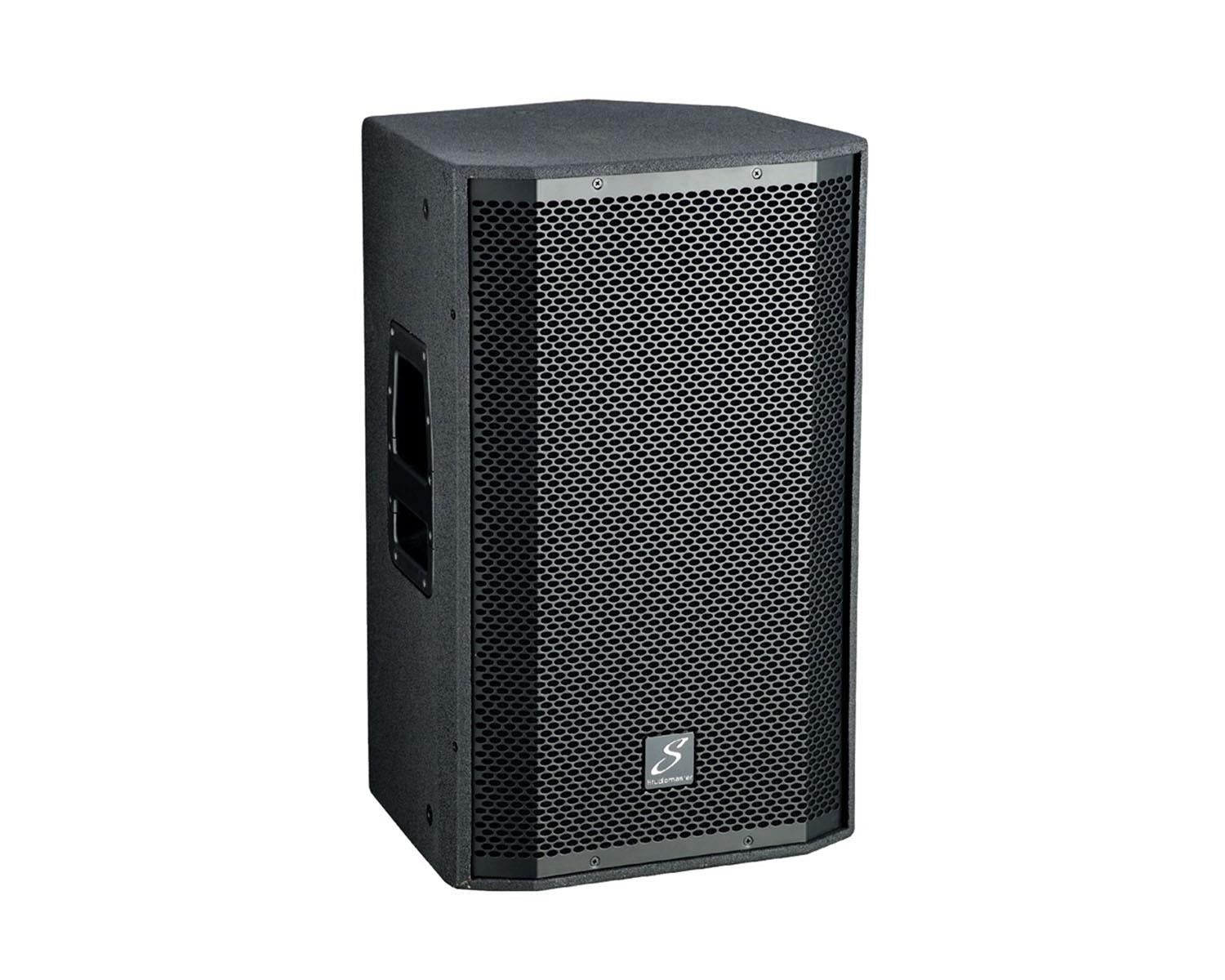

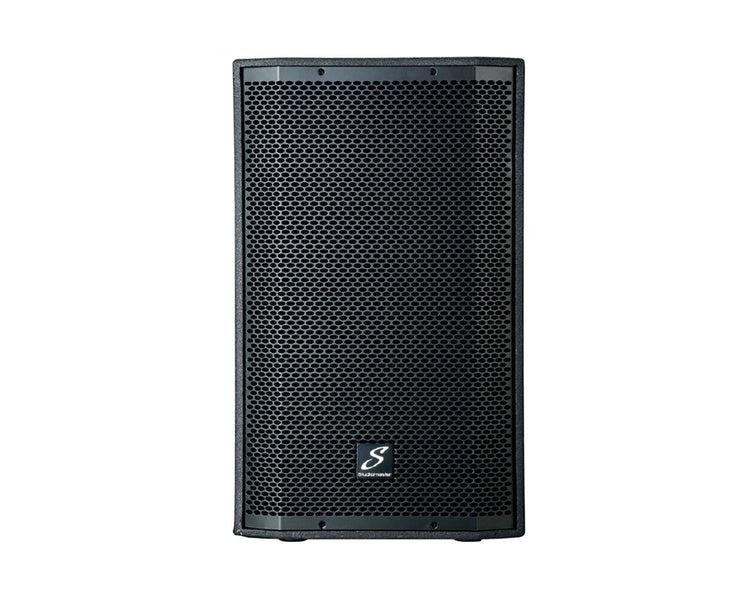

Studiomaster Venture 12AP Active Speaker 12" DSP 1600W

Description

The Venture 12AP is a compact and powerful active loudspeaker designed for professional sound reinforcement in both mobile and installed applications. Built with a durable 15 mm plywood cabinet, it delivers reliable performance with a smooth and balanced frequency response. Featuring a built-in amplifier and advanced 24-bit/48 kHz DSP processing, it offers flexible sound control with presets, EQ, and dynamics processing, allowing optimal performance in a wide range of environments.

Features

12-inch active 2-way loudspeaker with integrated amplification
400 W RMS output with up to 1600 W peak power
Built-in 24-bit/48 kHz DSP for precise sound control
4 preset modes for quick setup in different environments
Integrated EQ and dynamics processing
80° x 60° dispersion for controlled sound coverage
Durable 15 mm plywood cabinet construction
Hardwearing paint finish for touring and mobile use
35 mm top hat for stand mounting
Multiple M10 flying points for installation
Recessed carry handles for easy transport

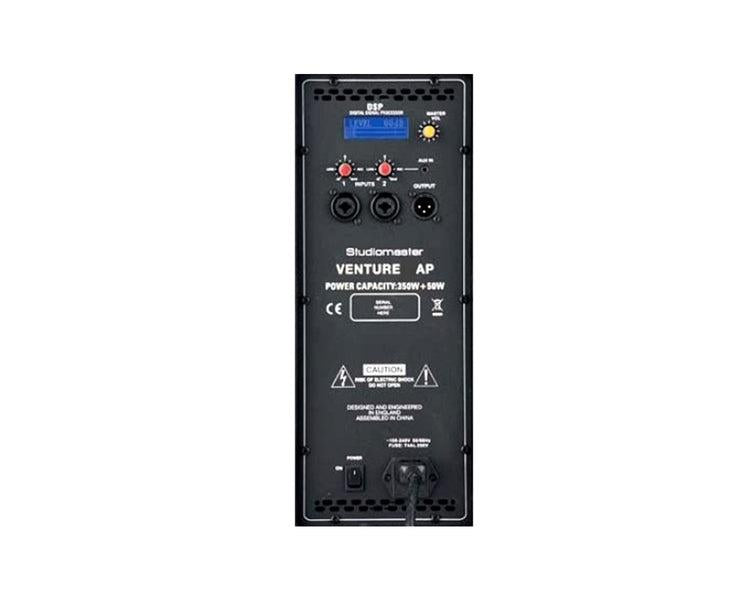

Combo XLR/jack inputs with XLR output for signal linking

Specifications

Power output: 400 W RMS (350 W LF + 50 W HF), 800 W program, 1600 W peak
Frequency response: 60 Hz – 18 kHz
Maximum SPL: 131 dB
Input sensitivity: 0 dBu
Crossover frequency: 2.5 kHz

Speaker Components

LF driver: 12" with 65 mm voice coil
HF driver: 1.35" with 34 mm voice coil
Dispersion: 80° x 60°

Connectivity

Inputs: 2 x combo XLR/jack
Output: 1 x XLR

Construction

Cabinet: 15 mm plywood
Finish: Hardwearing paint
Mounting: 35 mm pole mount, M10 rigging points
Handles: Recessed carry handles

Dimensions and Weight

Dimensions (W x H x D): 365 x 608 x 341 mm
Weight: 18 kg
