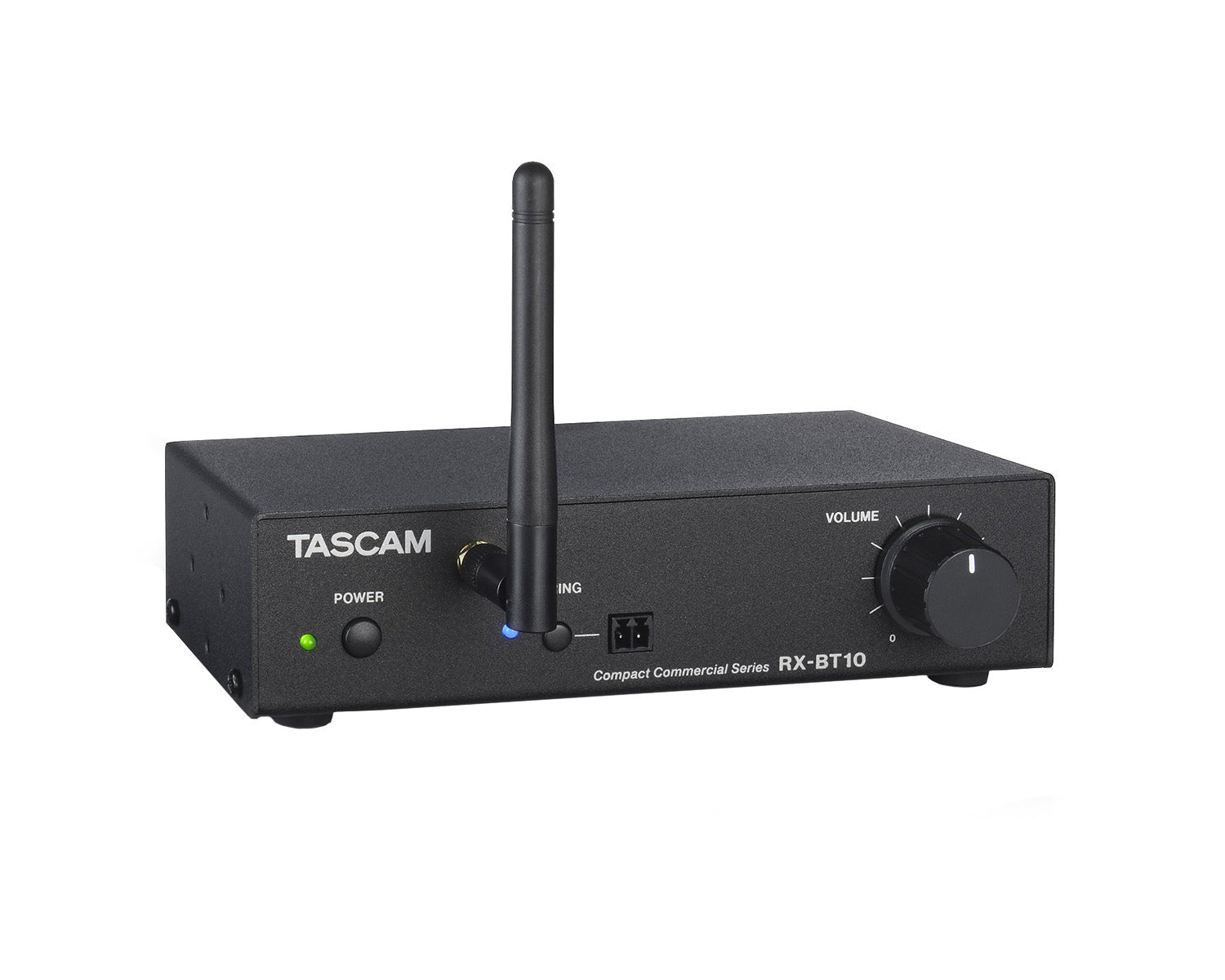

Tascam RX-BT10 – Professional Bluetooth 5.1 Audio Receiver XLR Output

The Tascam RX-BT10 is a compact, rugged Bluetooth audio receiver built for professional AV integration. Featuring Bluetooth 5.1 Class 1 technology, it provides a stable wireless connection over distances up to 100 metres (line-of-sight). Ideal for venues, commercial spaces, studios, and conference setups, it supports both balanced (XLR) and unbalanced (RCA) outputs, with stereo or mono selection via rear-panel switch. This versatile unit stores pairing information for up to 8 devices and allows three devices to remain connected simultaneously. A detachable antenna offers extended range, and an external remote pairing button (optional) can be connected for convenient access. The front panel includes an output level control, while the durable metal housing and included mounting brackets ensure secure installation in tight spaces. Whether mounted under a desk, on a wall, or rack-adapted with the optional AK-RS1 kit, the RX-BT10 delivers high-fidelity audio and seamless Bluetooth connectivity in any installation.

Key Features
Bluetooth 5.1 Class 1 with 100m range in ideal conditions

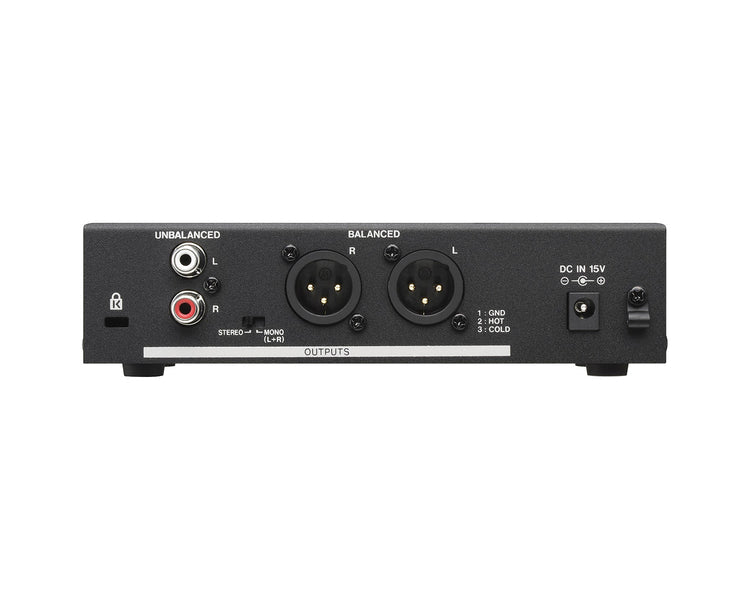

Balanced stereo XLR and unbalanced RCA outputs
Stereo/Mono switch on rear panel
Stores pairing for up to 8 devices
Connect up to 3 devices simultaneously

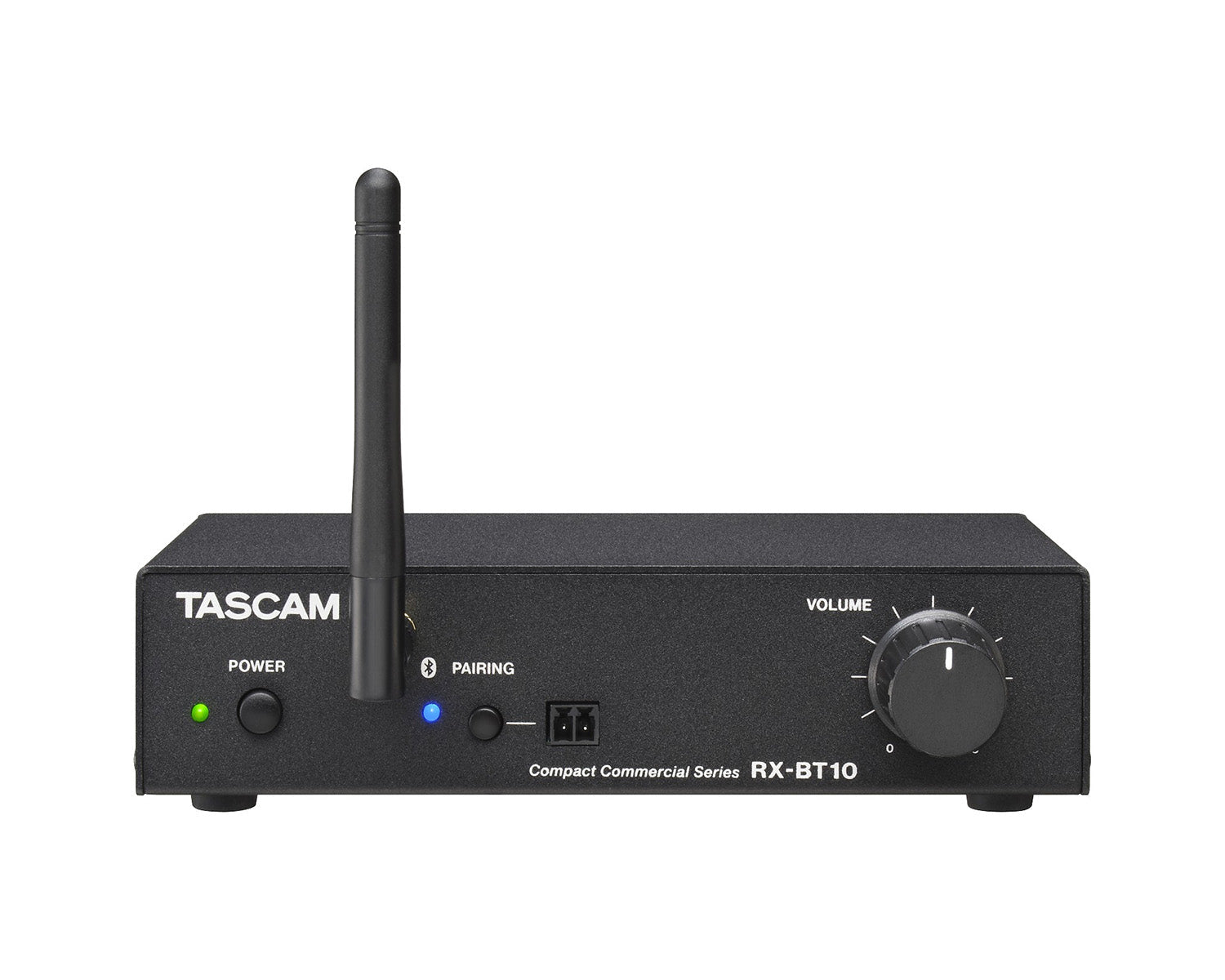

Front panel output level control
Detachable antenna with up to 20m extension capability
External remote pairing button compatible
Compact metal chassis with included mounting brackets
Compatible with AK-RS1 rack kit for dual mounting

Audio Performance
Frequency response: 20 Hz – 20 kHz (+0.5 dB / –1 dB)
Total Harmonic Distortion (THD+N): ≤0.04% at 1 kHz
Signal-to-noise ratio: ≥90 dB (A-weighted, 22 kHz LPF)
Channel separation: ≥100 dB

Output Specifications
Unbalanced RCA output: Max +6 dBV, Nominal −10 dBV, Impedance ≤100 Ω
Balanced XLR output: Max +14 dBu, Nominal −2 dBu, Impedance ≤200 Ω

Power and Environment
Power supply: 15 V DC (AC adapter included)
Input voltage: 100–240 V AC (50/60 Hz)
Power consumption: 1.7 W
Operating temperature: 0–40 °C
Operating humidity: 5–85% (non-condensing)

Dimensions and Weight
171 mm x 45 mm x 73 mm
Weight: 530 g
