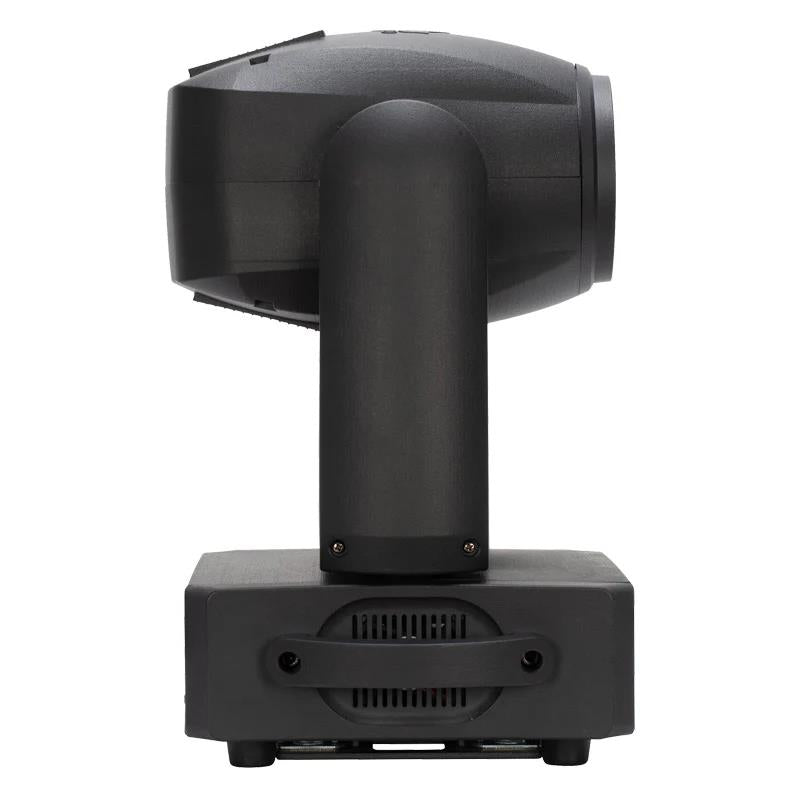

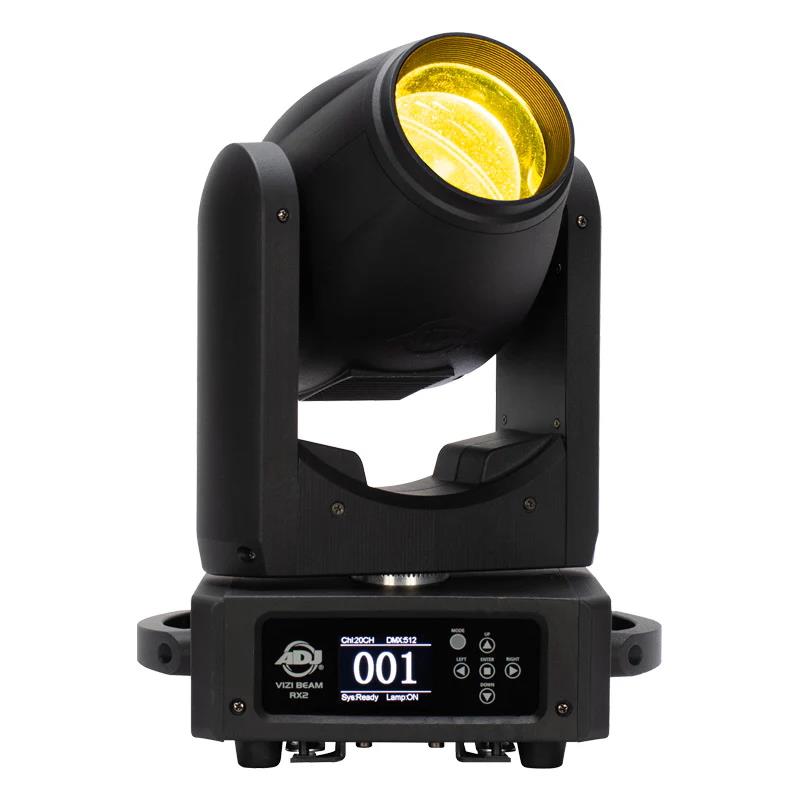

ADJ Vizi Beam RX2 Moving Head

Description

Elevate your lighting performance with the ADJ Lighting Vizi Beam RX2, a compact and quick moving head beam fixture designed for the modern lighting designer. Featuring a vigorous 100W Osram Sirius HRI discharge lamp with a 6,000-hour lifespan, this potent fixture delivers stunning visuals with a precise 2-degree beam angle, as well as, high speed 3-phase pan/tilt motors for maximum performance.

Unlock a wealth of features including on-board wireless DMX, two prism wheels (16-facet circular & 4-facet linear), a frost effect, motorized focus (with 16-bit fine focus), along with a 14-color dichroic wheel that includes CTO (3200K), CTB (9000k) & UV filters) and 15 static GOBOs + open (3 GOBOs are beam reducers).

Designed for convenience, it features outdoor-rated In/Out locking connections for power daisy-chaining, 5-pin In/Out DMX sockets and a colour LCD display with 4-button function menu. The Vizi Beam RX2 is a versatile and reliable lighting solution for any high-octane event.

OSRAM Sirius HRI 100W Discharge Lamp (6,000 hr.)
Colour temperature: 9000K (+/- 300K)

On-Board Wireless DMX
Motorized Focus + 16-Bit Fine Focus
2-Degree beam angle
Frost Filter (to create wash effect)
High Quality Glass Lens
2 Rotating Prisms
0-100% Smooth Dimming
Various Strobe Speeds
OTA, wireless, firmware updates
Fan cooled

14 Dichroic Colours + white (Includes CTO (3200K), CTB (9000K) & UV)
Indexable Colour Wheel (for Split Colours)

15 static GOBOs + open (3 GOBOs are beam reducers)
GOBO Shake Effect

2 Rotating prisms
16-Facet circular and 4 facet linear prisms

Protocols: DMX512 & RDM
Control Mode: DMX512 & Manual (On-board Controls)
Aria X2 Wireless Management / DMX System
2 DMX Channel Modes: 16/20 Channels
Colour LCD display with 4-button function menu
0-100% smooth dimming
Various strobe speeds

Pan: 540 Degrees (plus 16-bit fine pan)
Tilt: 270 degrees (plus 16-bit fine tilt)
3-Phase, High Speed, Pan/Tilt Motors

DMX Connections: 5-pin DMX In/Out (Data link max: 32 fixtures)

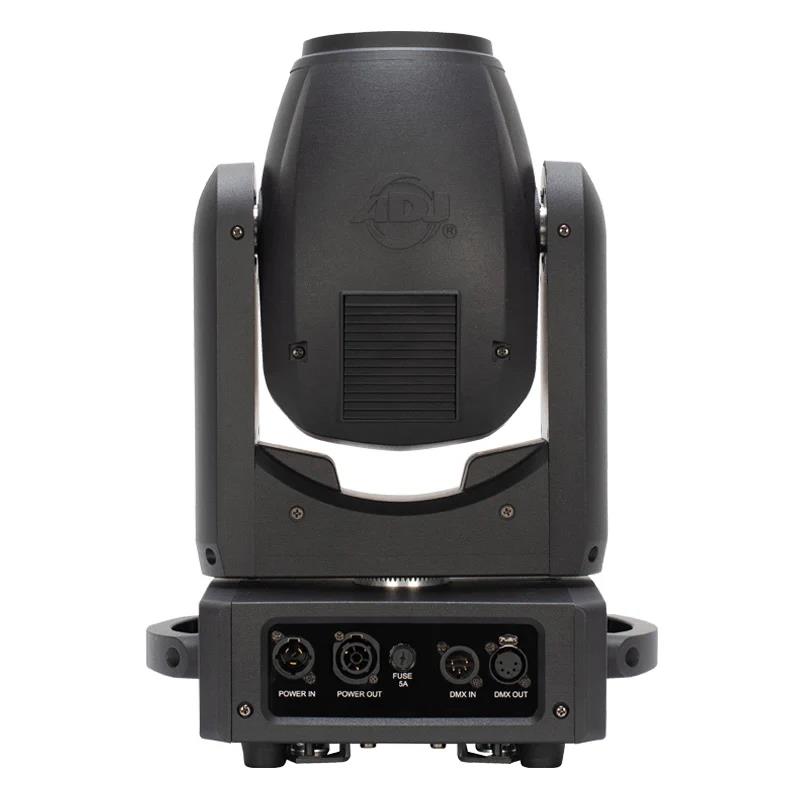

Power Connections: Outdoor locking In/Out connections to daisy chain power

Multi-voltage Operation: 100-240V, 50/60Hz
Max power consumption: 157W

Dimension: 230 x 304 x 416mm
Weight: 7.5 kg.

CE
cETLus (Pending)

WHAT’S INCLUDED:
2x Omega Brackets (107 Type - Also available as a spare part: 9900027829)
1x 2M, Outdoor Locking 14AWG Power Cord
