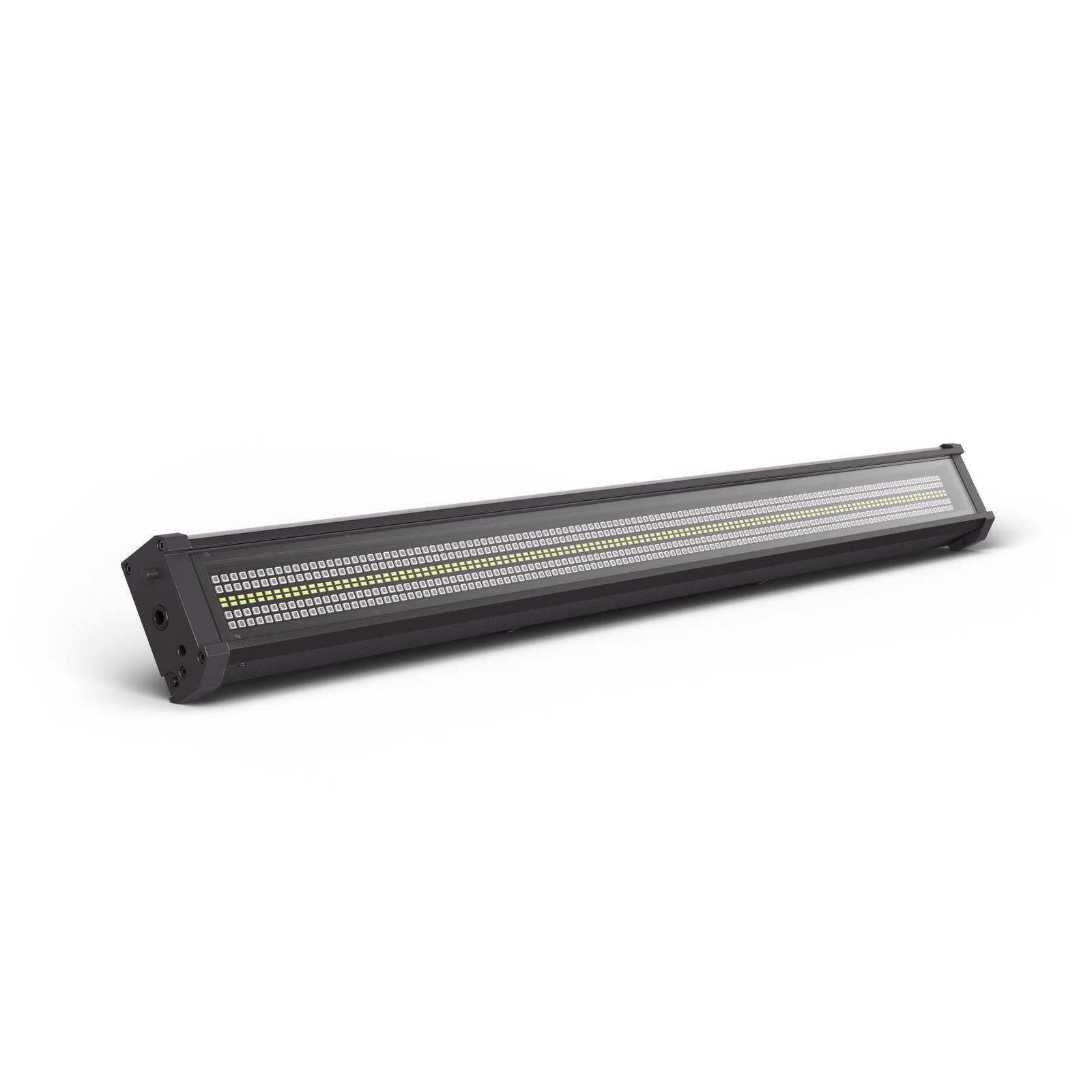

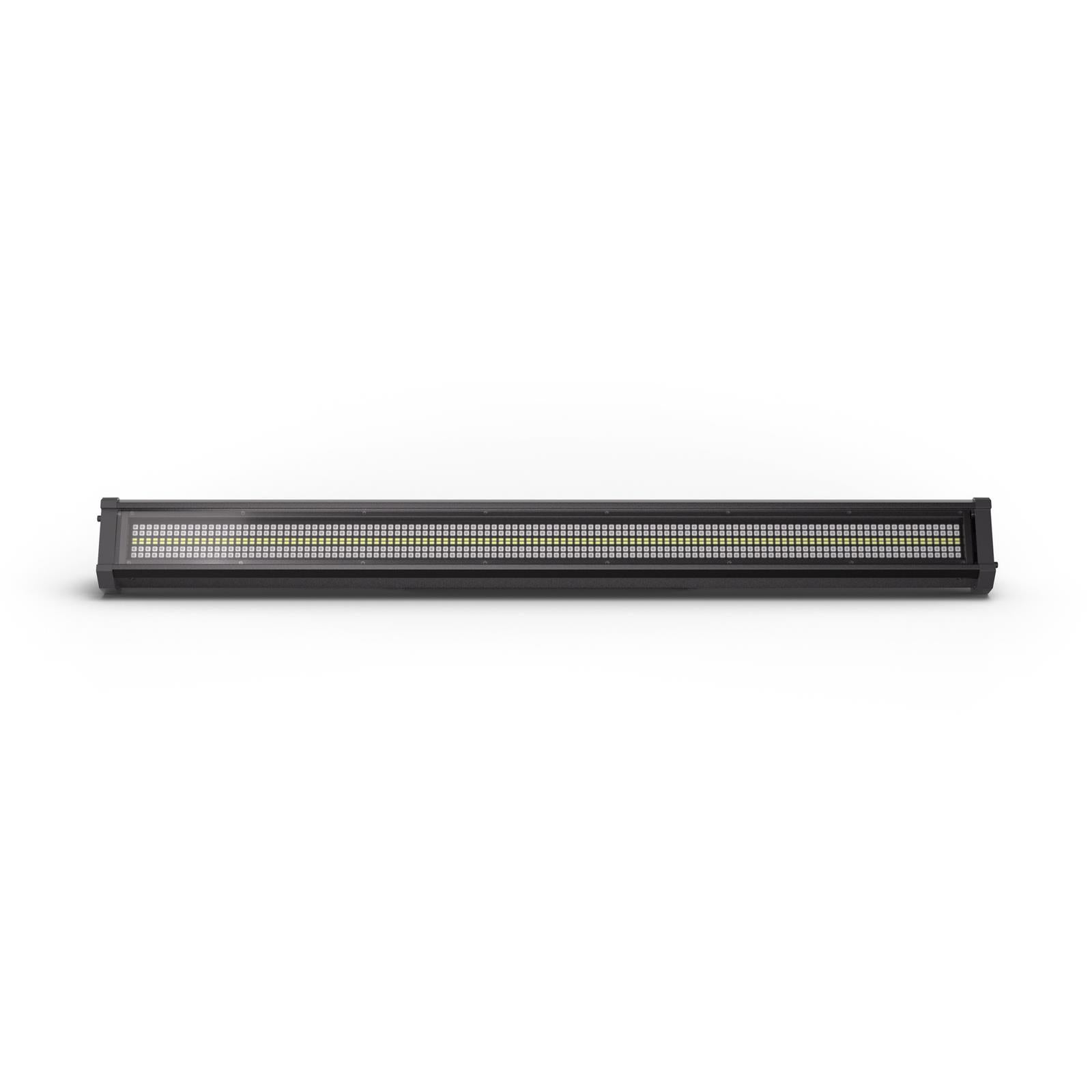

Cameo ROOT BAR SMD LED Bar 1M

The Cameo ROOT BAR SMD is a professional LED lighting bar featuring 480 RGB SMD LEDs and 240 white LEDs, designed to deliver vibrant colours, powerful illumination and versatile lighting effects. With an impressive luminous flux of 5200 lumens and an ultra-wide 102° beam angle, it is ideal for clubs, bars, live events, stage productions and creative lighting installations.

Featuring Cameo's innovative magnetic Quick Alignment System, the ROOT BAR SMD allows multiple fixtures to be positioned and aligned quickly for seamless lighting displays. Its flexible mounting design supports standing or suspended installation at various angles, while the included neon tube filter and glare shield provide additional creative possibilities. The fanless convection cooling system ensures completely silent operation, making it ideal for theatres, presentations and noise-sensitive environments.

The ROOT BAR SMD offers comprehensive DMX512 control, standalone operating modes and optional wireless DMX connectivity using the Cameo iDMX Stick. Its patented EZchase DMX delay function simplifies the creation of dynamic chase effects and colour transitions, while 16-bit dimming and selectable dimmer curves ensure smooth, precise light output. With a 12kHz LED PWM frequency, TRUE1-compatible power connections and 3-pin XLR DMX input and output, the ROOT BAR SMD provides a versatile solution for professional lighting applications.

Features

Professional RGBW SMD LED Lighting Bar

480 x 0.2W RGB SMD LEDs

240 x 0.5W White LEDs

5200 Lumen Light Output

102° Beam Angle and 127° Field Angle

16-Bit Dimming for Smooth Colour Transitions

12kHz LED PWM Frequency

Four Selectable Dimmer Curves

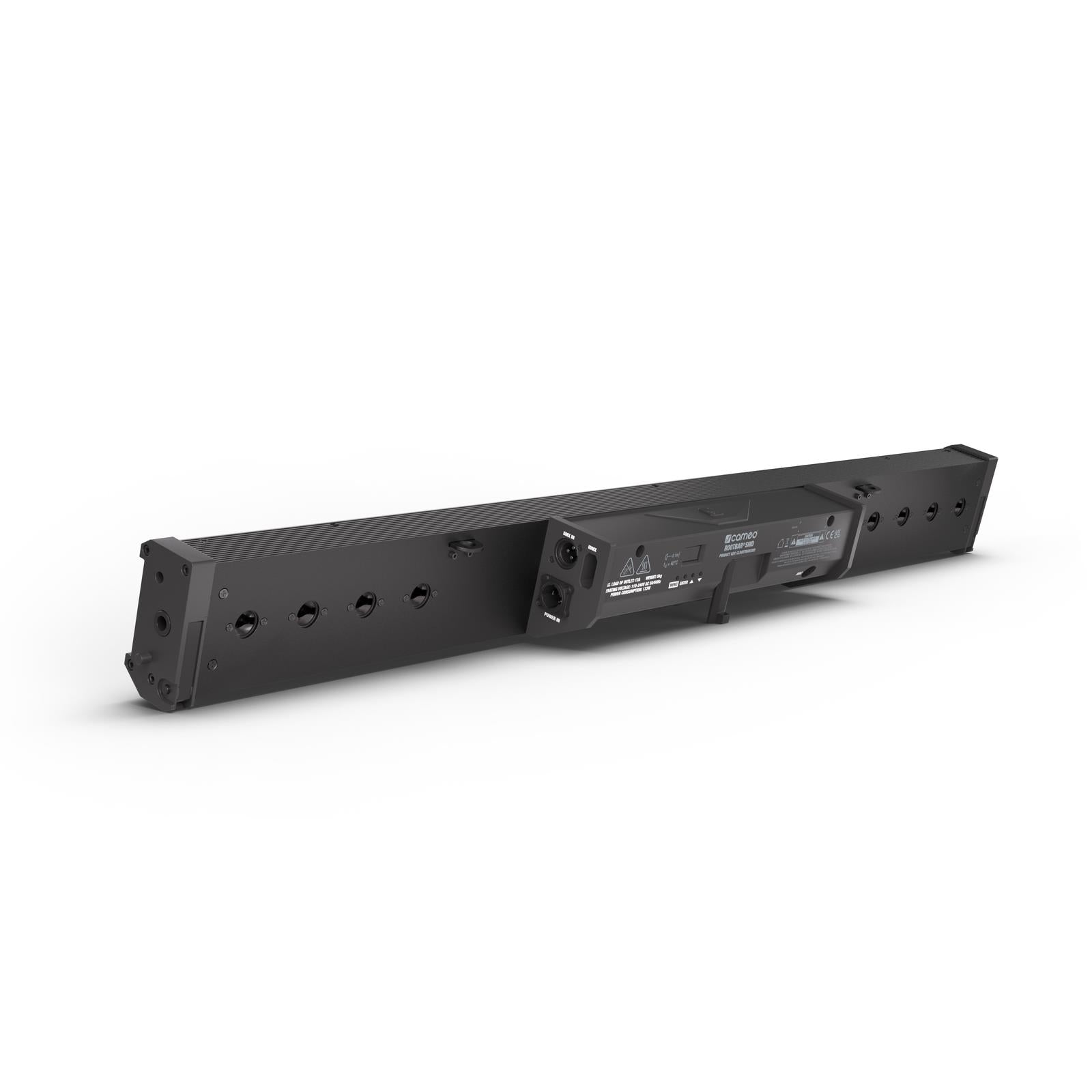

Magnetic Quick Alignment System

Quick Lock Options for Connecting Multiple Fixtures

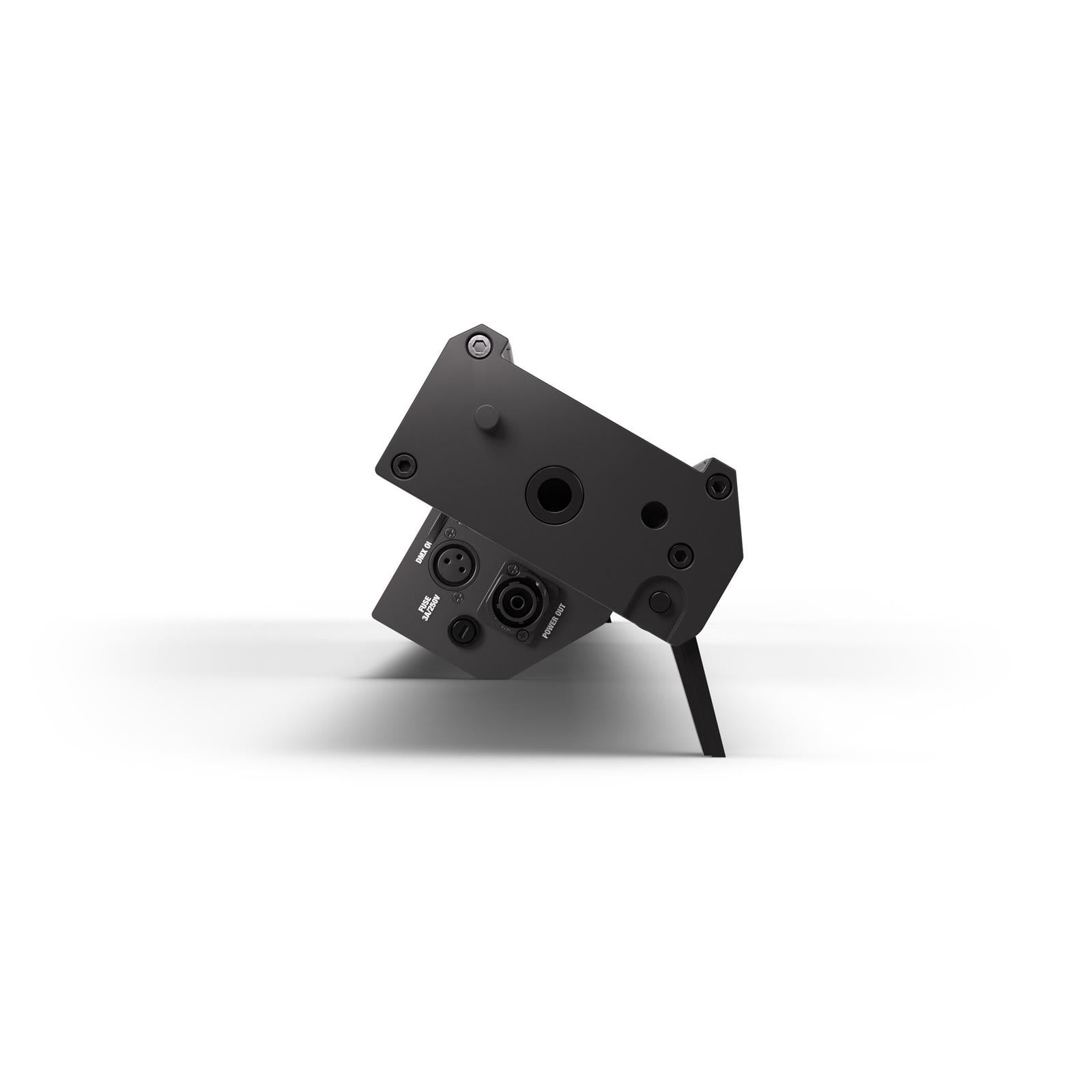

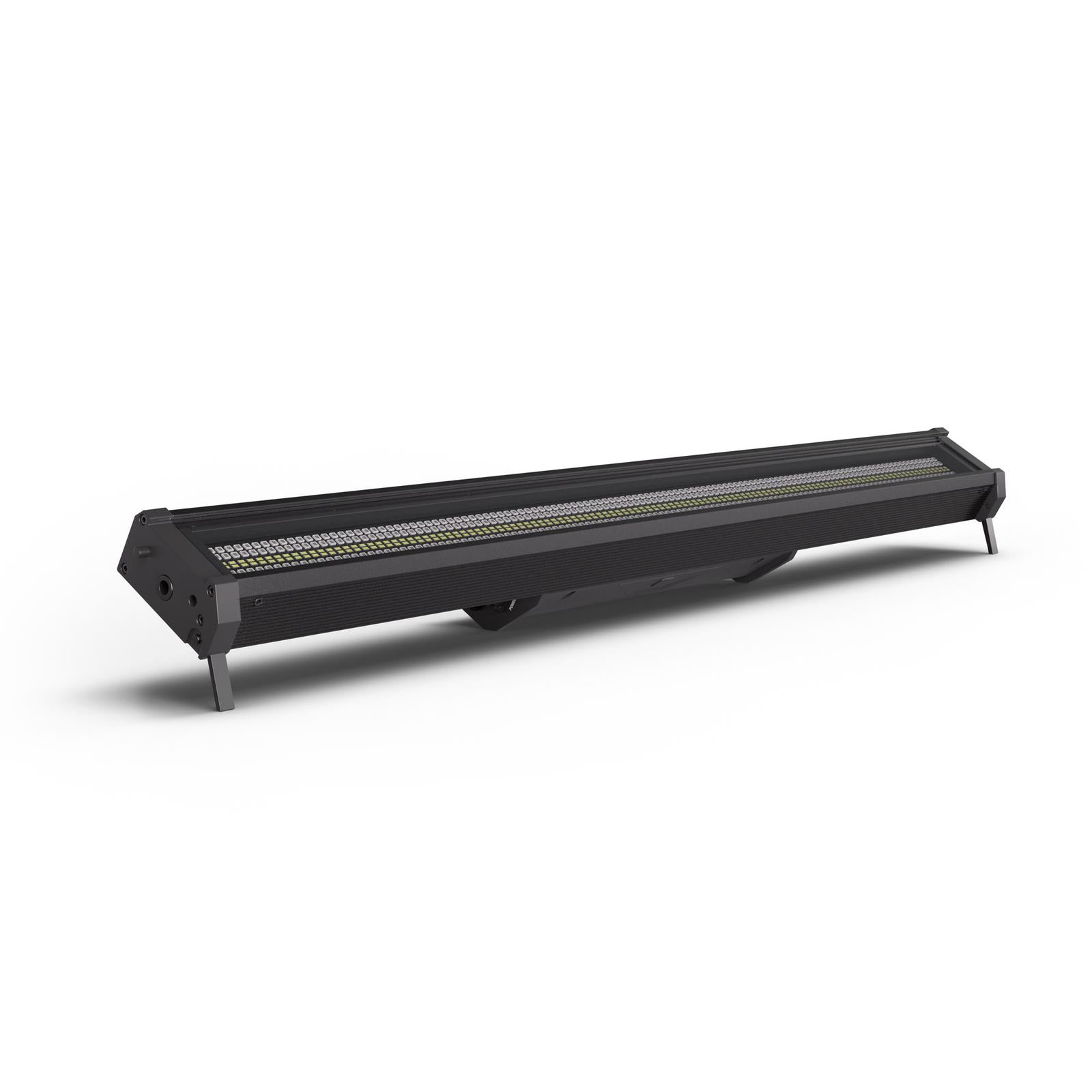

Flexible Standing and Suspended Mounting

Adjustable Positioning at Multiple Angles

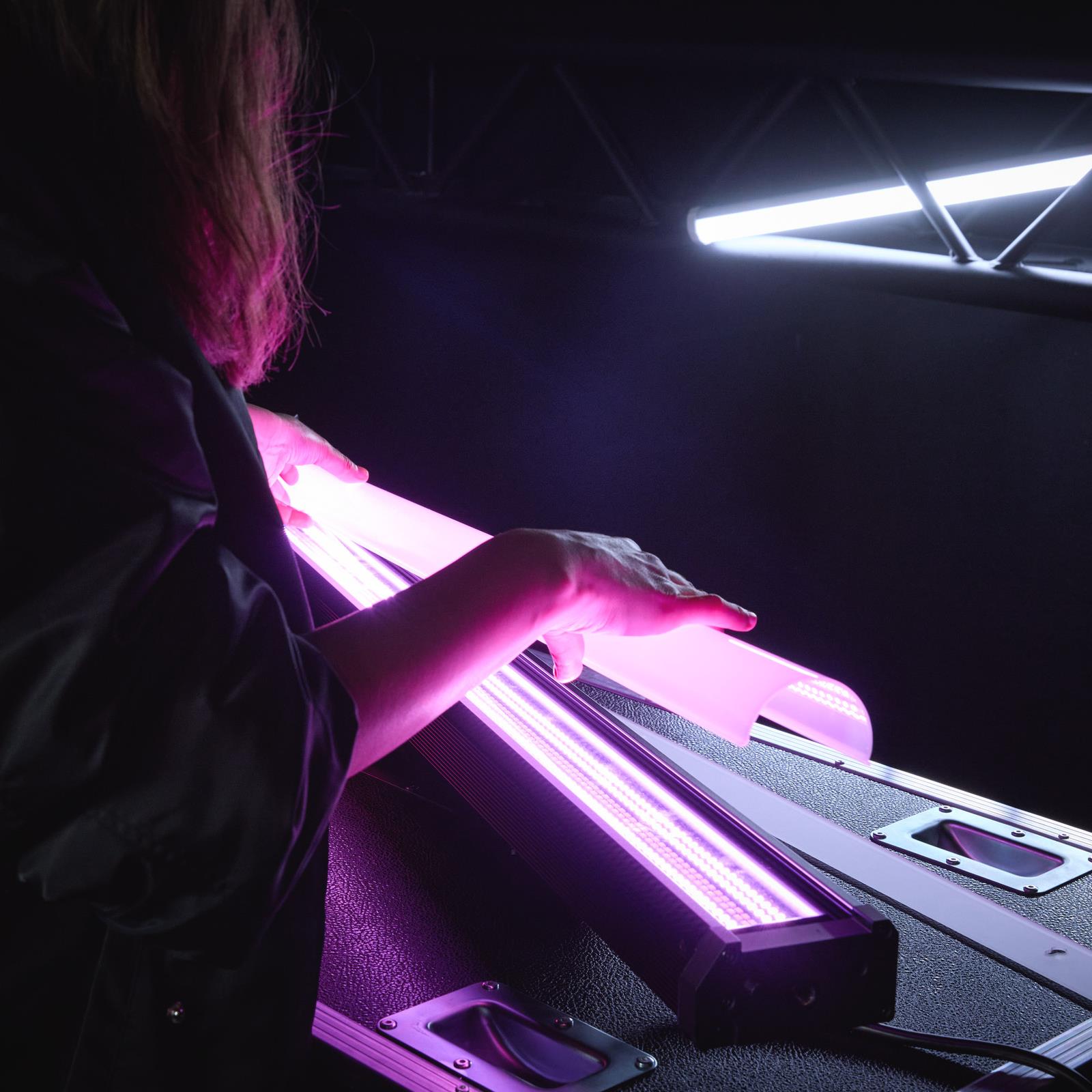

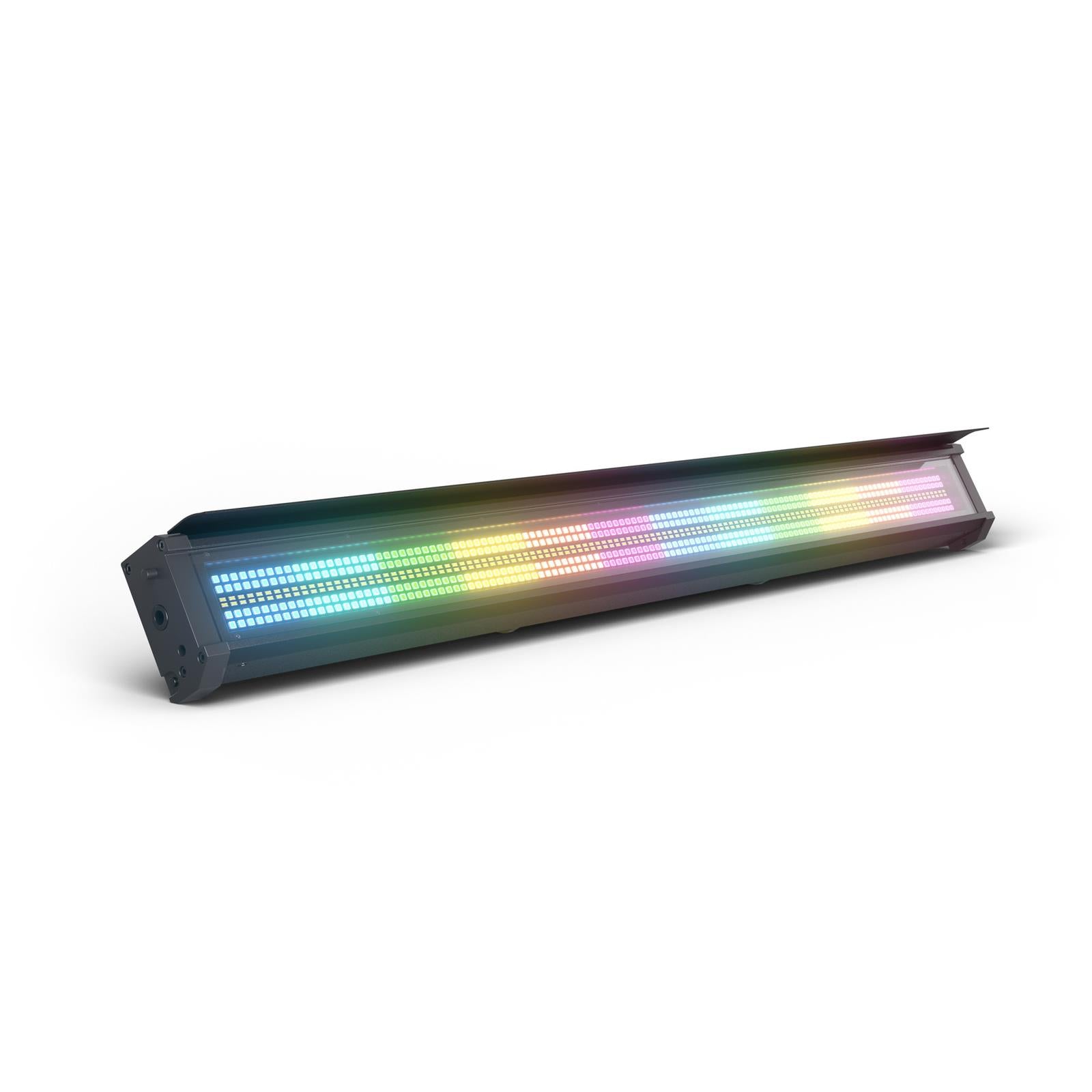

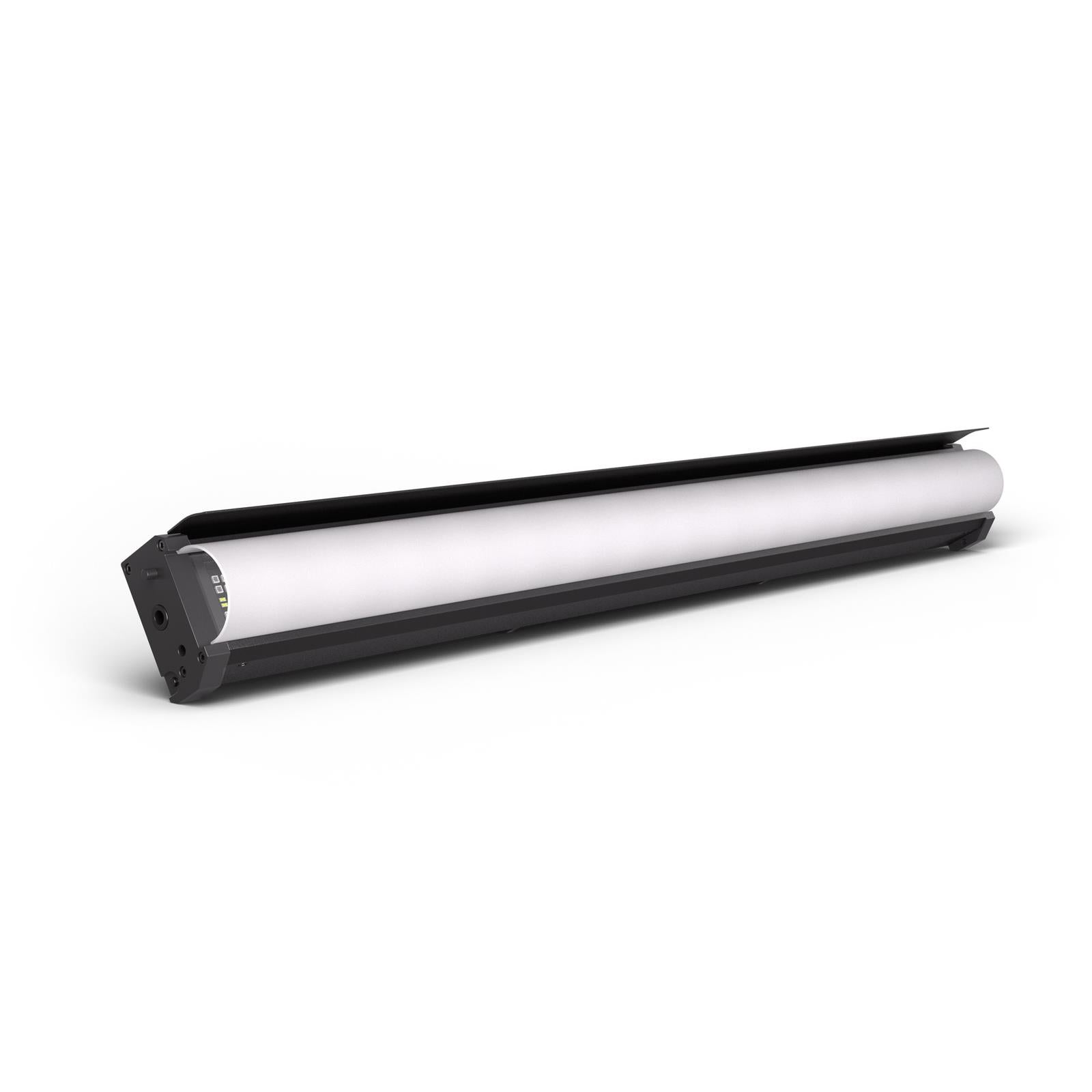

Included Neon Tube Filter and Glare Shield

Patented EZchase DMX Delay Function

DMX512 Control Compatibility

Optional W-DMX Wireless Control via Cameo iDMX Stick

Optional Infrared Remote Control

Sound-Activated and Automatic Operating Modes

Master/Slave, Static and Endless Loop Modes

LED Segment Dimming Control

Adjustable Strobe Effects from 0–20Hz

Completely Silent Fanless Cooling

TRUE1-Compatible Power Input and Output

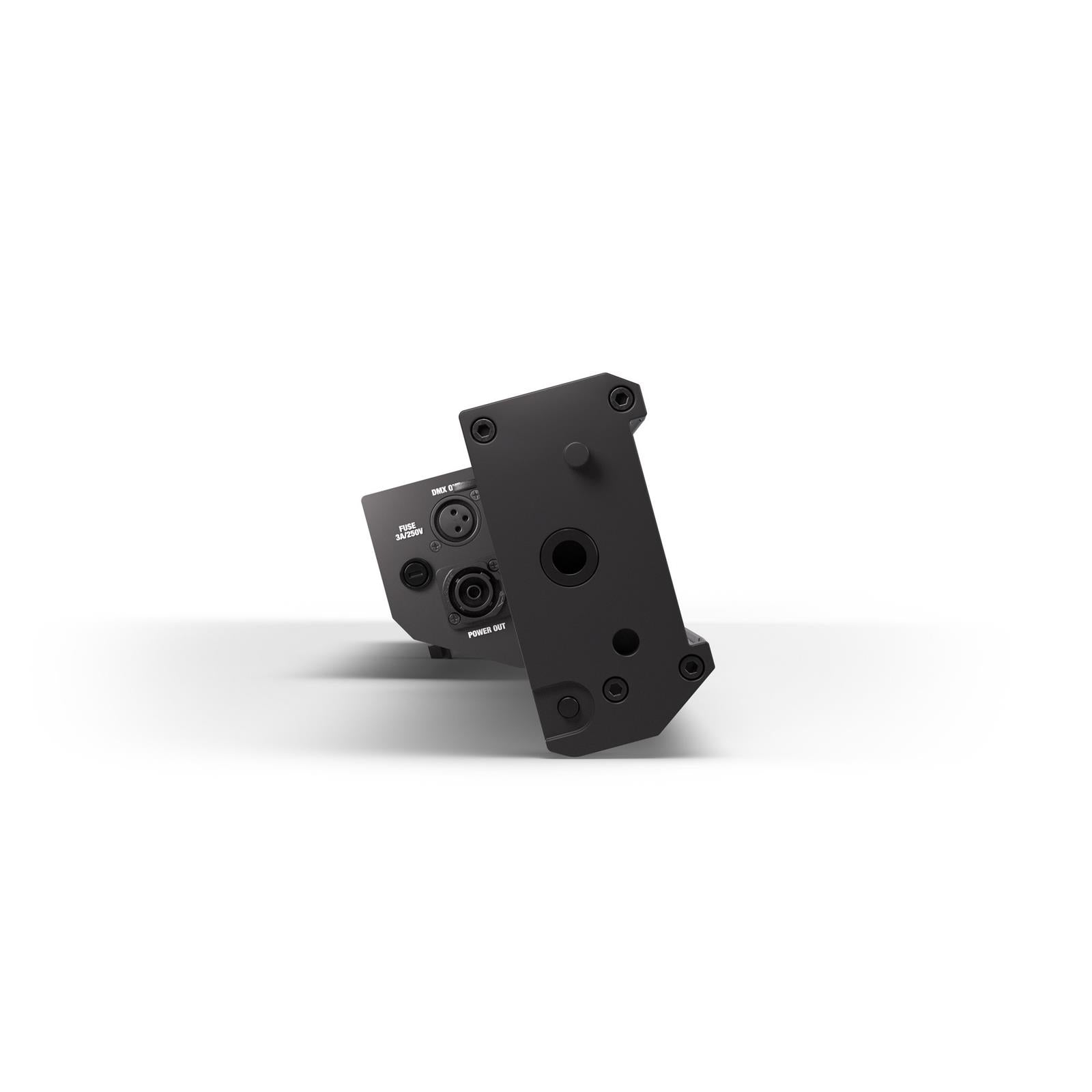

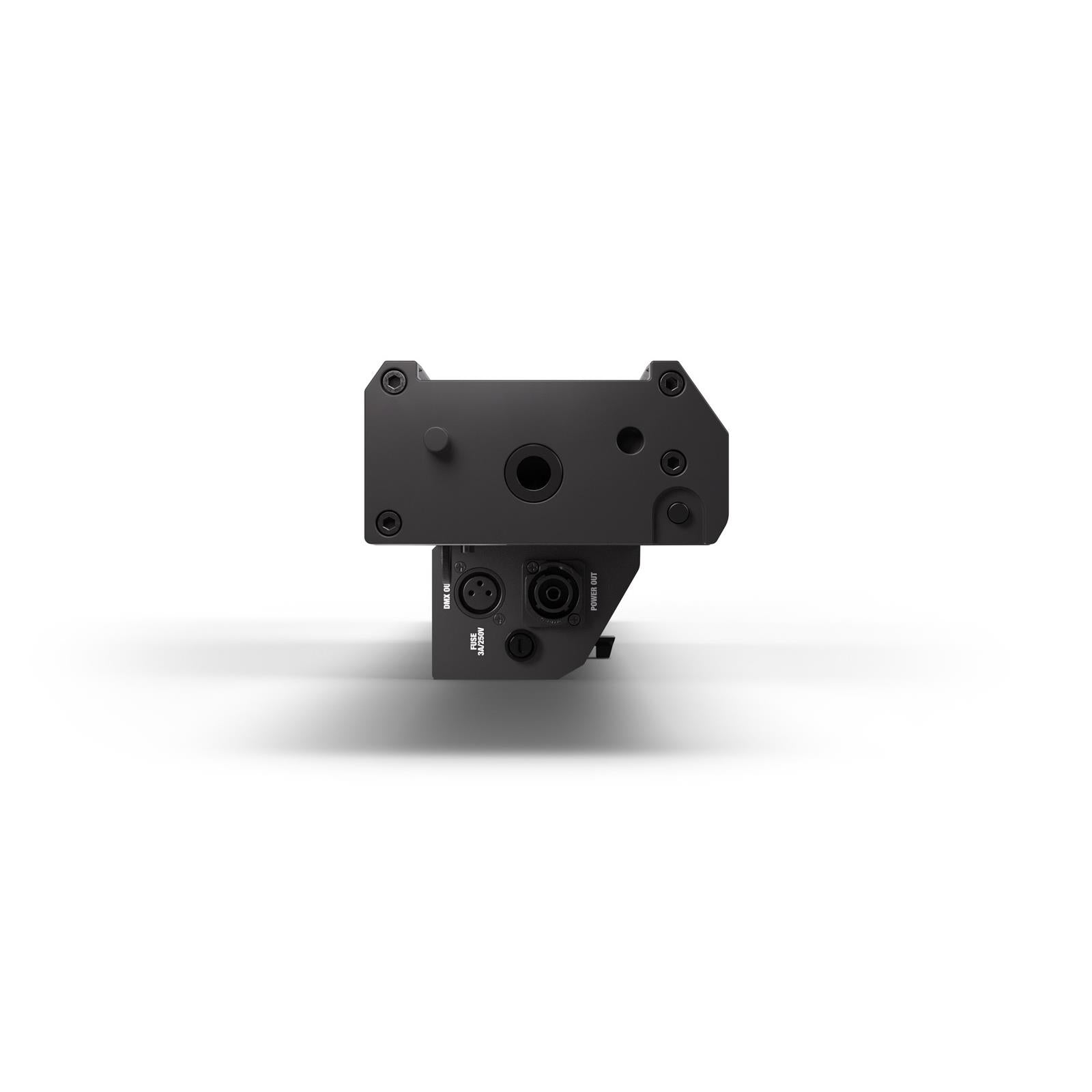

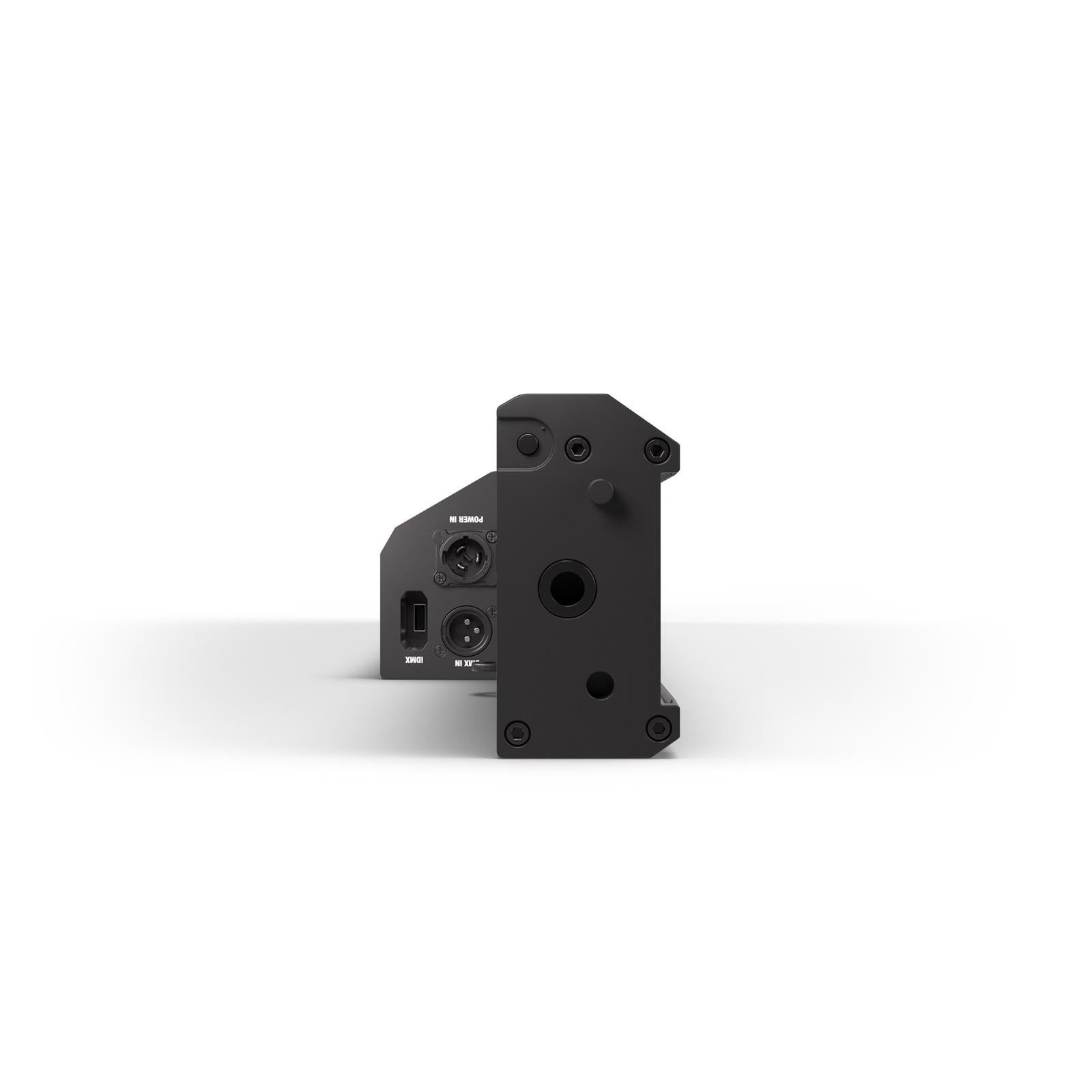

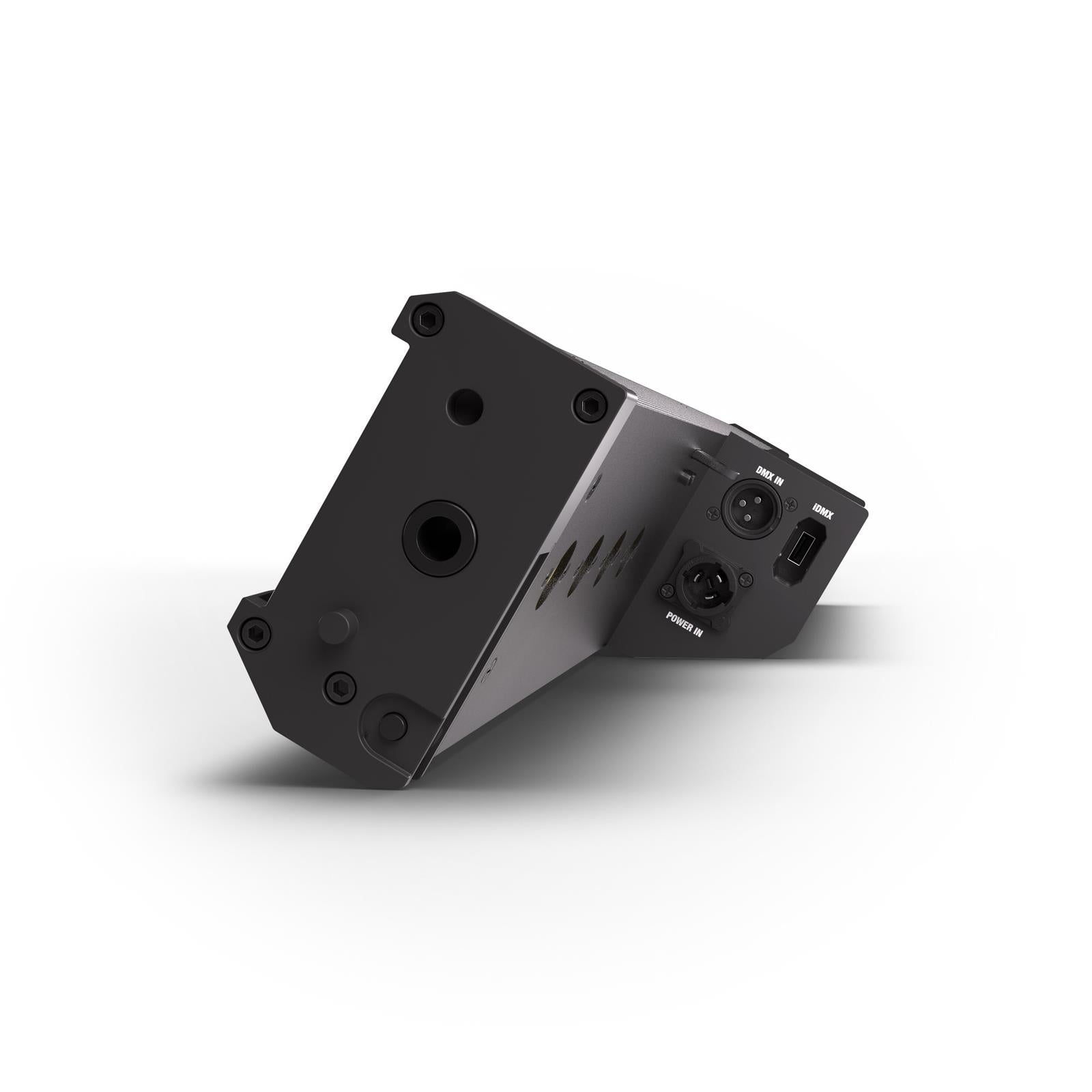

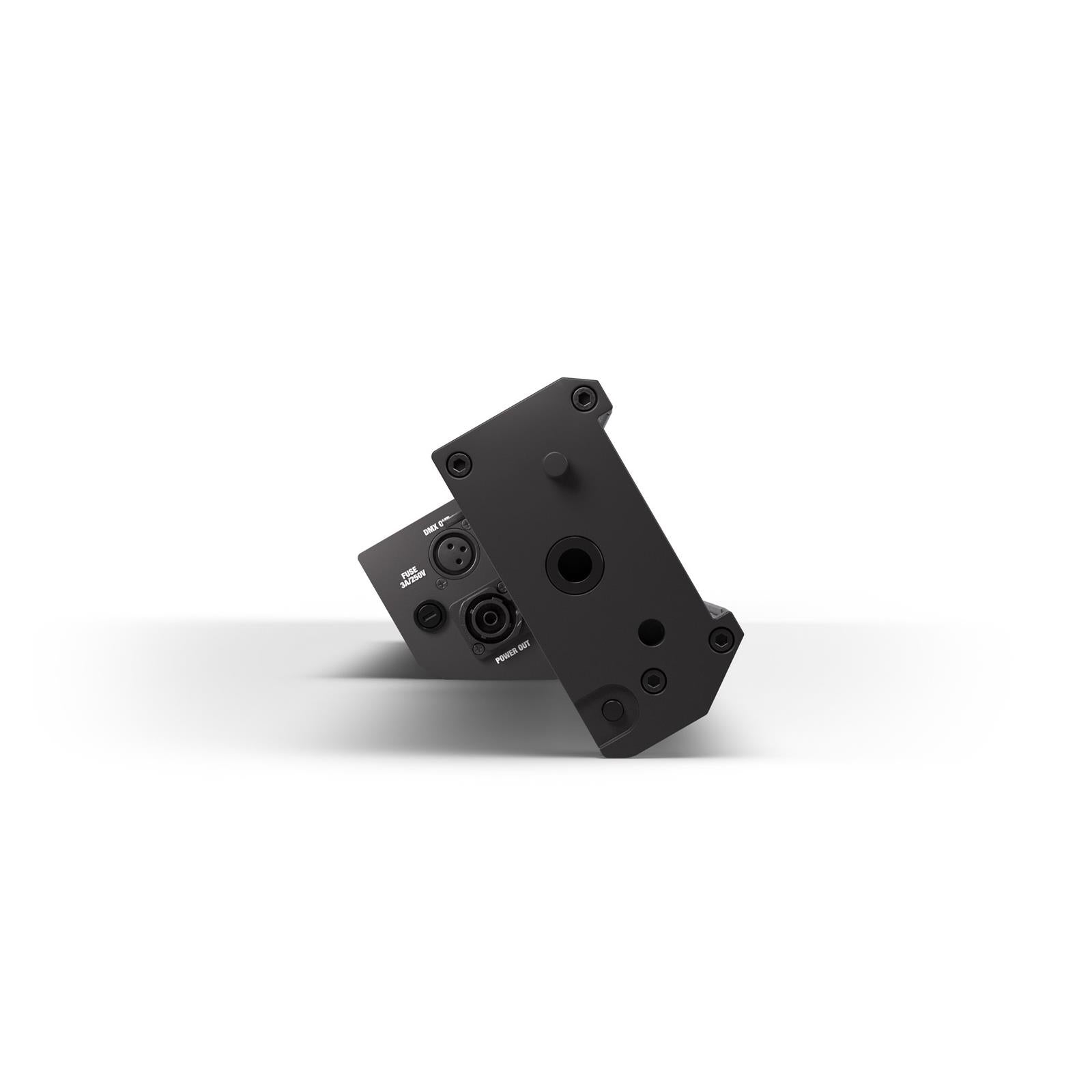

3-Pin XLR DMX Input and Output

Power and DMX Daisy-Chaining Support

Durable Aluminium and Plastic Housing

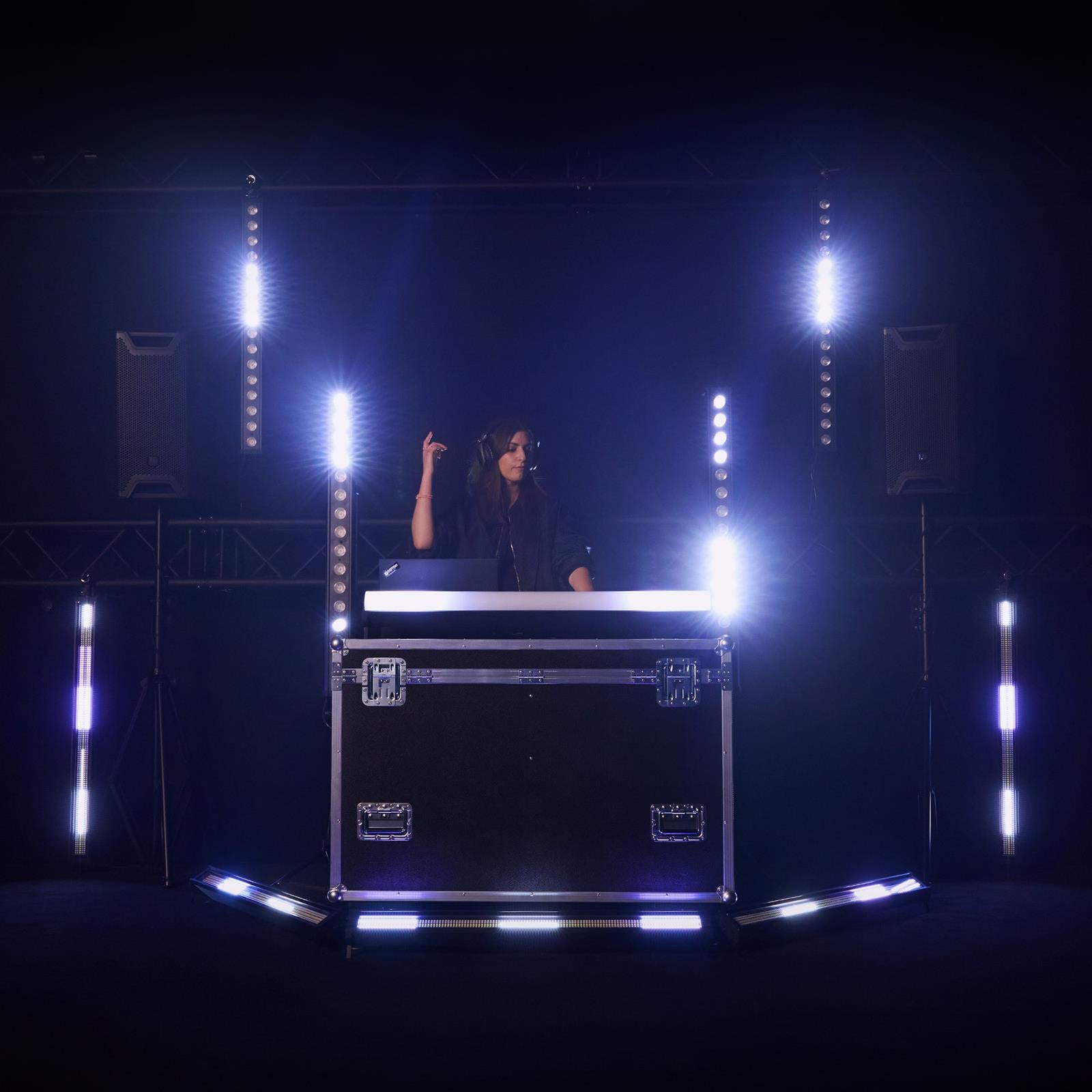

Ideal for Clubs, Bars, Events and Stage Lighting

Width : 1024mm

Height : 116mm

Depth : 106mm

Weight : 5kg

Included Accessories : Neon Tube Filter, Glare Shield
