Description

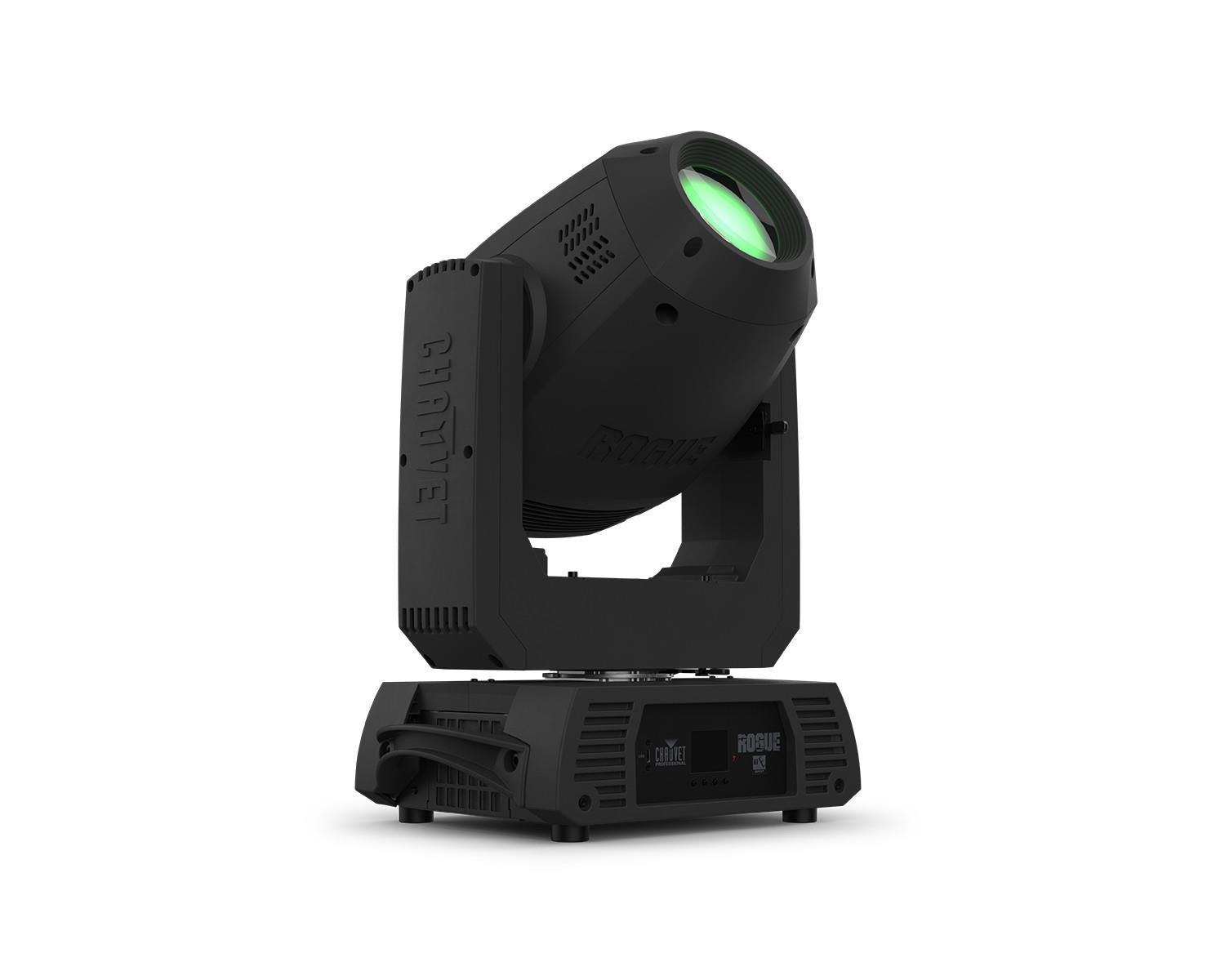

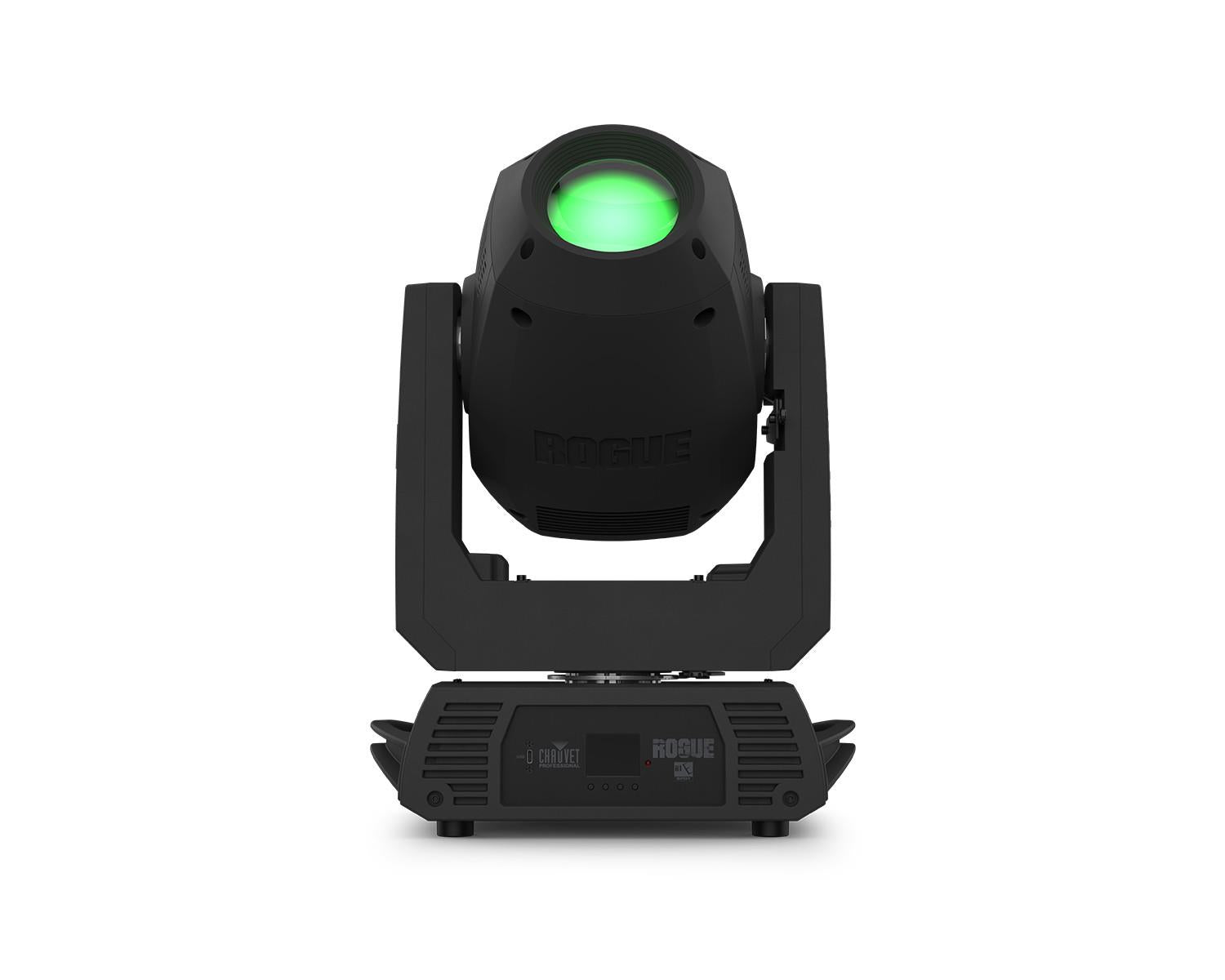

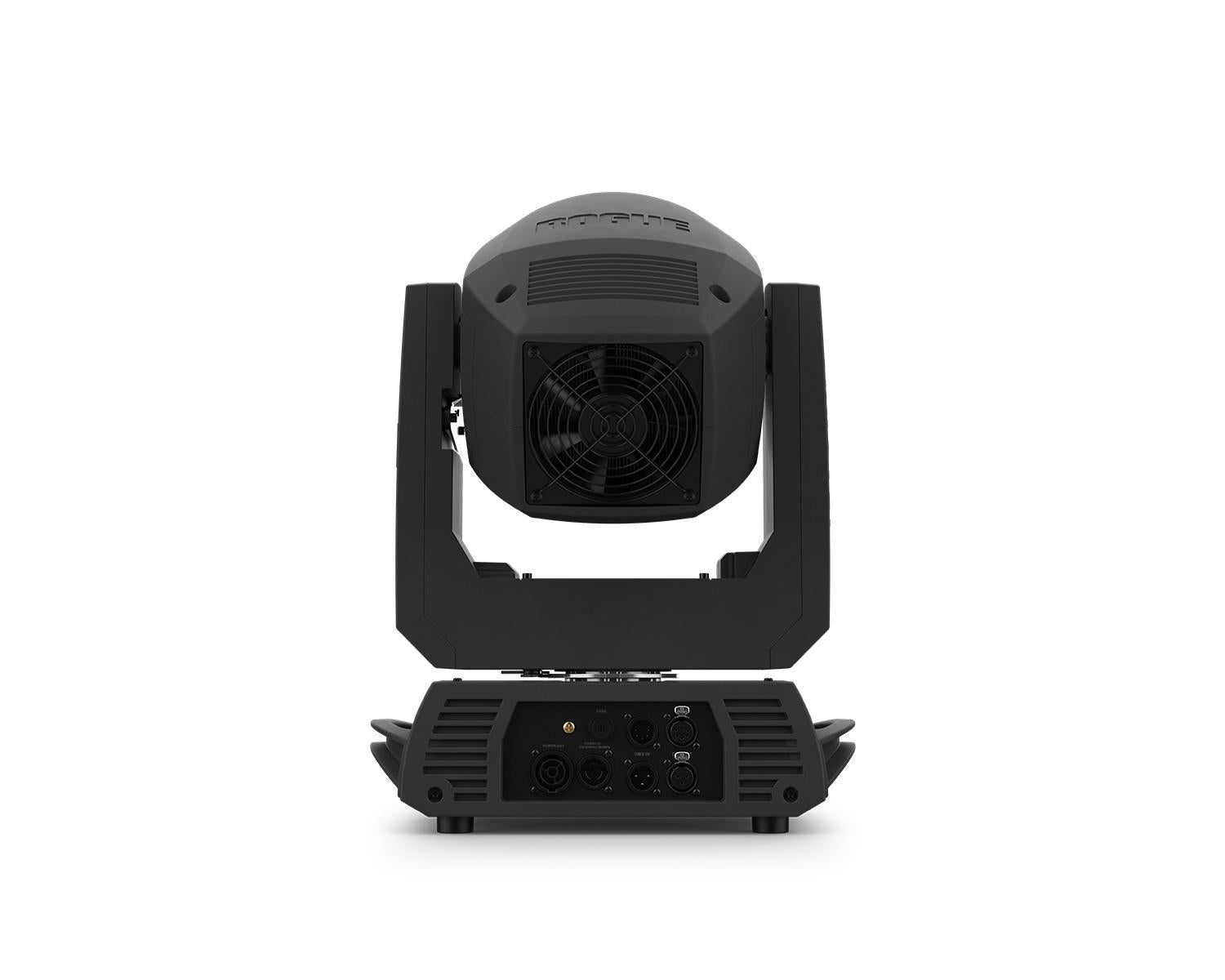

Rogue R1E Spot is a compact, lightweight moving yoke spot that delivers intense output from its 200W LED light engine and a fully featured wheelhouse: 3-facet rotating prism for stunning aerial effects; motorized iris and frost for beam shaping; dual gobo wheels (one rotating with interchangeable gobos + one static) for creating custom gobo morphing looks; and a colour wheel with eight brilliant colours + white + split colours. Its 15° beam angle delivers crisp gobo projections and a selectable LED max output setting enables matching brightness with legacy Rogue R1X Spots in your rig.
A fully featured compact and light weight moving yoke spot fixture with an Intense 200 W LED light engine, two gobo wheels, one rotating, and one static, a 3-facet prism wheel, frost, and a colour wheel.
16-bit dimming of master dimmer for smooth control of fades
Perfect gobo morphing between gobo wheels
Two gobo wheels: one fixed scrolling wheel and one rotating, interchangeable, scrolling wheel.
Iris, 3-facet prism, and frost for beam control
True 1 compatible power input/output connections for power linking.
3- and 5-pin DMX input/output connections
RDM enabled for remote addressing and trouble shooting.
Selectable LED maximum output to match legacy Rogue R1X Spots
Selectable PWM settings to maintain flicker-free operation on camera.
Simple and complex DMX channel profiles for programming versatility
Light Source: 1 LEDs (CW) 200 W, (3.2 A), 7423 K, 50,000 hours life expectancy
Colour Temperature (at full): 7423 K
Front lens diameter: 90mm
CRI: 71.9
Beam Angle: 15.2°
Field Angle: 18.2°
Cutoff Angle: 19.2°
Lumens – Source: 17,900
Lumens – Output: 11,176
Illuminance (total): 8,306 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2000 Hz, 4000 Hz, 6,000 Hz, 15,000 Hz
Dynamic Effects
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 270° pan/270°, 180°, 90° tilt
Colours: 8 + white, split colours, continuous scroll at variable speeds
Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
Gobo Size: Gobo Wheel 1 (rotating); size: 20 mm (outside), 16 mm (image), 0.6 mm (max. thickness)
Dimmer: Electronic
Shutter/Strobe: Electronic
Focus: Motorized
Iris: Motorized
Prism: 3 Facets, motorized, rotating
Strobe Rate: 0 to 22 Hz
Move in Black: Yes
Control
Control Protocol: DMX, RDM
DMX Channels: 17 or 20
Modes/Personalities: 2 personalities (17, 20)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 8units @ 230 V
Power and Current: 303 W, 1.36 A @ 230 V, 50 Hz
Construction/Physical
Dimensions (single unit): 14.01 x 9.44 x 20.47 in (356 x 240 x 520 mm)
Weight (single unit): 31.2 lb (14.2 kg)
Exterior Colour: Black
Housing Material: Aluminum die-cast, High-impact flame-retardant polymer, Steel
Software update: USB-C
