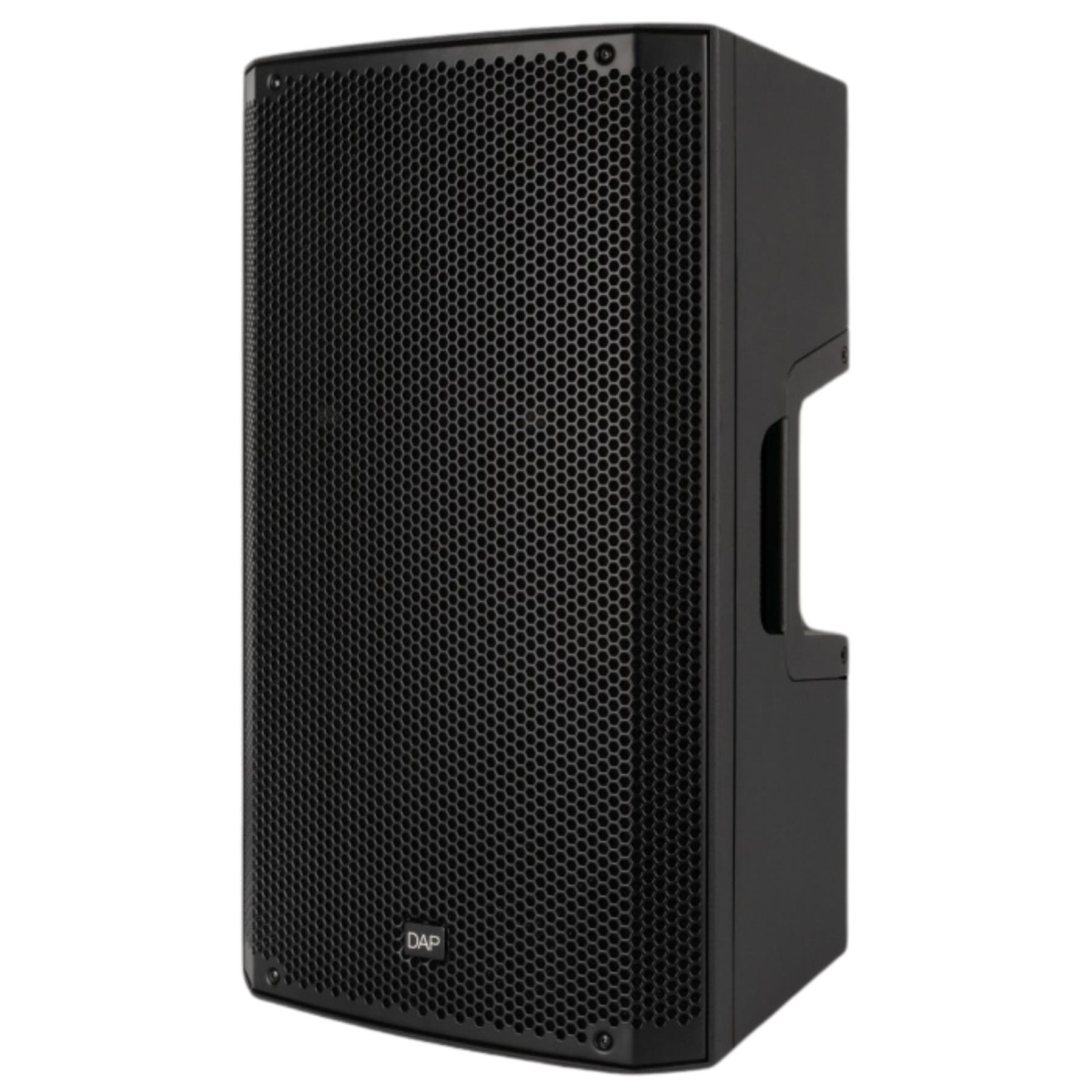

DAP NGA-10A Active 10” Speaker 2000W Bluetooth App Control

Description

The NGA-10A is a compact active loudspeaker designed for versatile audio applications. It features a 10" woofer paired with a 1.4" compression driver, delivering a frequency response of 48 - 20,000 Hz (-10 dB). The system is powered by a 1000W RMS Class-D amplifier and includes a built-in DSP engine with four selectable user modes.

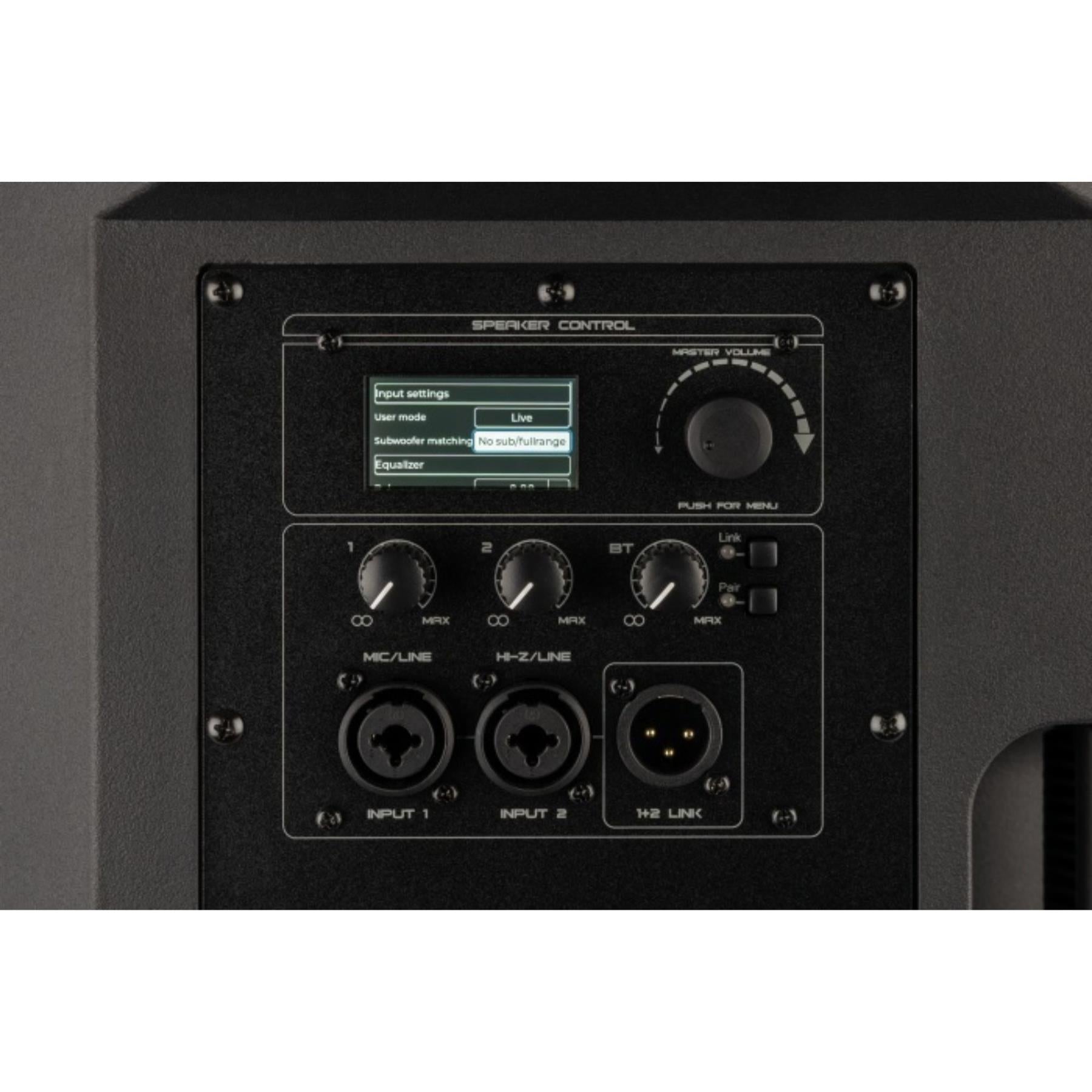

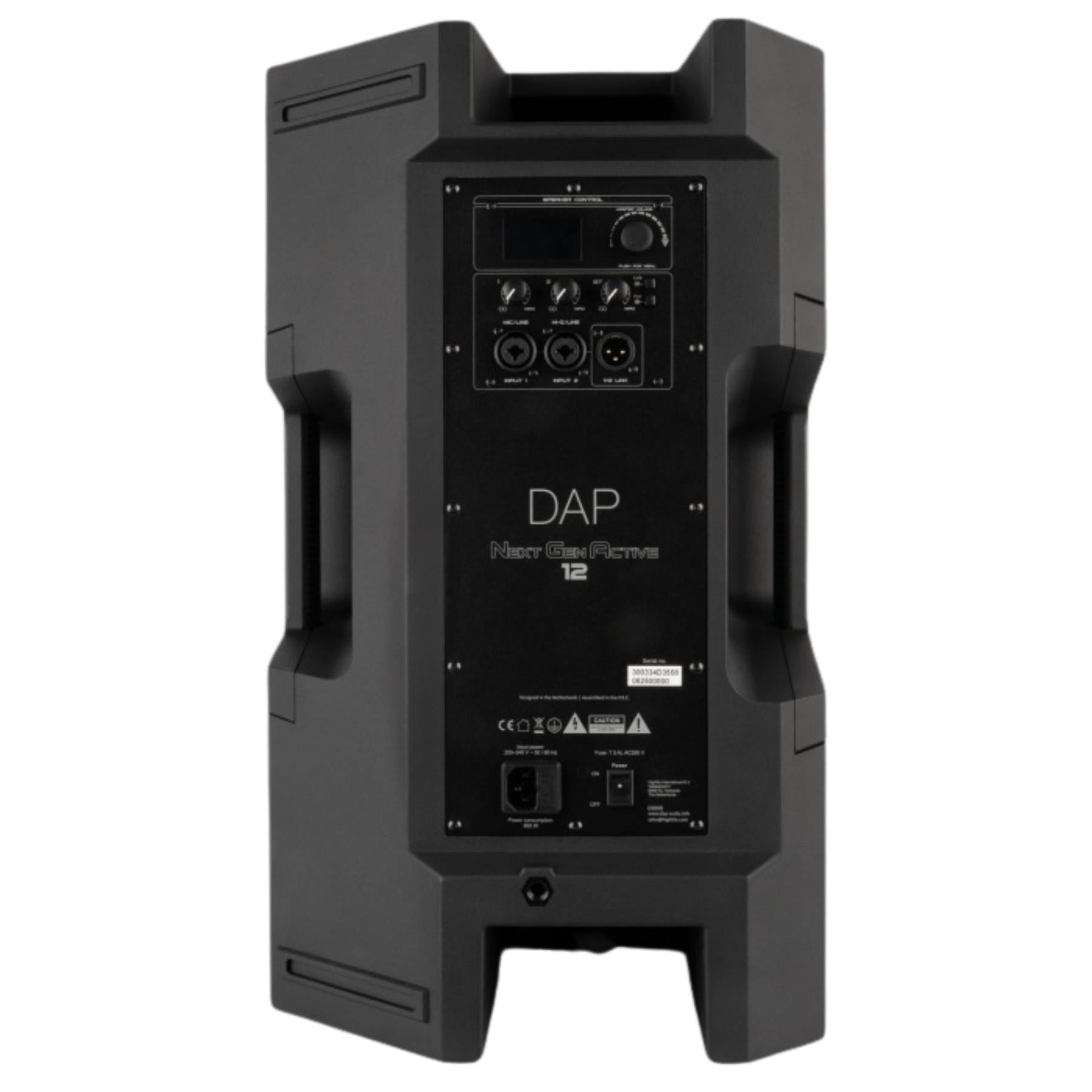

The rear panel offers two combo XLR/jack inputs. One of these accepts both mic and line-level signals, while the other supports Hi-Z sources such as electric guitars. A balanced XLR output is available for linking to additional speakers; this output combines the analogue inputs and the BT audio signal.

Further audio shaping is possible via a flexible crossover section with multiple crossover frequency options, as well as a 3-band equaliser with adjustable frequency, Q-factor and EQ type. Delay settings and user-defined EQ presets can be stored directly on the device.

BT 5.3 connectivity enables wireless audio streaming and supports True Wireless Stereo (TWS) pairing. In addition, the NGA-10A can be remotely controlled via a dedicated app (iOS or Android), allowing access to output gain, 3-band EQ, speaker name and stored presets.

Despite its feature set, the unit remains lightweight and portable, making it suitable for both fixed installations and mobile applications.

Features

10-inch active 2-way loudspeaker with 1000 W RMS output
2000 W peak power with maximum SPL of 126 dB
Bluetooth 5.3 with True Wireless Stereo pairing
Built-in DSP with 4 selectable modes
Adjustable crossover, 3-band EQ, delay, and limiting
App control via iOS and Android for remote adjustment
Two combo inputs supporting mic, line, and Hi-Z sources
Balanced XLR output for linking additional speakers
Wide frequency response for full-range sound reproduction

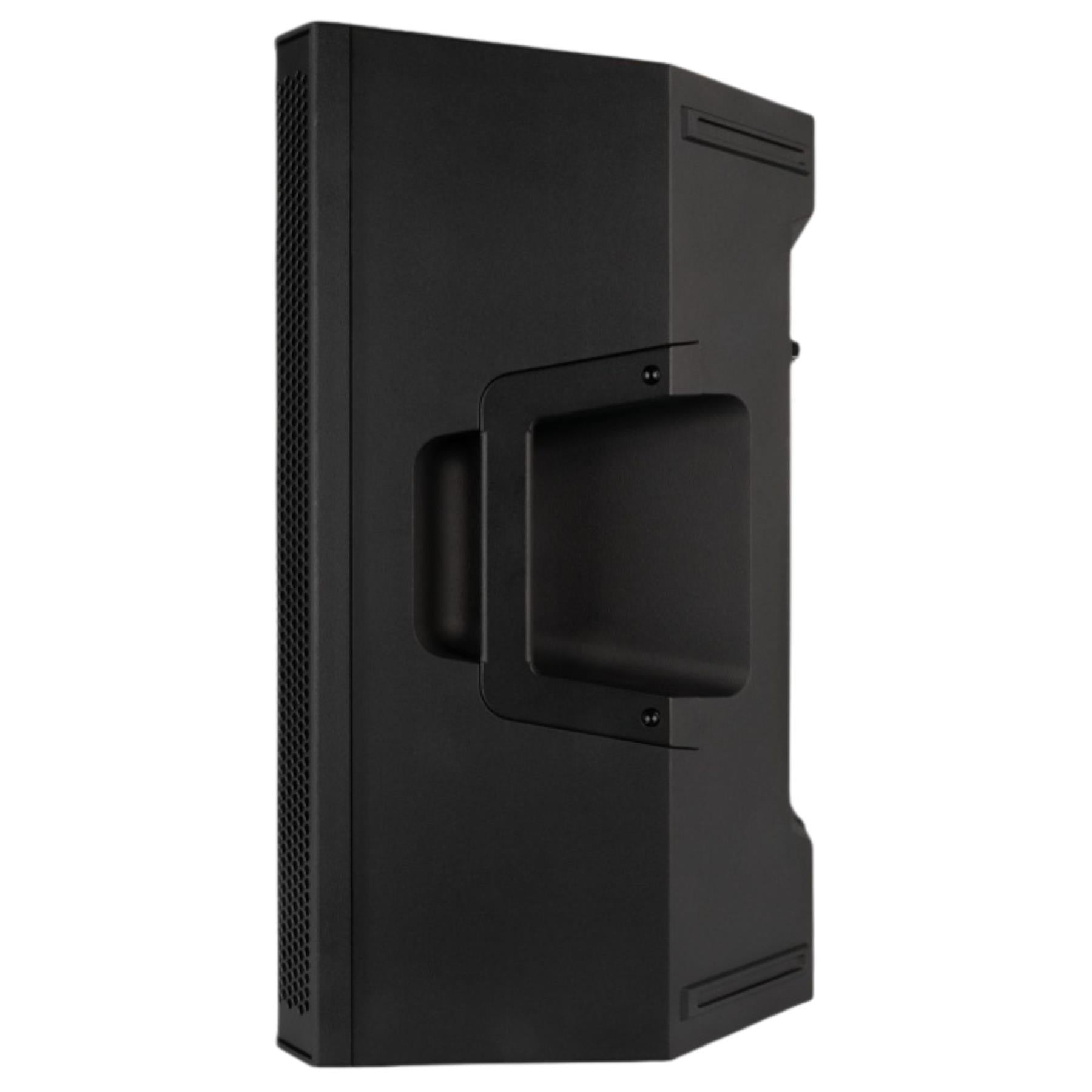

Lightweight and portable design
Can be used as a monitor or pole-mounted speaker

Specifications

Power output: 1000 W RMS, 2000 W peak
Low frequency power: 650 W
High frequency power: 350 W

Maximum SPL: 126 dB
Sensitivity: 96 dB (1W/1m)
THD: <0.15%
Signal-to-noise ratio: >85 dB
Amplifier: Class D
Crossover frequency: 3000 Hz

Speaker Components

Woofer: 10" with 2.5" voice coil, ferrite magnet
Compression driver: 1" with 1.4" voice coil, ferrite magnet
Dispersion: 90° x 60°

Connectivity and Control

Inputs: 2 x combo XLR/6.3 mm jack
Output: 1 x 3-pin XLR
Bluetooth: Yes (5.3 with TWS)
Display: 1.9" TFT
Control: Bluetooth app and onboard DSP

Electrical

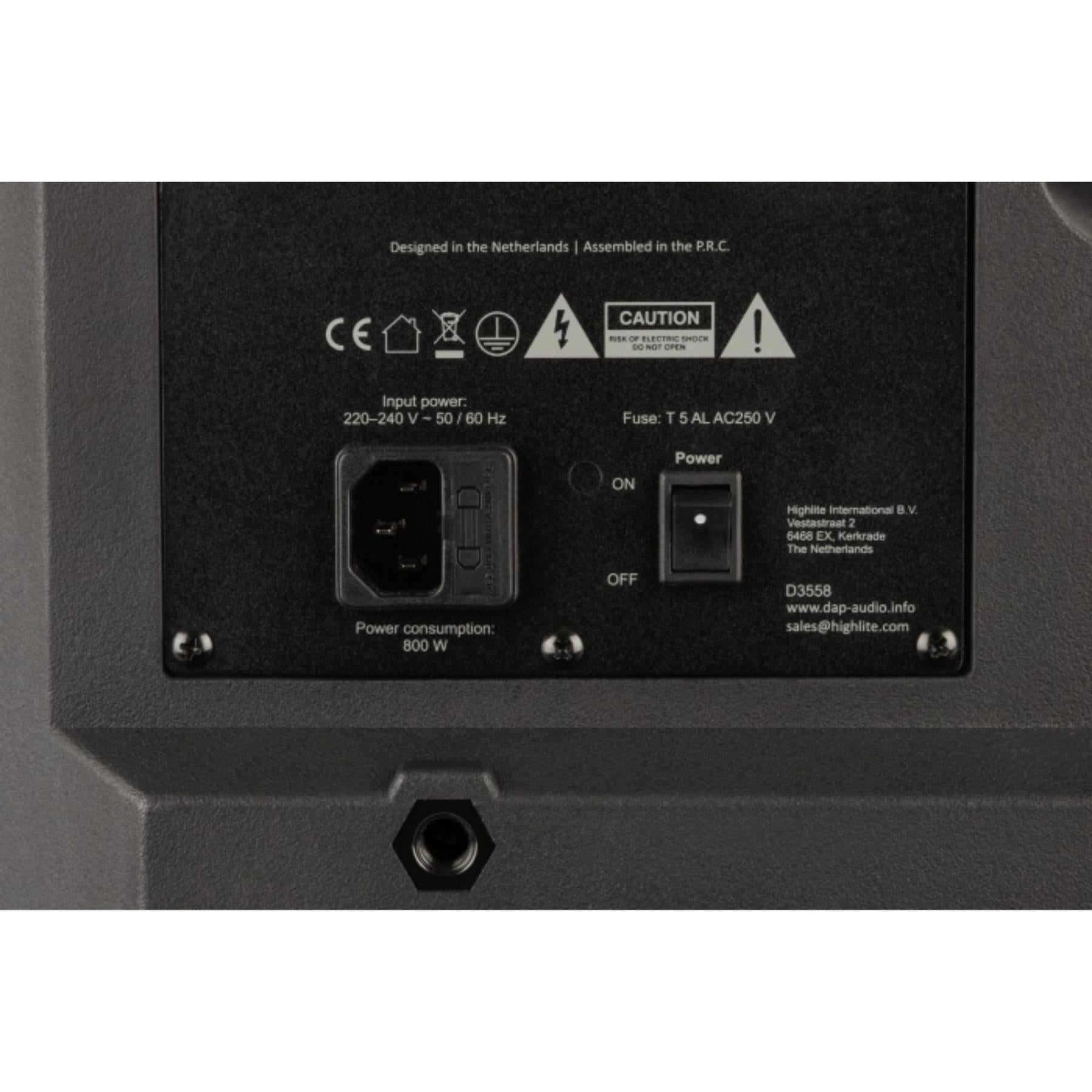

Power supply: 220–240 V AC, 50/60 Hz
Power consumption: 800 W
Fuse: 5 A
Power connection: IEC

Mechanical

Enclosure: Polypropylene

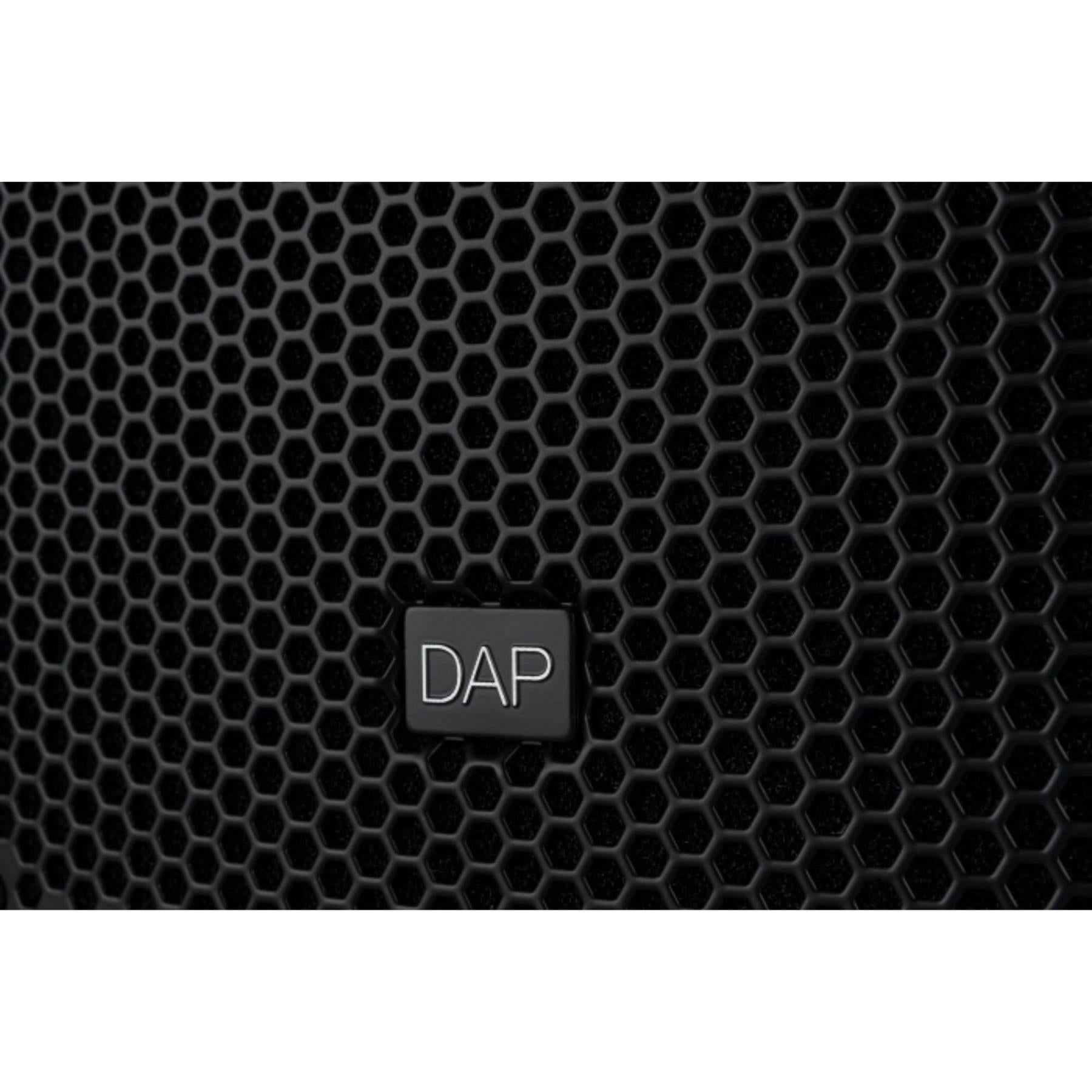

Grille: Steel
Colour: Black

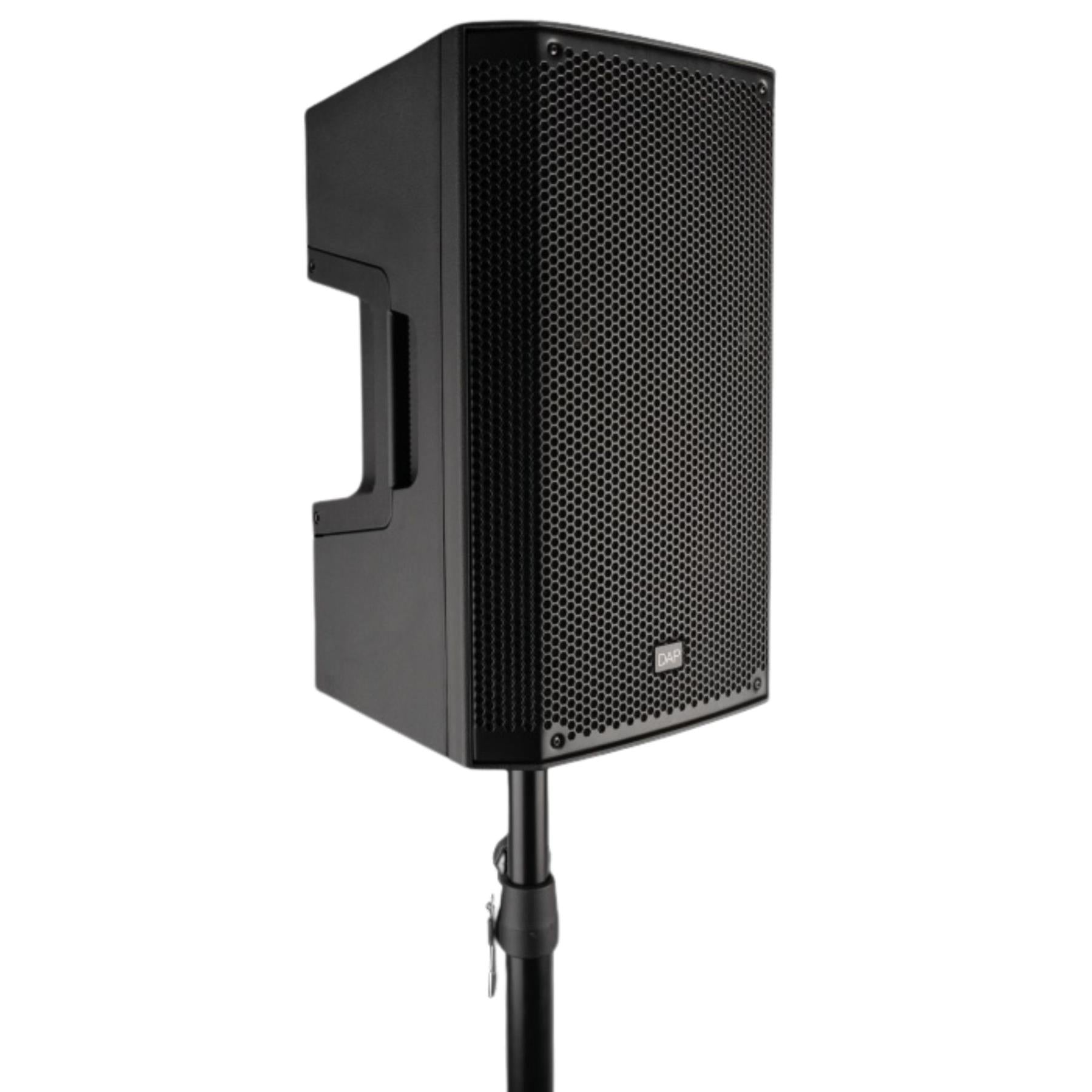

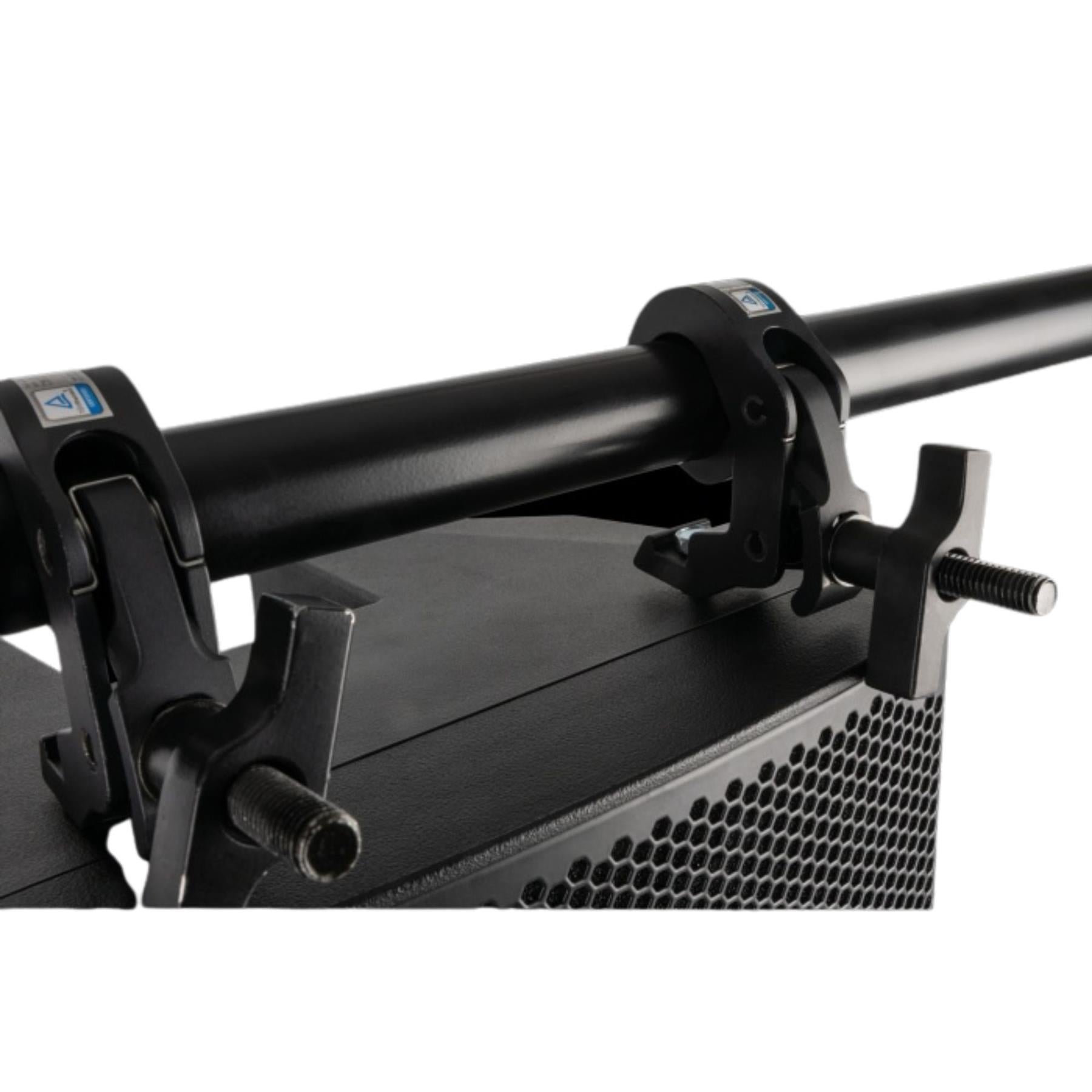

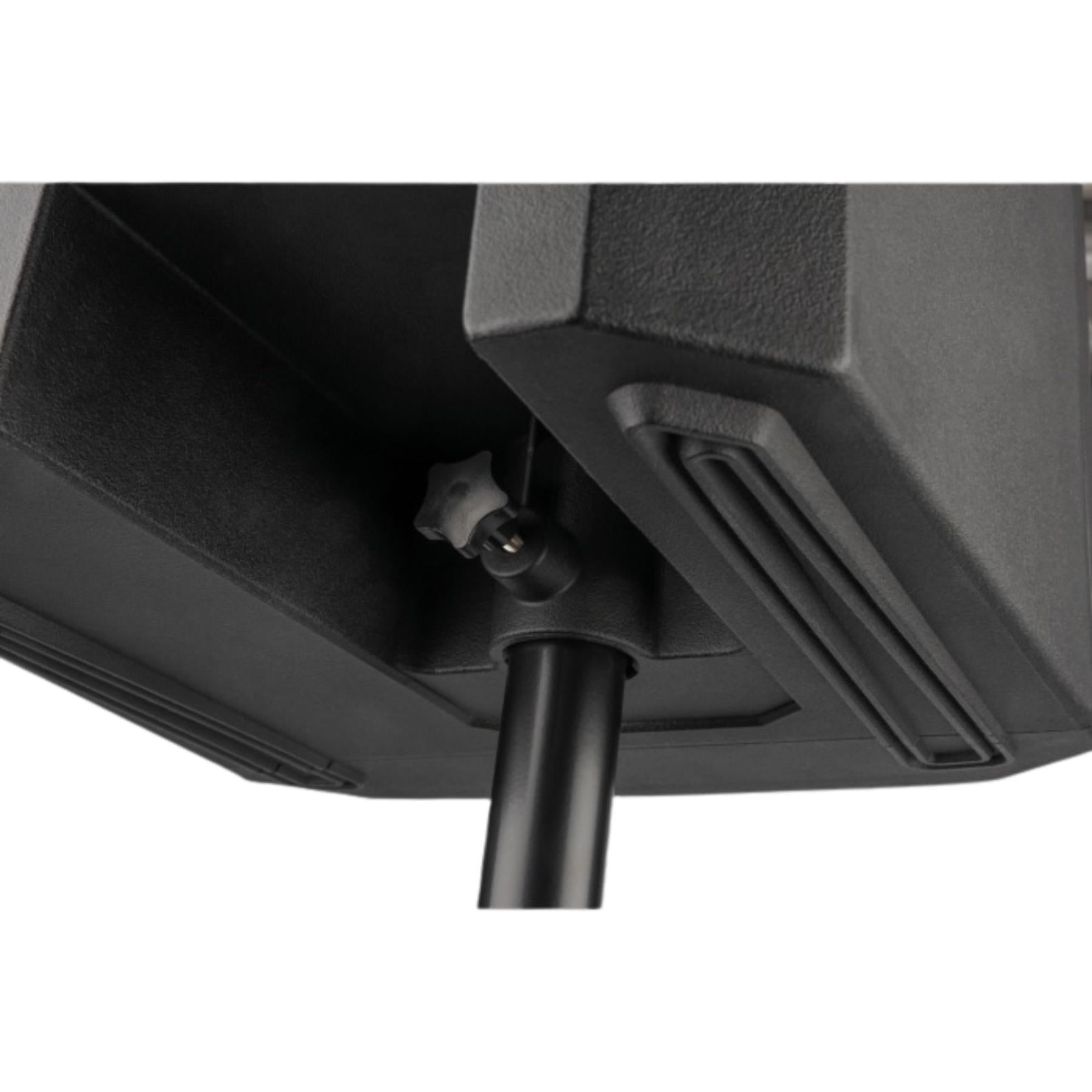

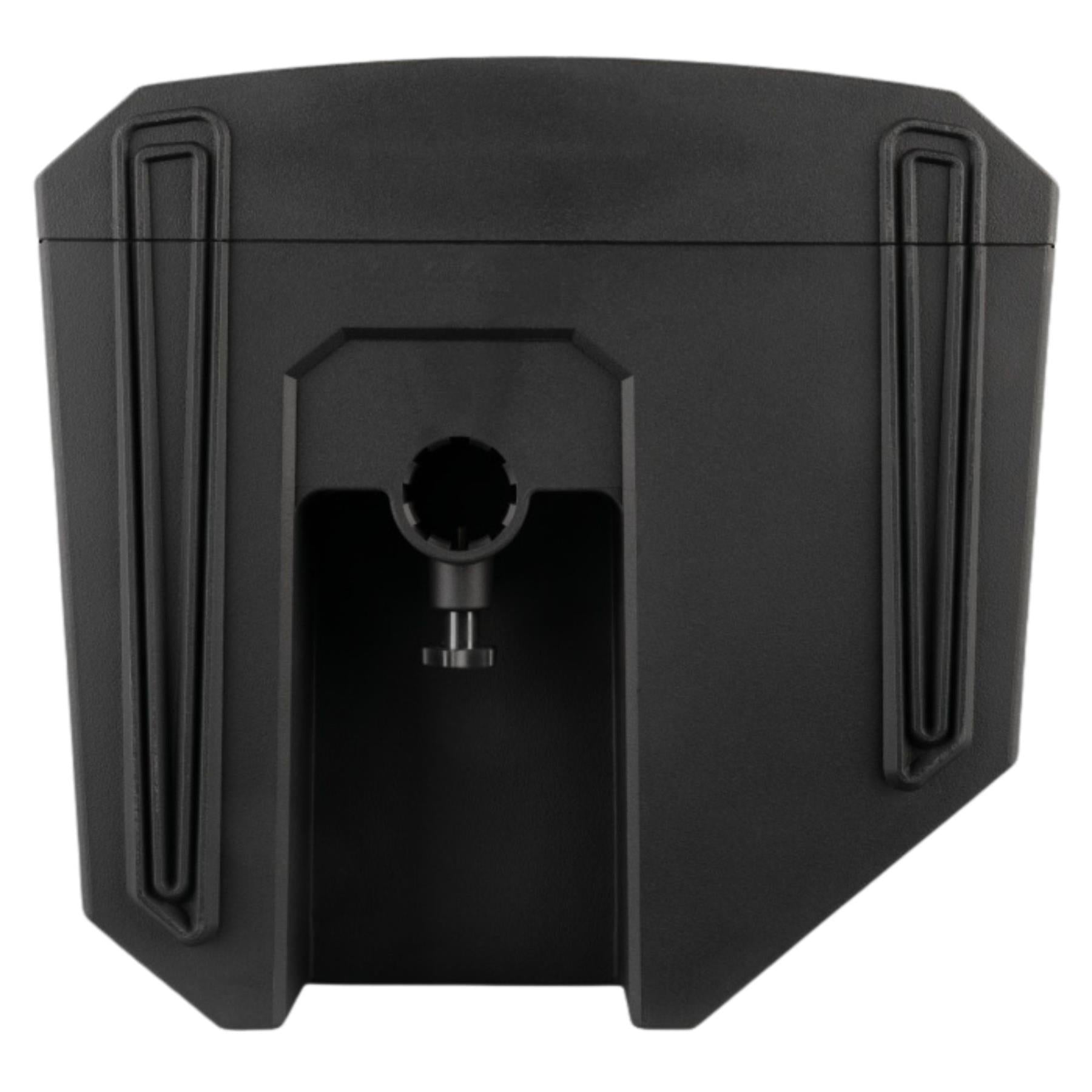

Mounting: 35 mm pole mount, M10 rigging points

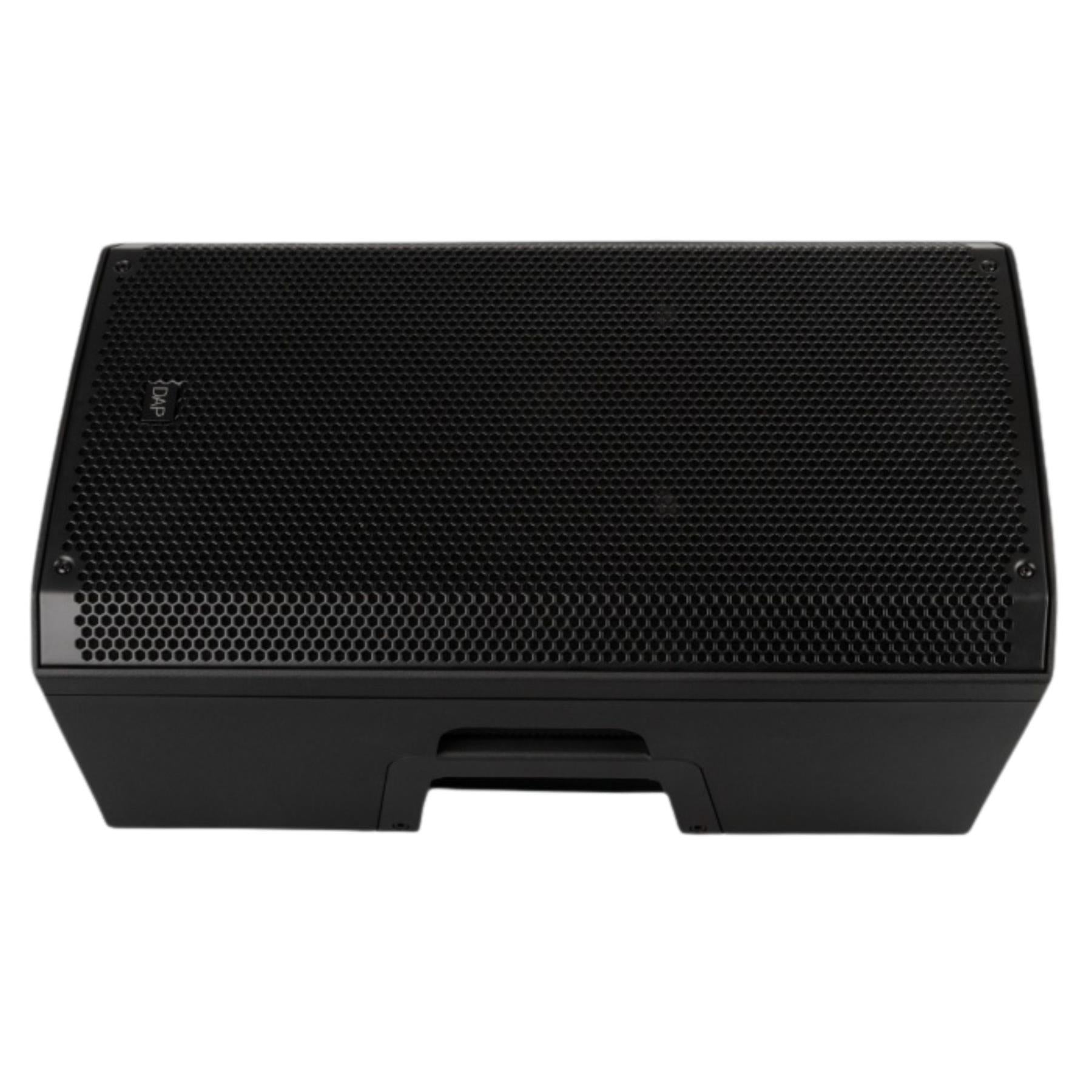

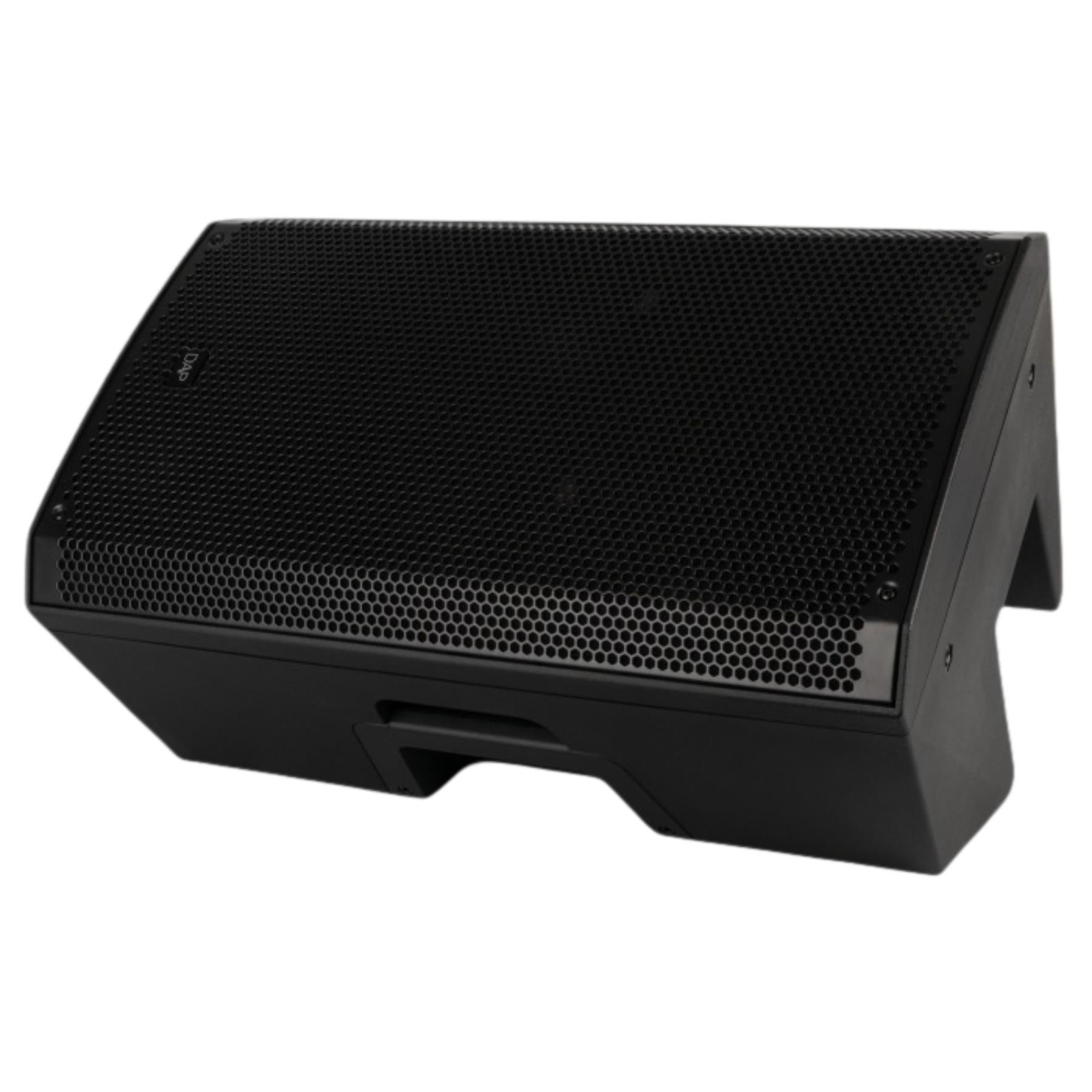

Monitor use: Yes

Dimensions and Weight

Dimensions (H x W x D): 528 x 334 x 314 mm
Weight: 12.52 kg

Environmental

IP rating: IP20
Operating temperature: -20°C to 50°C

Protection

Protection: Clip limiter, overload, thermal
Indicators: Bluetooth pairing LED

Included

IEC power cable
