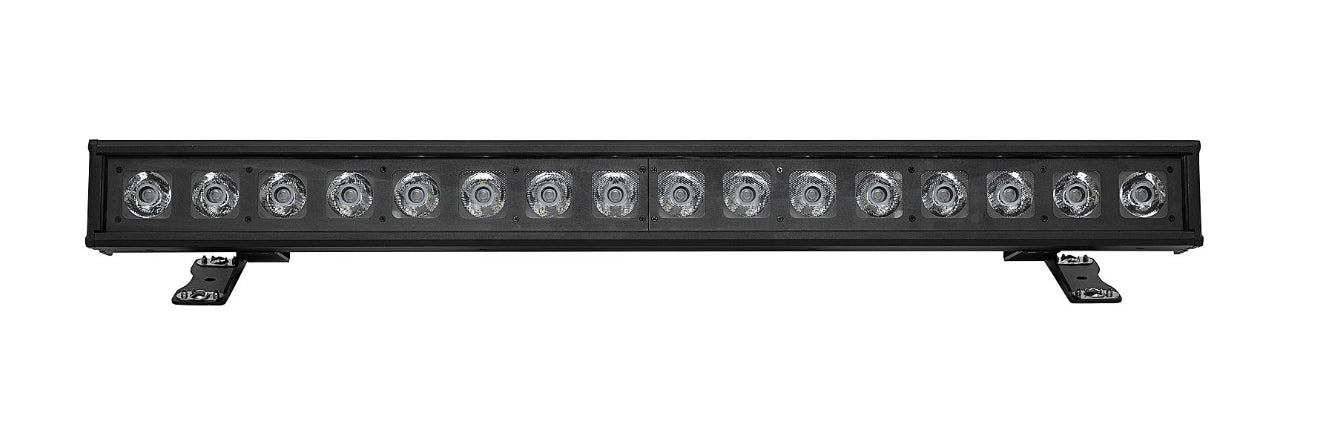

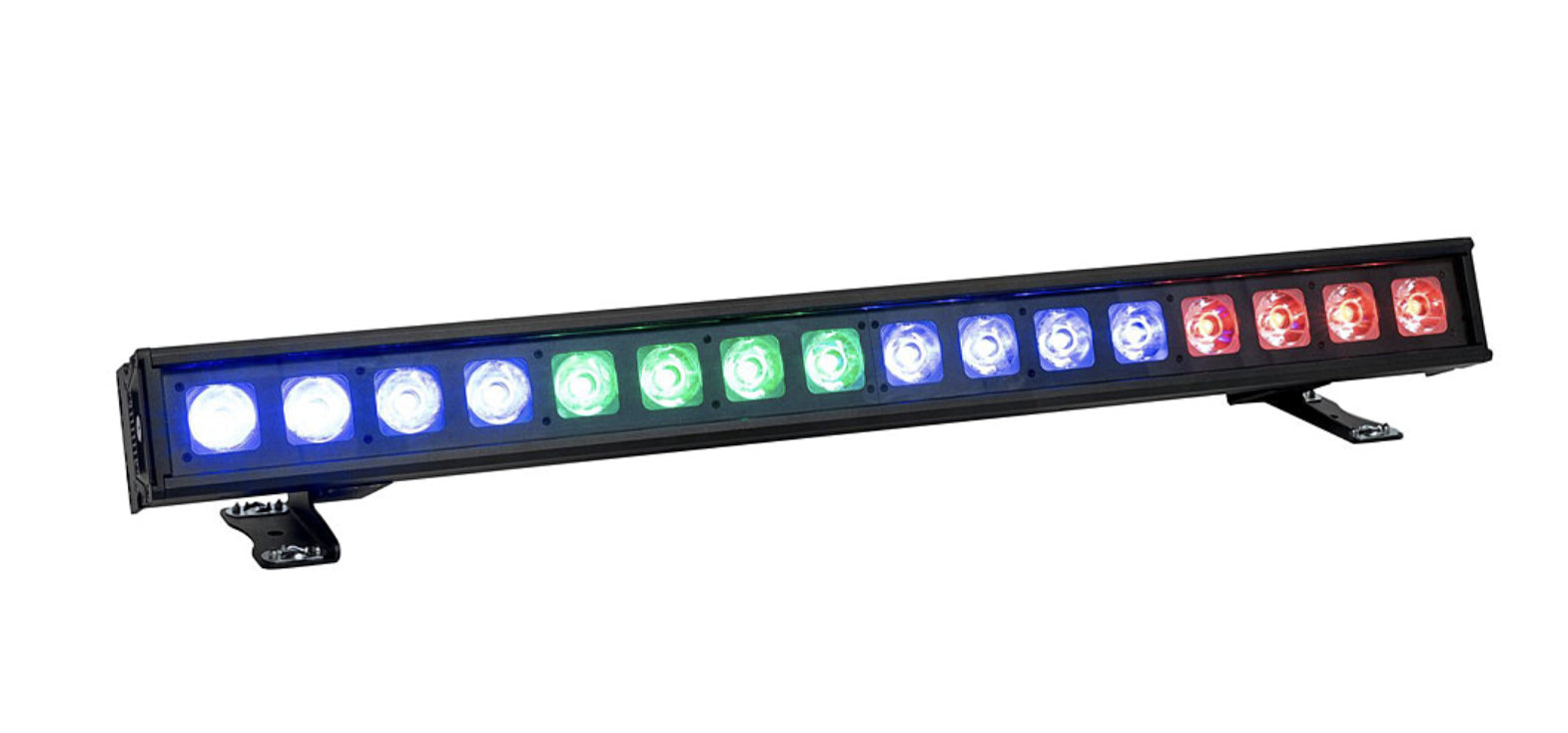

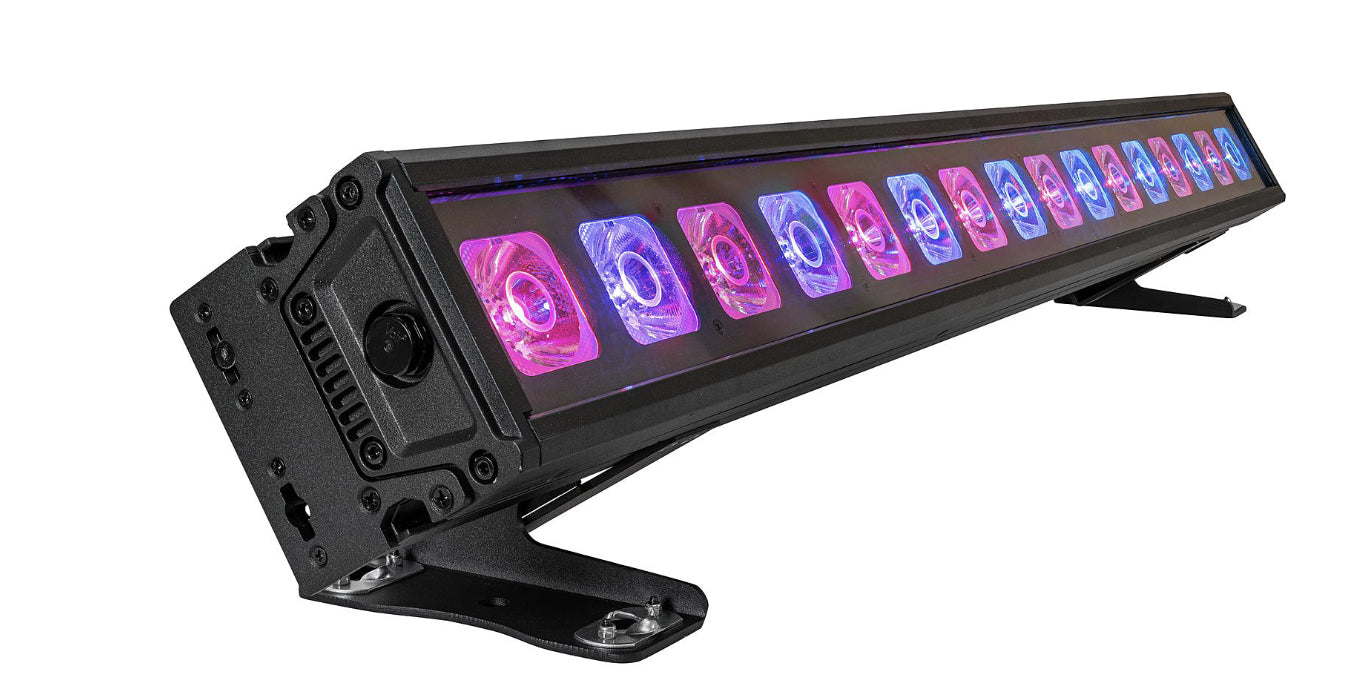

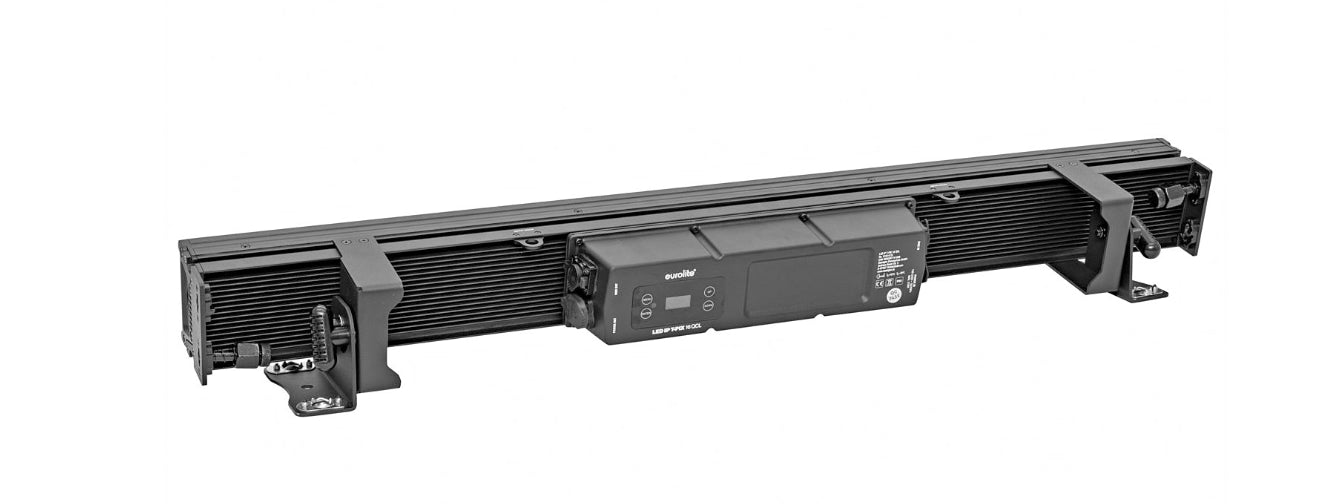

EUROLITE LED IP T-PIX 16 QCL Beam Bar IP65 Outdoor LED 1M Batten

Description

Weatherproof (IP65) beam bar with RGBL color mixing and pixel control
16 powerful LEDs 20 W COB (chip-on-board) 4in1 QCL RGBL
LEDs controlled separately
Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic; dimmer curves; color selection preset; program selection adjustable; running light adjustable; program speed adjustable; color macros preset; pulse-width modulation adjustable
Beam effect
33 integrated show programs
Direct color selection for 16 preset colors
The device is cooled by passive convection cooling
Control via stand-alone; master/slave function; DMX; RDM
Preprogrammed in Light Captain; Colorchief
Flicker-free
RDM For bidirectional communication over the DMX line
DMX fail mode (hold; blackout; static; auto)
With a beam angle of 3°
Variable color temperature 2700 K - 6500 K
With mounting bracket; with omega bracket

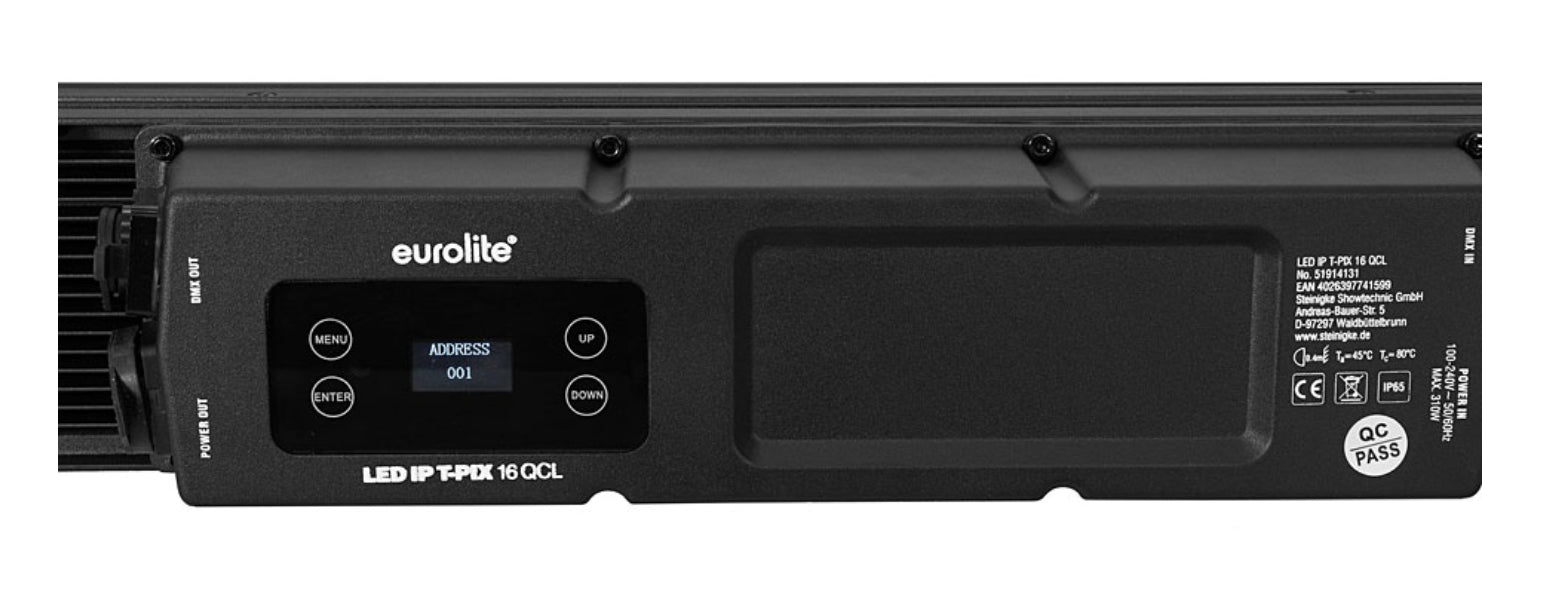

Monochrome OLED display
Mains input and output for power linking up to 8 units
Built with SEETRONIC connector
Suitable for outdoor use IP65
With pressure compensation membrane
For application areas such as: Architecture; stage; clubs/dancing school; wedding/gala/events; restaurants, bars and hotels; theater; rental
Silent operation
Application possibility: Standing; suspended

Power supply: 100-240 V AC, 50/60 Hz
Power consumption: Max. 310 W
IP classification: IP65
Protection class: Protection class I
Power connection: Mains input via IP T-Con (M) mounting version power supply cord with safety plug (provided)
Cable construction: 3 x 1.5 mm² H07RN-F
Power output: IP T-Con (F) mounting version
Lamp type: LED lamp
LED type: 16 x 20 W COB (chip-on-board) 4in1 QCL RGBL
Flash rate: 1 - 25 Hz
DMX channels: 3; 4; 5; 10; 14; 22; 38; 48; 64; 70
DMX input: 3-pin XLR (M) mounting version IP
DMX output: 3-pin XLR (F) mounting version IP
Cooling: Passive convection cooling
Control: Stand-alone; master/slave function; DMX; RDM
Preprogrammed in: Light Captain; Colorchief
Projection: Flicker-free
DMX features: RDM For bidirectional communication over the DMX line
DMX fail mode: Hold; blackout; static; auto
Beam angle: 3°
Beam angle (1/2 peak): 3°
Beam angle (1/10 peak): 6°
Color temperature: 2700K - 6500K adjustable
Housing color: Black matte

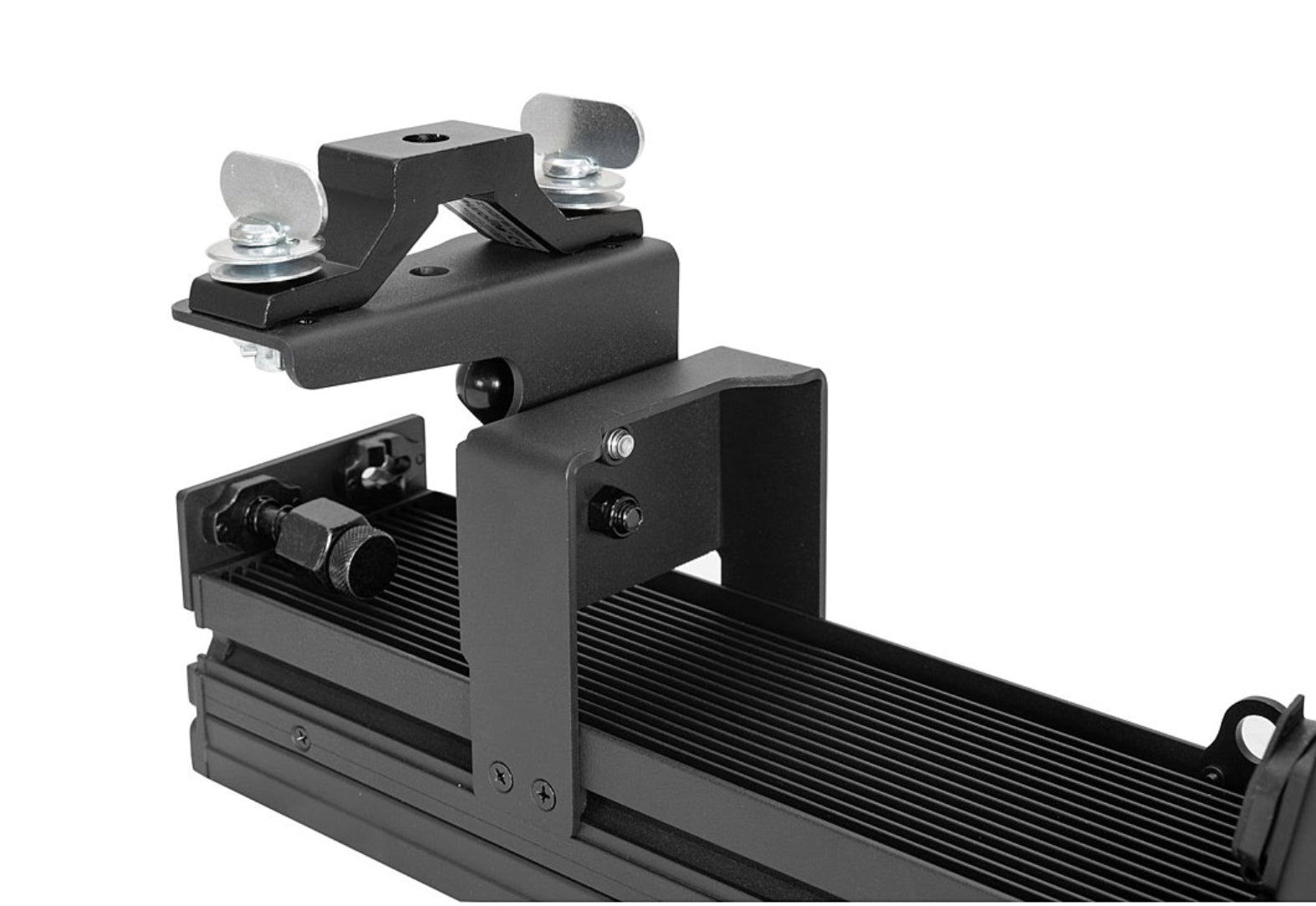

Attachment system: 2x mounting bracket
2x omega bracket
Display type: 1 x monochrome OLED display
Use of brands: Built with SEETRONIC connector
Material: Metal, painted
Dimensions: Length: 100 cm
Width: 9.7 cm
Height: 16.6 cm
Weight: 10.75 kg
Noise classification: Class 0 (no noise at all)
