Eurolite MDM-50 Moving Double Mirror

Description:

The EUROLITE MDM-50 Moving Double Mirror is a creative moving-head mirror effect designed to work perfectly with pinspots, beam moving heads, and narrow-beam fixtures. Combining a rotating mirror half ball, a flat mirror, and an RGB LED ring, it delivers classic mirror ball reflections with the added flexibility of dynamic pan and tilt movement.

On one side of the head, the rotating mirror half ball produces traditional disco-style reflections with adjustable rotation speed and direction. On the opposite side, the flat mirror redirects light beams deeper into the room, creating striking aerial effects when used with haze. The head can also rotate continuously, allowing smooth transitions between the mirror ball and flat mirror surfaces for constantly changing visual effects.

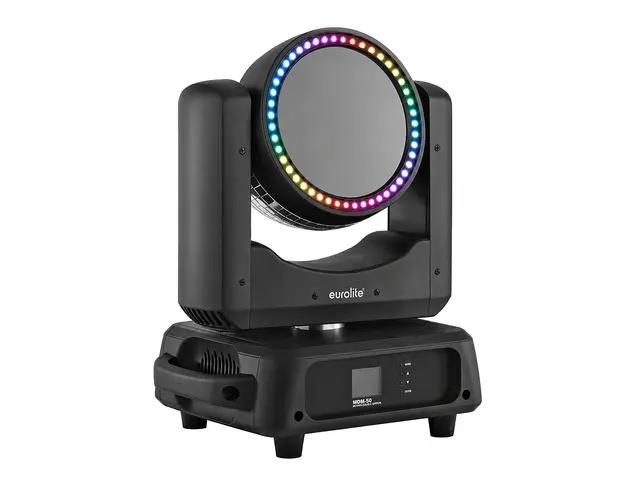

A ring of 50 RGB SMD LEDs adds coloured accents and chase effects, with 25 individually controllable segments for detailed programming. With multiple DMX channel modes, RDM support, optional wireless DMX compatibility, sound-to-light operation, master/slave functionality, and silent passive cooling, the MDM-50 is ideal for clubs, weddings, stages, theatres, shop windows, and event installations requiring a distinctive and versatile mirror effect.

Features

Moving head with rotating mirror half ball, flat mirror and coloured LED ring
Ideal for use with pinspots and beam moving heads
50 SMD 5050 RGB LEDs with homogeneous colour mixing
25 separately controllable LED segments
540° pan and 360° tilt movement
Continuous head rotation for changing mirror effects
Auto position correction with feedback
Exact 16-bit positioning
Adjustable dimmer, colour blend and colour macros
Adjustable mirror rotation direction and speed
Multi-beam mirror effect
4 integrated show programmes
Stand-alone and sound-to-light operation
DMX, RDM and master/slave control
Optional QuickDMX, W-DMX and CRMX wireless control via USB
Flicker-free projection
120° ambient light beam angle
Passive convection cooling for silent operation
Multicolour LCD display
Power input and output for linking up to 8 units
Includes omega bracket
2 rugged carrying handles
4 rubber feet for standing use
Suitable for standing or suspended installation
Ideal for clubs, weddings, events, stages, theatres and shop windows

Specifications

Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 25 W
Protection class: Protection class I
Power connection: Mains input via P-Con blue mounting version with safety plug power cord
Power output: P-Con grey mounting version
Fuse: 5 x 20 mm, T 0.5 A replaceable fuse
Lamp type: LED lamp
LED type: 50 x SMD 5050 3in1 RGB
LED colour mixing: Homogeneous colour mix
Pan movement: 540° exact positioning with 16-bit resolution and auto position correction
Tilt movement: 360° exact positioning with 16-bit resolution plus infinity and auto position correction
Flash rate: 0.5 - 34 Hz
DMX channels: 10, 14, 16, 25, 88
DMX input: 3-pin XLR male and 5-pin XLR male mounting versions
DMX output: 3-pin XLR female and 5-pin XLR female mounting versions
Cooling: Passive convection cooling
Control: Stand-alone, sound-to-light via microphone, DMX, master/slave, RDM, QuickDMX via USB optional, W-DMX via USB optional, CRMX by LumenRadio via USB optional
Projection: Flicker-free
PWM frequency: 4100 Hz
DMX fail mode: Hold, zero values
Beam angle: 120° ambient light
Beam angle 1/2 peak: 120°
Beam angle 1/10 peak: 120°
Housing colour: Black
Attachment system: 2 x omega bracket
Display type: Multicolour LCD display
USB port: Type A
Carrying handles: 2
Transport aid: 4 x rubber feet
Dimensions: 326 x 242 x 436.1 mm
Weight: 8.70 kg
Noise classification: Class 0, no noise at all
Special product: Not designed for household room illumination
Intended use: Show effect lighting
