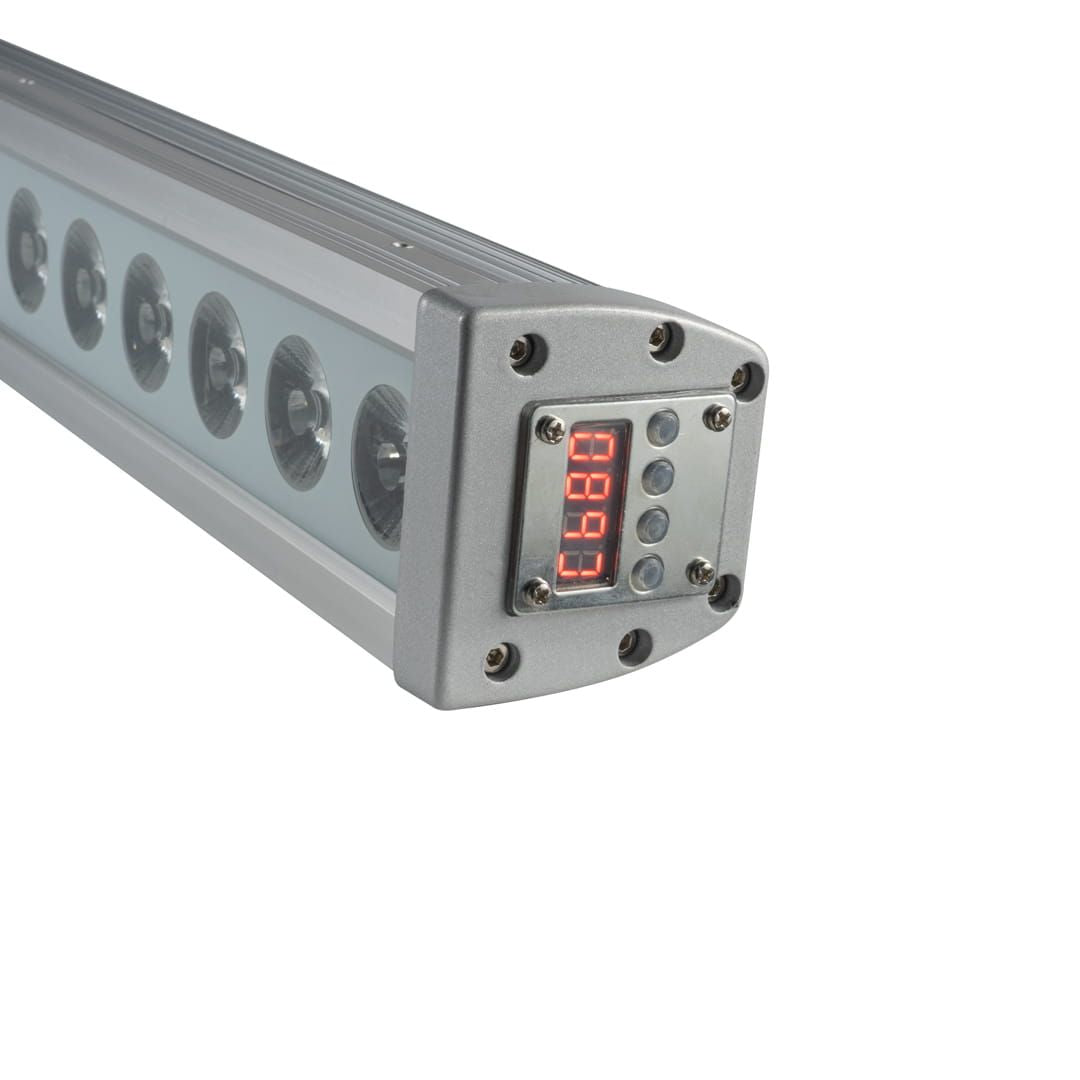

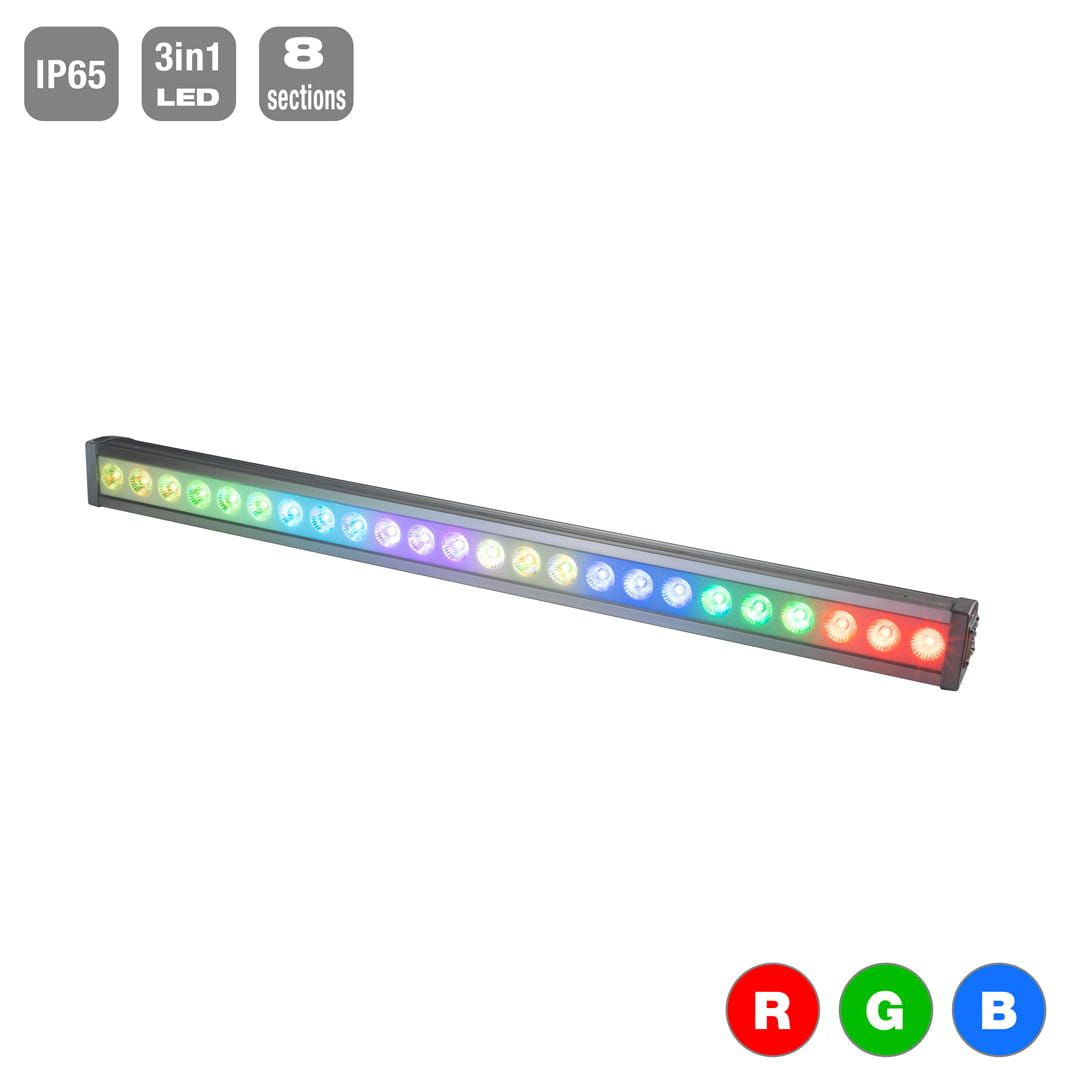

Flash LedBar 243 RGB IP 24 x 3W RGB LED Bar DMX

The LedBar 243 RGB IP is a professional-grade LED wash bar equipped with 24 high-quality 3W RGB LEDs, offering vibrant colour output with smooth 8-bit mixing and precise multi-zone control. Built for demanding environments, it features an IP65-rated aluminium housing, making it ideal for outdoor architectural lighting, fixed installations, and stage setups.

This 1-metre fixture is divided into 18 independently controllable sections, allowing dynamic effects such as chases, fades, and pixel mapping. It supports multiple operation modes including DMX512, sound control, auto-run, and master/slave, giving flexibility across different control setups. The sealed DMX and power connectors, passive cooling, and double mounting bracket ensure long-lasting, reliable use even in harsh weather.

Features
24 x 3W RGB LEDs with smooth 8-bit colour mixing
18 control sections for advanced pixel effects
Waterproof aluminium housing (IP65-rated)
Fixed beam angle for consistent directional wash
Multiple control modes: DMX512, Sound, Auto, Master/Slave
5 DMX modes with selectable channel profiles (5–50 channels)
Strobe effects with adjustable pulse and random flash (1–20Hz)
Segmented LED display and physical control buttons
Sealed DMX and power connectors with IN/OUT passthrough
Dual mounting brackets for flexible positioning

Specifications
Power Supply: 100–240V AC, 50/60Hz
Power Consumption: 80W
Light Source: 24 x 3W RGB LEDs
CRI: 65
Colour Mixing: RGB 8-bit
Dimming: 8-bit smooth control
Beam Angle: Fixed
Strobe: 1–20Hz with pulse and random modes
Control Protocol: DMX512
DMX Channels: 5 to 50
Control Modes: DMX, Sound Active, Auto, Master/Slave
Display: 7-segment LED with physical buttons
Cooling: Passive
Housing: Aluminium
Ingress Protection: IP65
Connectors: 3-pin hermetic AC IN/OUT, DMX IN/OUT
Mounting: Dual bracket with mounting holes
Dimensions (L x W x H): 100 x 12.5 x 8 cm
Weight: 3.6 kg
Colour: Silver
