Fonestar TAB-10-16 – 10″ Android POE Touch Screen Control Panel for NMX Series Matrix Systems

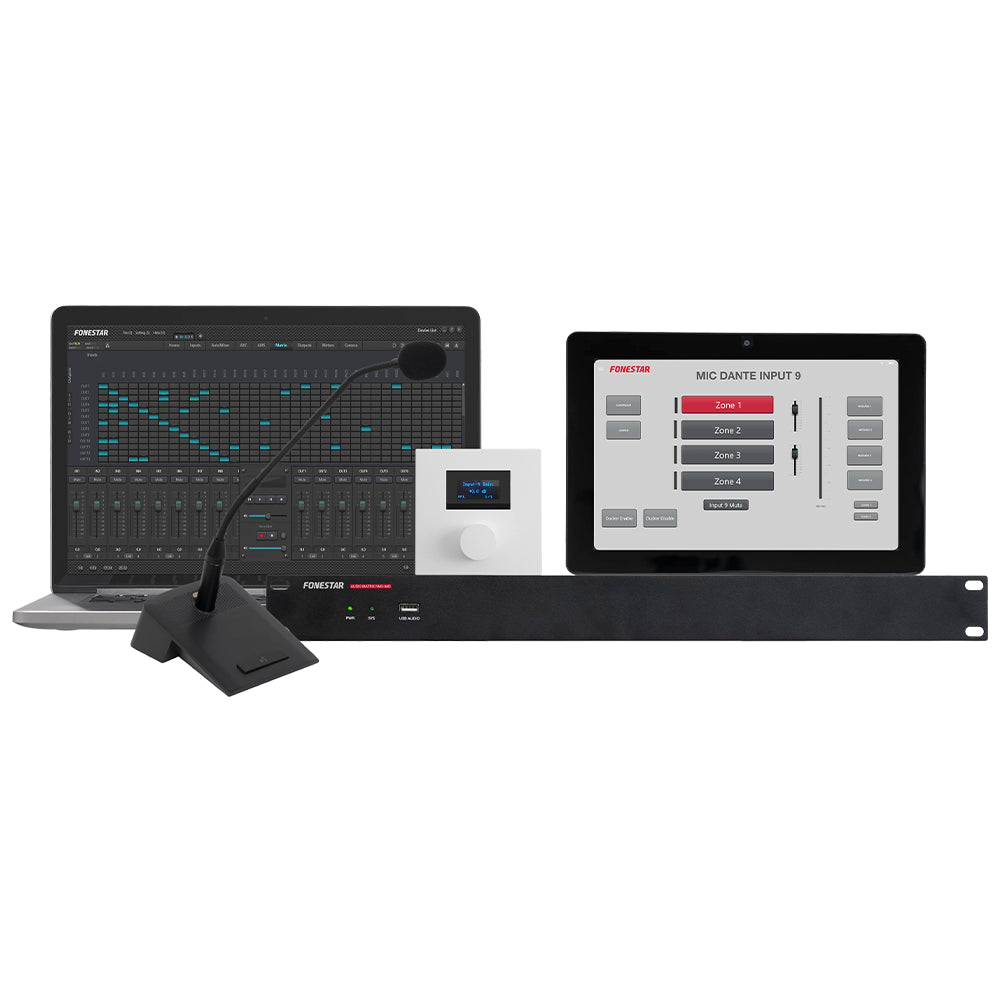

The Fonestar TAB-10-16 is a 10″ Android-based touchscreen control panel designed specifically for intuitive operation of NMX Series audio matrix systems. Ideal for environments like bars, restaurants, hotels, conference rooms, and shopping centres, it delivers a streamlined, user-friendly interface that allows for local zone control without accessing the full matrix configuration.

Running the NMX control app (available for Android and iOS), this customisable interface allows users to manage volume, gain, mute functions, recall scenes, and trigger special commands via UDP, RS-232, or RS-485. Configuration and programming are handled through PC control software, making it easy to tailor the interface to suit any venue or user need.

Equipped with RJ45 Ethernet for a stable connection, the tablet supports Power over Ethernet (POE) and comes with a wall mount for clean, professional installation. Multiple tablets can be deployed within a single system, offering flexible multi-zone control.

Features
10” Android touchscreen (2G RAM + 16G storage)
Runs NMX Series matrix control app (Android/iOS)
Customisable via PC software
Supports commands via UDP, RS-232, RS-485
Volume, gain, mute, and scene recall functions
RJ45 Ethernet connection
Supports POE and 12V DC (1.5A) power input
Multiple tablets supported per installation

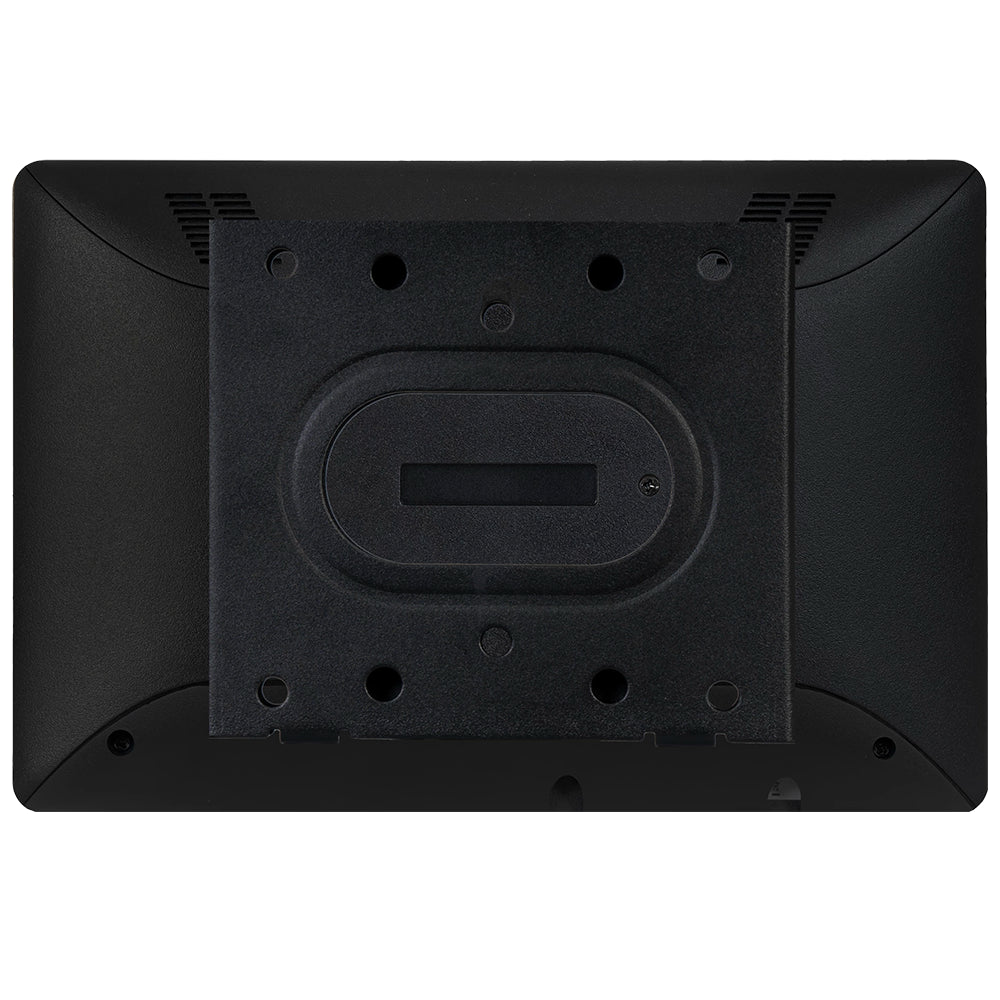

VESA 75 x 75 mount compatible
Ideal for local zone control in commercial AV setups

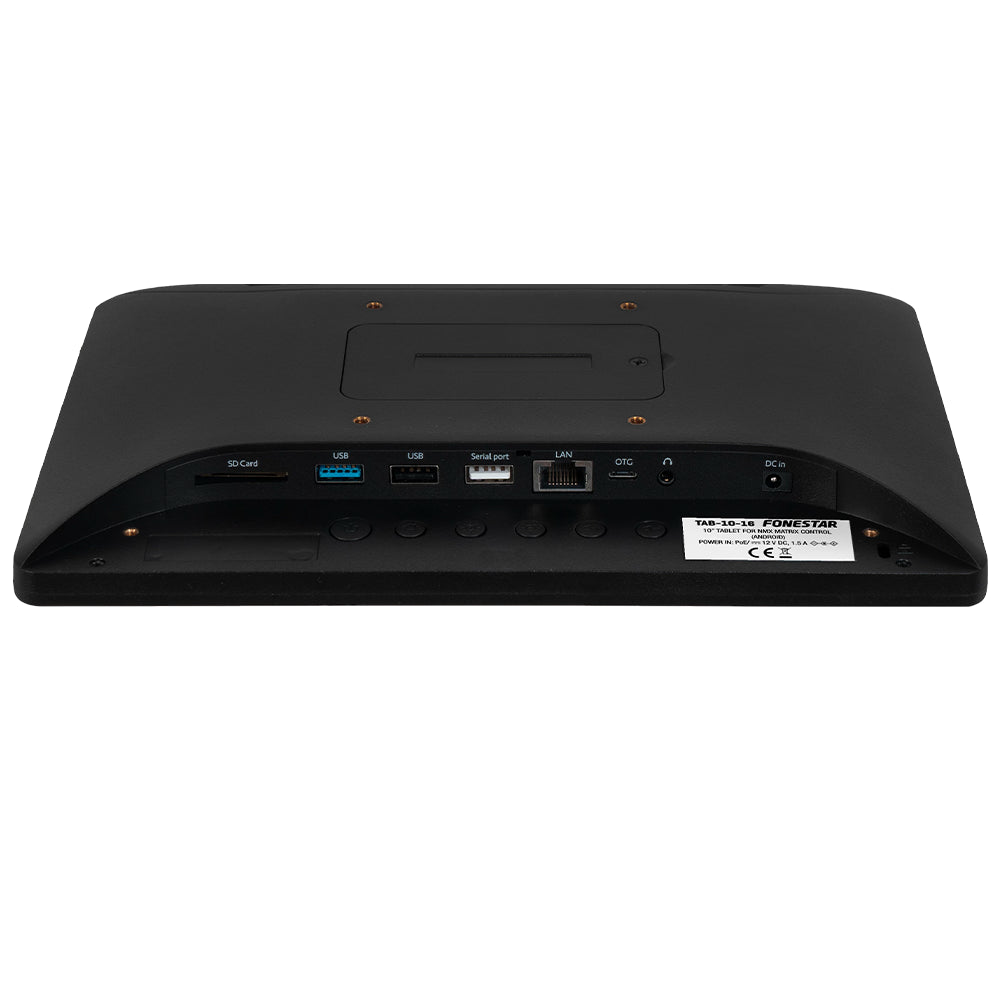

Inputs/Outputs
1 x LAN (RJ45)
2 x USB Type A
1 x USB serial port
1 x Micro USB OTG
1 x SD card slot
1 x 3.5 mm headphone output

Controls
Power, home, brightness, volume buttons

Specifications
Power Supply: POE and/or 12 V DC, 1.5 A
Dimensions (H x W x D): 17 x 25.5 x 3 cm
Weight: 0.8 kg
Colour: Black

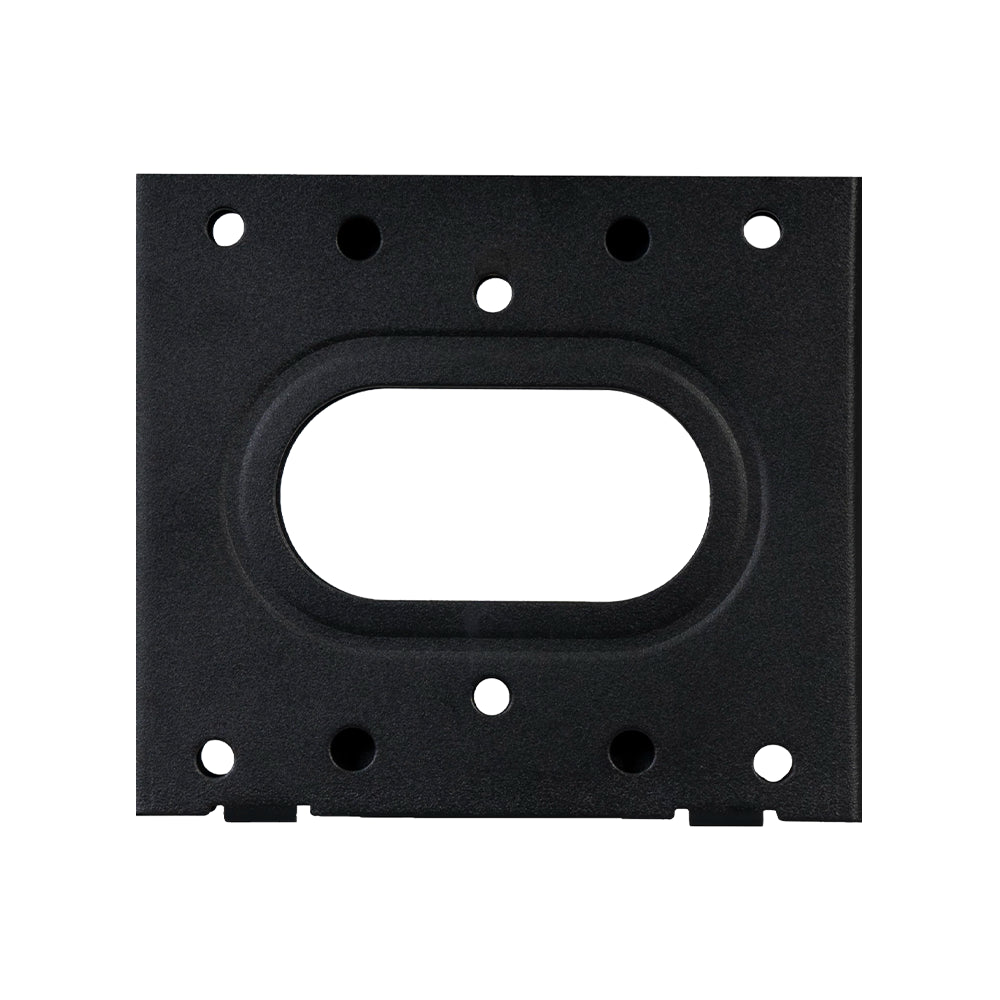

Accessories Included: Wall installation mount
