Global Truss F34 Standard Corner 3 Way 90 Degree Black

Description:

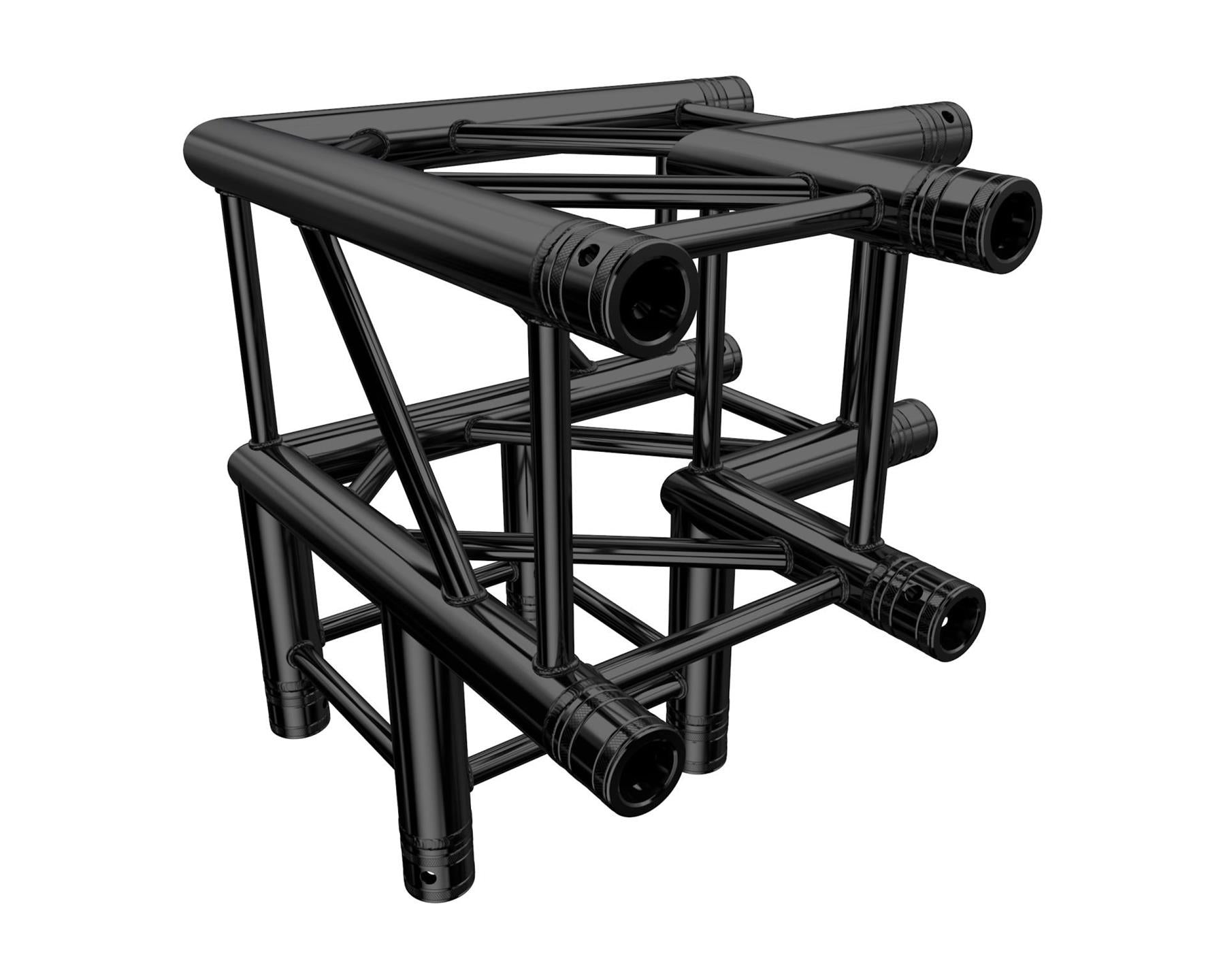

The Global Truss F34 C30 3-way 90° corner is a versatile 4-point truss component designed for creating complex structural configurations with precision and strength. With an external dimension of 290mm, the F34 system is widely used in stage, exhibition, and event environments due to its excellent load capacity relative to its size and weight.

This 3-way corner allows three truss sections to connect at right angles, making it ideal for building cube frames, exhibition booths, truss grids, and multi-directional rigging structures. Its design provides flexibility for custom builds while maintaining structural integrity.

Constructed from high-quality aluminium (Al EN AW-6082 T6), it features 50 x 2mm main tubes and 20 x 2mm diagonal bracing, ensuring durability and reliable performance. The black powder-coated finish offers a clean and professional appearance, blending seamlessly into stage and event environments.

Supplied with conical connectors, pins, and R-clips, it enables fast, secure, and tool-free assembly. Please note: this corner is not TÜV certified.

Features:

Type: 3-Way 90° Corner (C30)
Series: Global Truss F34
System: F34
Finish: Black powder coated

Construction: Aluminium (Al EN AW-6082 T6)
Wall Thickness: 2mm
Main Tube: 50 x 2mm
Brace Diameter: 20 x 2mm
Edge Dimension: 290mm

Design: 3-way 90° connection for cube frames and complex structures
Number of Points: 4-point

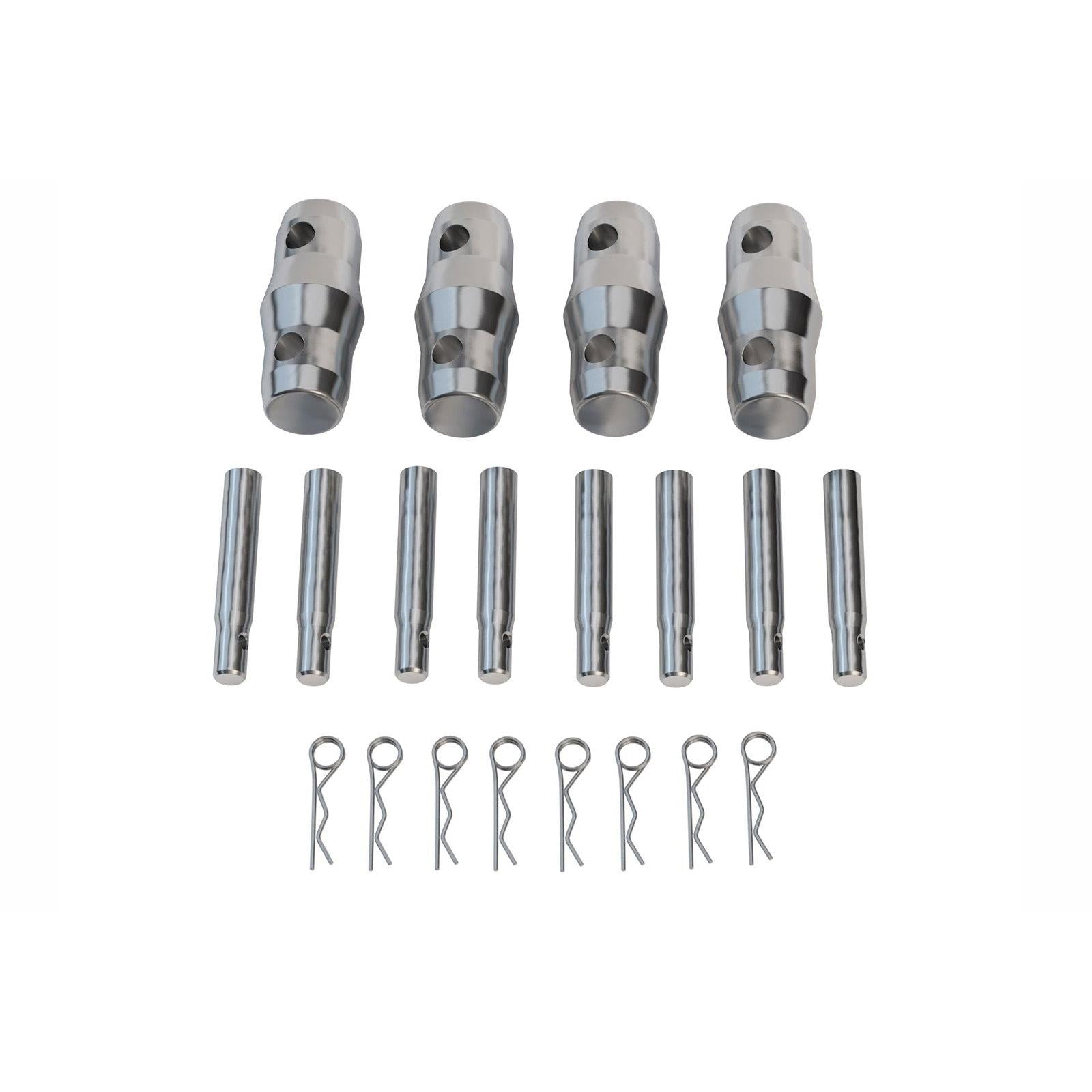

Included Hardware:
4 x Conical connectors
8 x Pins
8 x R-Clips

Application: Stage, events, exhibitions, and custom truss builds
Assembly: Quick and secure conical connection system

TÜV Certification: No

Dimensions (L x W x H): 500 x 500 x 500mm

Shipping Dimensions (L x W x H): 500 x 500 x 500mm
Shipping Weight: 8.45kg
