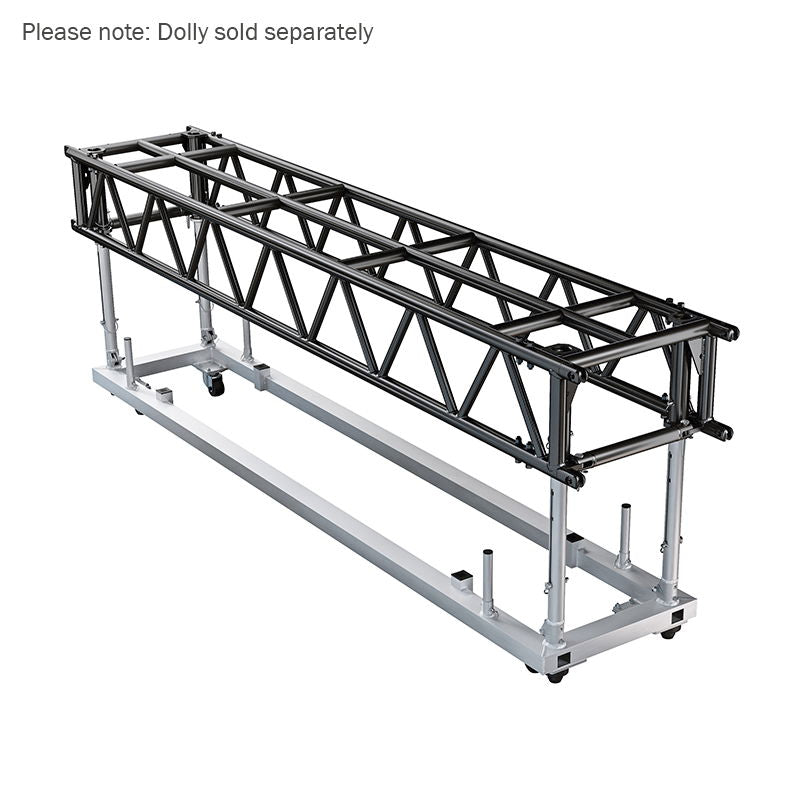

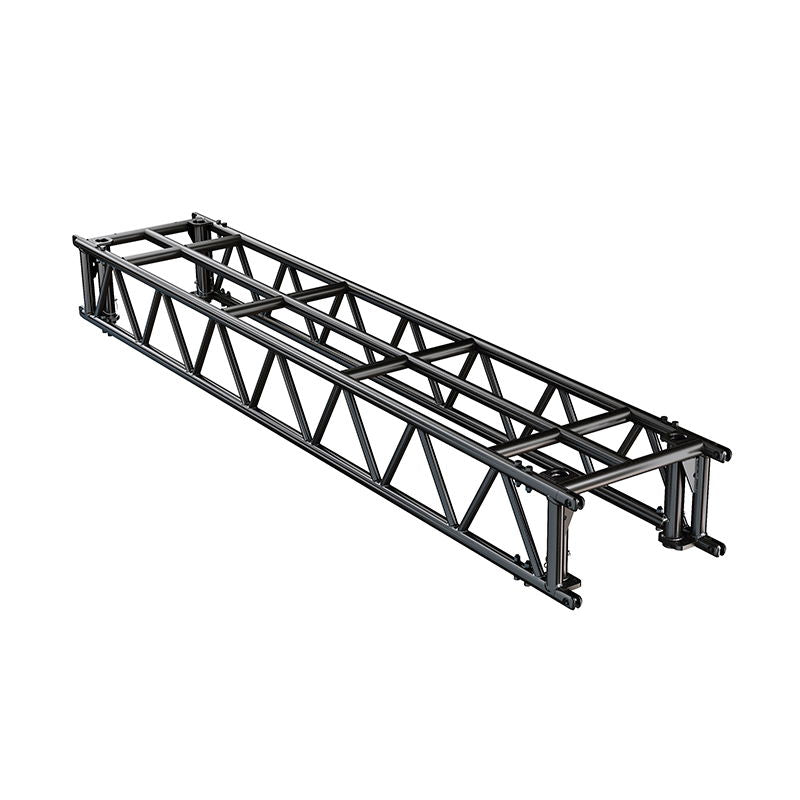

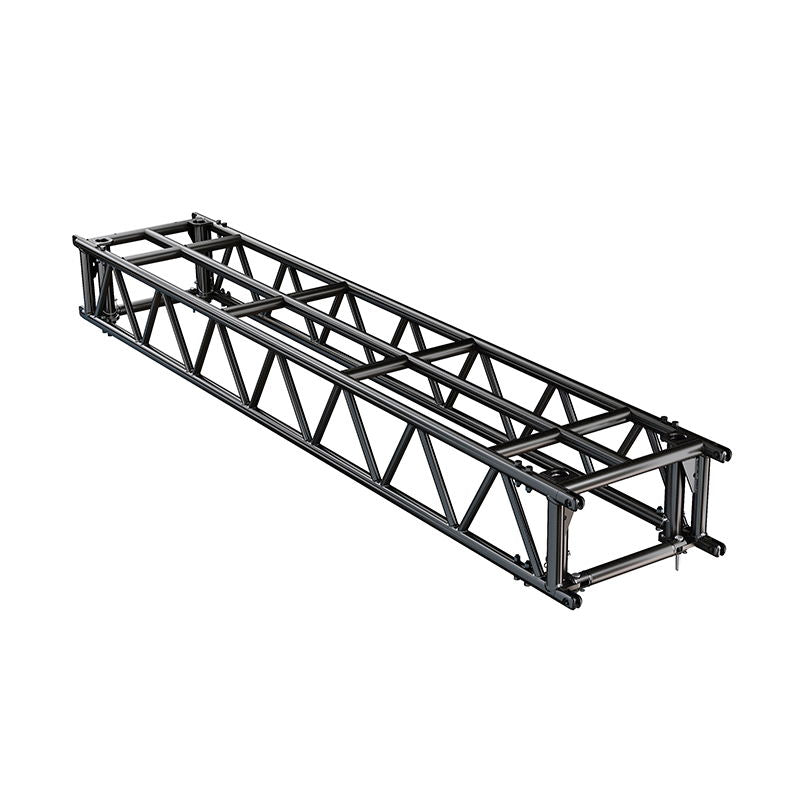

Global Truss Pre Rig Truss 3.2M (PR-TRUSS-3200B) Stage Black

The 3.2m PreRig Truss is a heavy-duty, precision-engineered solution designed for rapid deployment in demanding stage and touring environments. With pre-installed technology and an integrated GT Gate system, it allows for seamless mounting of equipment and LED screens, significantly reducing setup time.

Its five-point configuration provides outstanding structural integrity for supporting large spans and heavy loads. Crafted from high-grade EN AW 6082 T6 aluminium, this truss supports both horizontal and vertical mounting. Adjustable connectors can rotate 90° and accept bolt-on accessories up to 60mm in diameter, enhancing flexibility during installation.

Finished in stage black for low-visibility stage presence, this truss system is optimised for fast, secure setup and includes pins and R-clips for quick assembly.

Specifications
Length: 3.2m
System: PreRig, straight section
Material: EN AW 6082 T6 aluminium
Main tube: 48.5mm diameter, 4.5mm wall thickness
Braces: 30mm diameter, 3mm wall thickness
Edge dimensions: 600 x 350mm
Overall dimensions (L x W x H): 3250 x 600 x 350mm
Number of points: 5-point
Colour: Stage Black

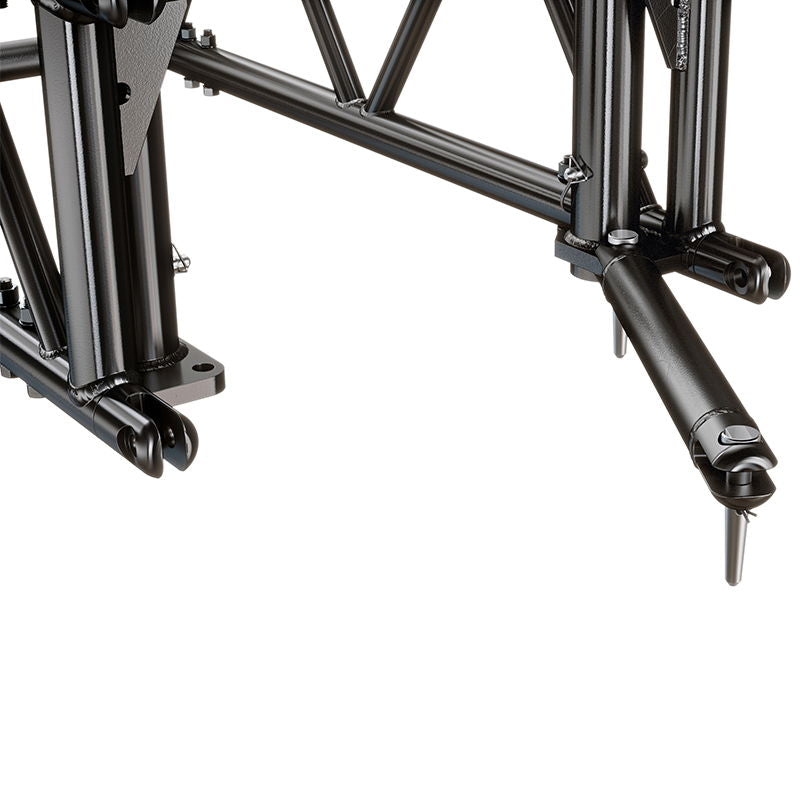

Connectors: 90° rotatable with optional 60mm bolt-on compatibility
Included: Pins and R-clips
