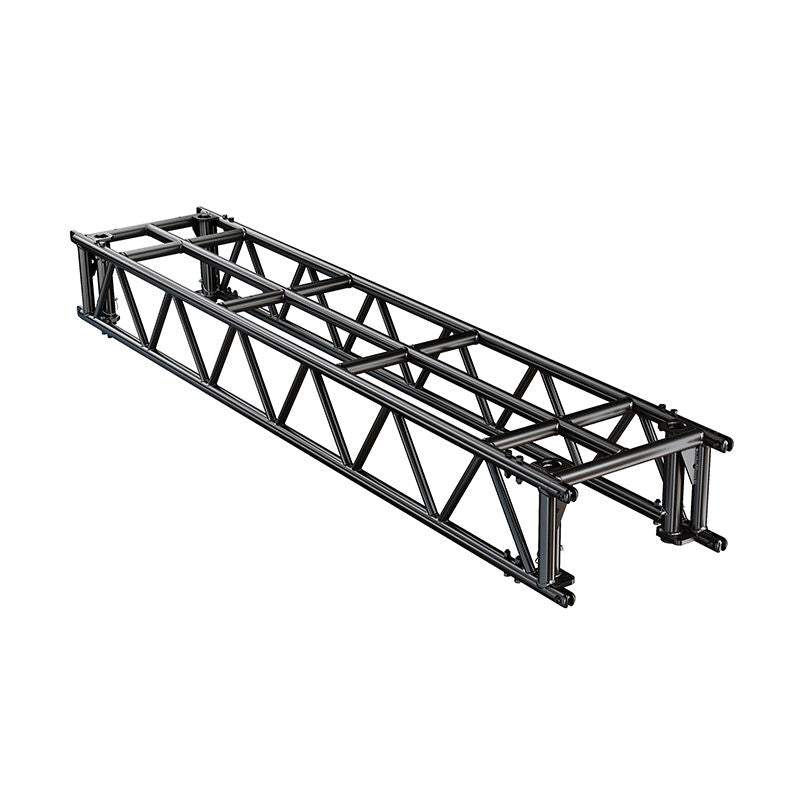

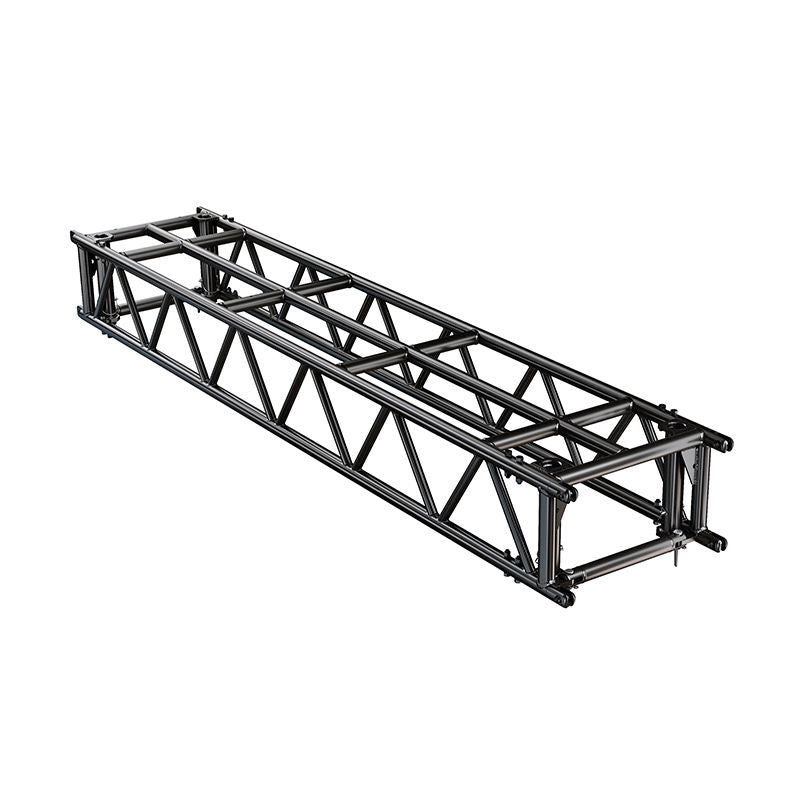

Global Truss Pre Rig Truss 3M (PR-TRUSS-300B) Stage Black

The PreRig Truss is a robust and versatile solution designed to significantly reduce setup time in demanding staging environments. Engineered for professionals in touring, events, and installations, this pre-rigged truss allows for lighting fixtures and LED screens to be mounted within the structure before deployment, ensuring faster on-site rigging.

Its integrated GT Gate system offers secure and streamlined attachment points for equipment, while the 5-point configuration provides exceptional load-bearing capacity and stability. Constructed from EN AW 6082 T6 aluminium alloy, the truss is built for strength and long-term durability. The design supports both horizontal and vertical installation, and features adjustable 90° rotating connectors with optional bolt-on capability for tubes up to 60mm in diameter.

Finished in a sleek stage black powder coat and optimized for rapid deployment, the system comes complete with pins and R-clips for secure assembly.

Key Features
Pre-installed stage technology for faster setup
GT Gate for easy equipment and LED screen attachment
Supports large spans and heavy loads with high stability
Horizontal and vertical installation capability

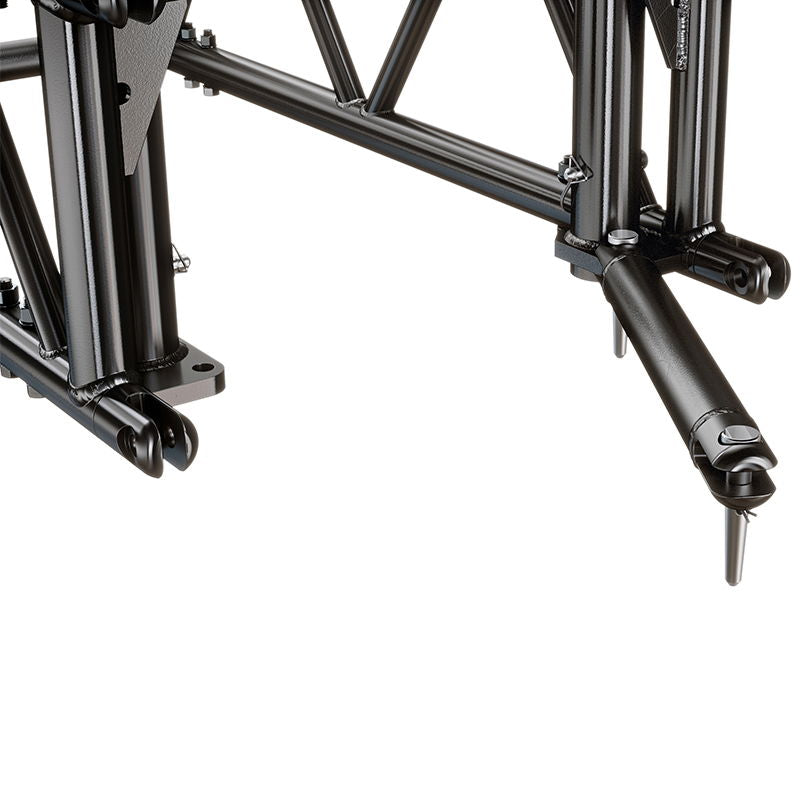

Adjustable connectors rotate 90°, optional bolt-on up to 60mm
Durable aluminium construction
5-point truss system
Colour: Stage Black
Optimised for rapid deployment
Pins and R-clips are included

Specifications
Material: EN AW 6082 T6 aluminium
Number of Points: 5-point
Edge Dimensions: 600 x 350 mm
System Type: PreRig
Truss Type: Straight
Truss Length: 3000 mm
Main Tube Diameter: 48.5 mm
Main Tube Wall Thickness: 4.5 mm
Brace Diameter: 30 mm
Brace Wall Thickness: 3 mm
External Dimensions (L x W x H): 3050 x 600 x 350 mm
