HK Audio LINEAR 9 112 XA 12" Active Loudspeaker

Description

The dispersion angle of each speaker’s horn is optimised for its intended use. The 12" LINEAR 9 112 XA speaker offers a dispersion angle of 70° x 50 for medium sound coverage depths. It can be rigged either via the rigging points (steel cables or chains in combination with the AP-8 attachment point) or with the TB-28N tilt bracket.

Concept: Active 2-way loudspeaker
Cabinet Principle: Bass reflex
Max SPL (average): 128 dB
Max SPL (peak): 131 dB
Crossover Frequency: 1.6 kHz
Frequency Range (-6 dB): 67 Hz – 19 kHz
Frequency Range (-10 dB): 62 Hz – 20 kHz
Dispersion Angle (-6 dB, horizontal × vertical): 70° × 50°, rotatable

Mid/High Frequency Driver: 1 × 12" cone speaker, 2.5" voice coil
High Frequency Driver: 1 × 1" compression driver, 1.7" voice coil
Horn: Constant directivity horn, rotatable

Analog Input: 1 × XLR/jack combo (balanced)
Analog Output: 1 × XLR (balanced)
DSP Output: 1 × XLR (balanced)
Network Input: 1 × Ethercon RJ45
Network Output: 1 × Ethercon RJ45

Preamplifier: DSP preamplifier
Power Amplifier: Class D, bi-amped
Power Amplifier Output (RMS): 700 W
Power Consumption: 1 A / 100–240 V nominal (according to EN 62368-1)
Maximum Input Level: +20 dBu
Speaker Protection: RMS / Peak Limiter
Sample Rate: 96 kHz
Latency: under 2.6 ms
DSP Functions: 10-band parametric EQ with variable filter characteristics, high-pass filter, low-pass filter, polarity, level, delay, limiter, mute
Remote Software: HK Audio DSP Control (Windows, macOS)
Filter Presets: Flat, Monitor, Low Cut, Remote
Digital Audio Transmission: MILAN

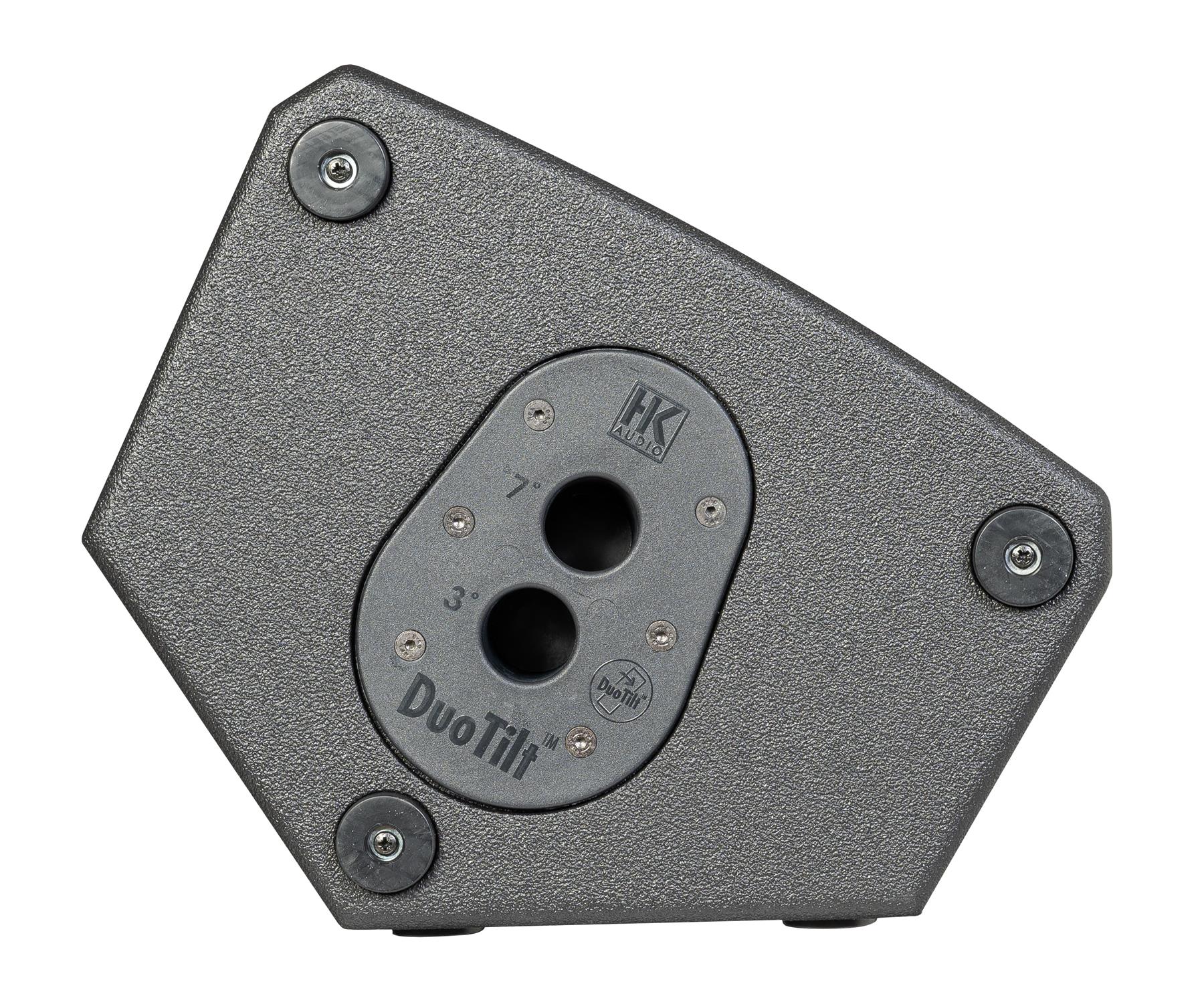

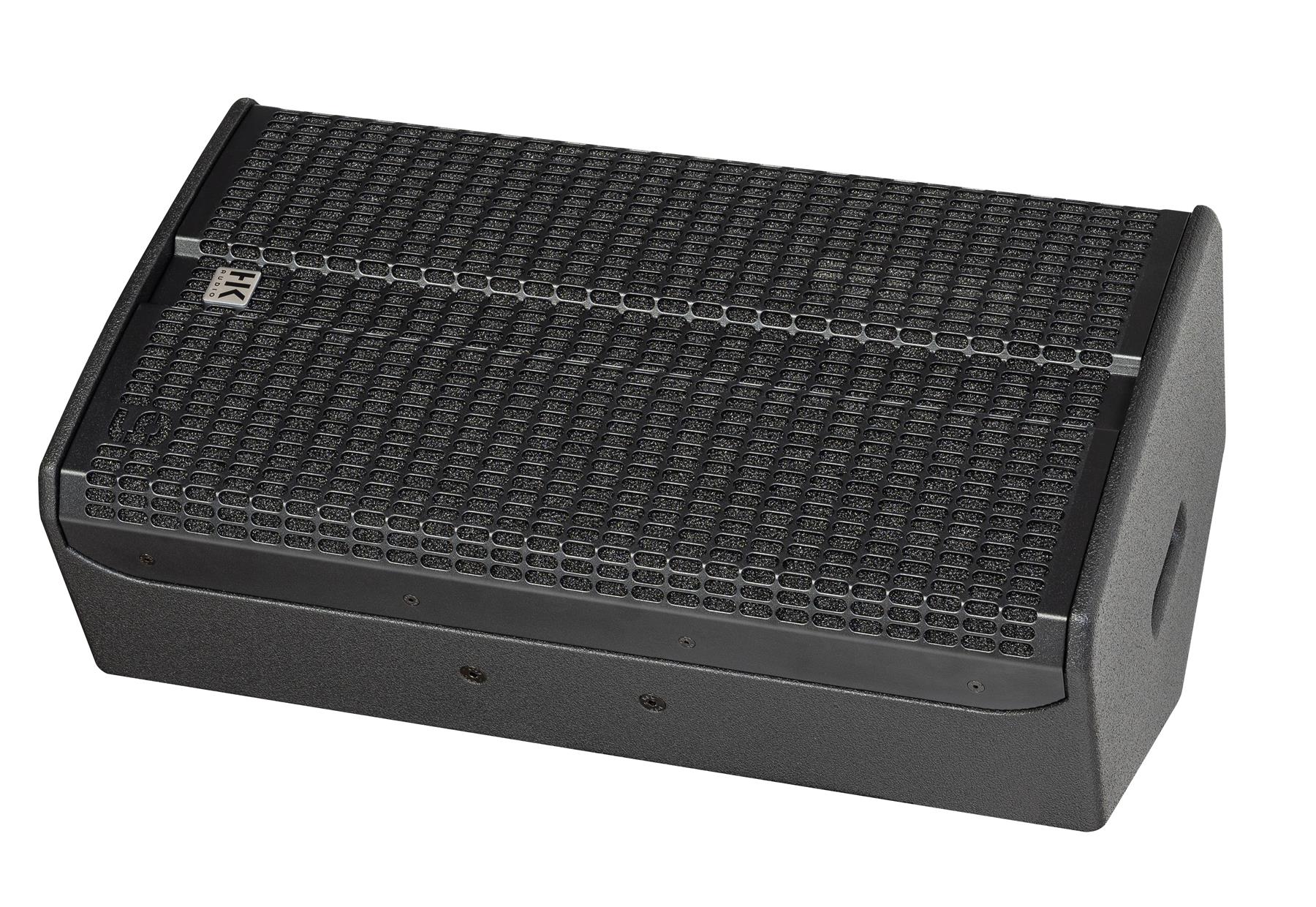

Cabinet Features / Rigging: Pole mount HK Audio DuoTilt 3° / 7°, monitor angle 30°, 5 × rigging point M8
Carrying Handles: 1 × SingleGrip, 1 × HK Audio MultiGrip
Cabinet Material: Birch plywood
Cabinet Surface: PU coating
Color: Jet black (RAL 9005)

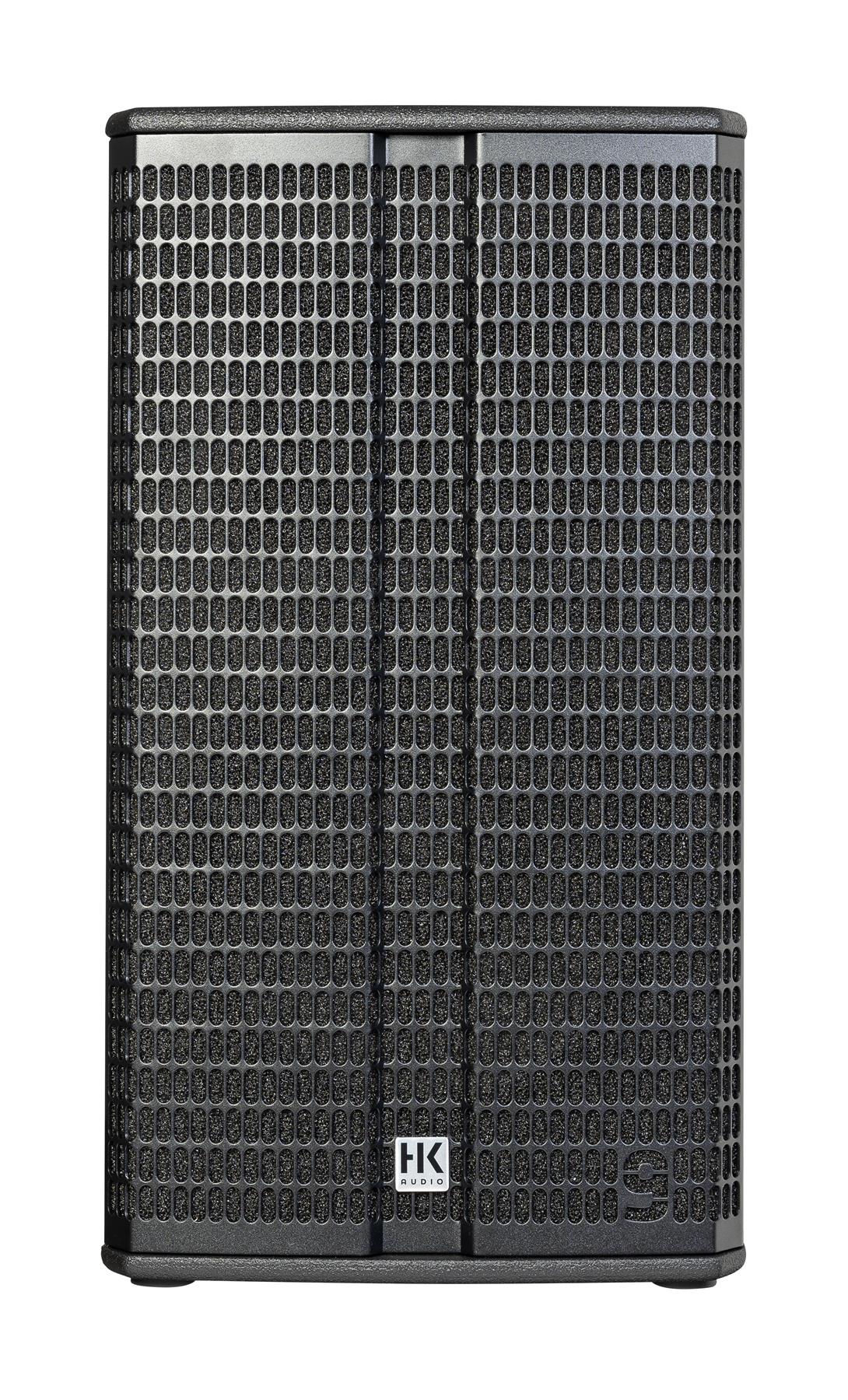

Front Grille: Steel front grille with anticorrosive coating and backed acoustic foam
Dimensions (W × H × D), Metric: 37 × 67 × 31 cm
Dimensions (W × H × D), Imperial: 14-9/16 × 26-3/8 × 12-7/32 inch
Weight, Metric: 20.5 kg
Weight, Imperial: 45.2 lbs
