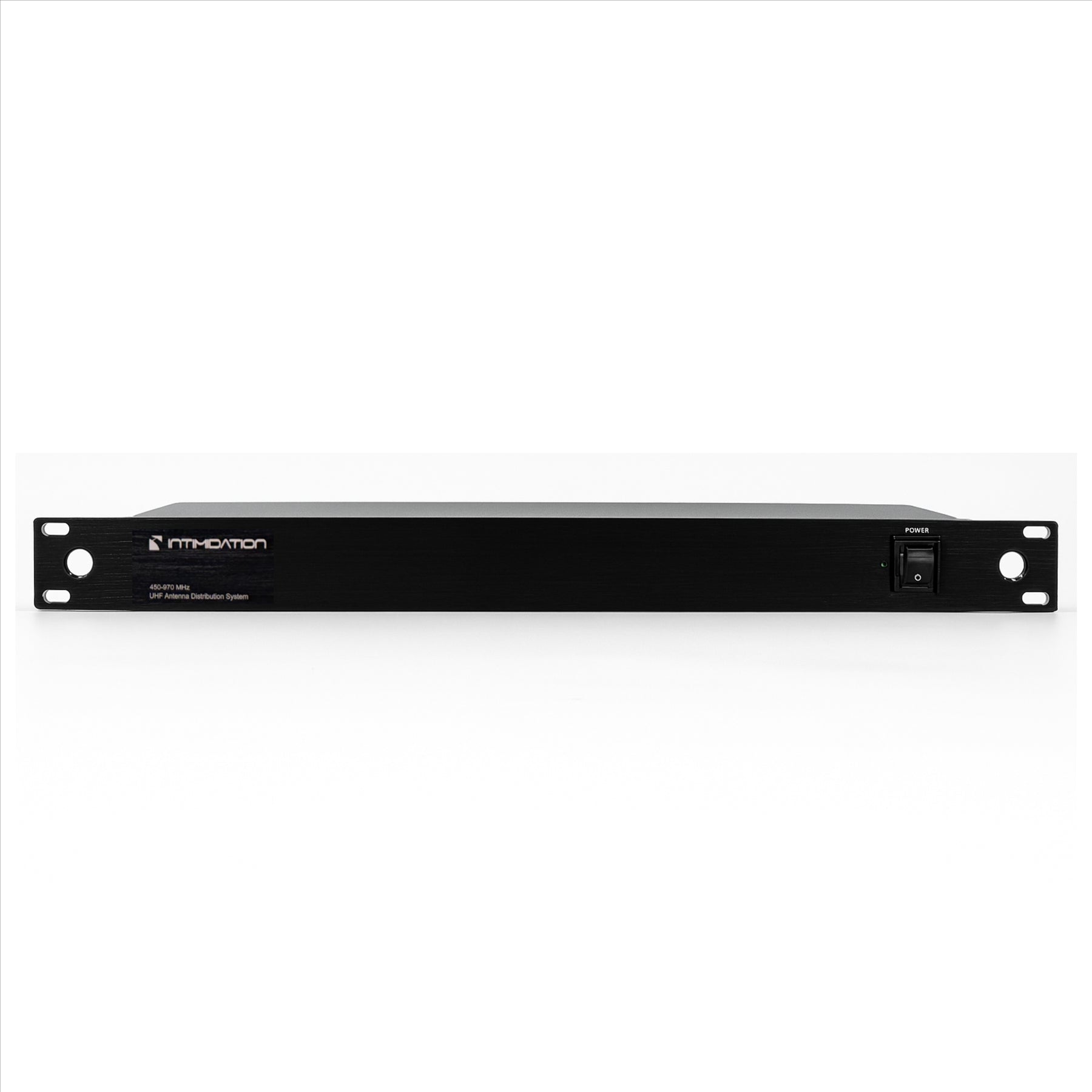

Intimidation UHF Antenna Distribution Unit 4 Way Wireless System Splitter

Intimidation Antenna Distro is a UHF wideband antenna splitter designed for use with up to four radio microphone receivers. Its dual 1:4 configuration supports diversity systems and is compatible with two Intimidation active antennas or most BNC-connected UHF antennas. reducing intermodulation and resultant RF signal dropout in multi channel setups.

The real benefit lies in its compatibility with third-party wireless systems that operate in the UHF frequency range of 470MHz to 865Mhz. The antenna splitter picks up the signal from two antennae and distributes it to four pairs of antenna outputs, which can then be connected to compatible receivers. The use of the splitter thus negates the need for users to have a large number of individual antennae in their rack if several wireless systems are being used at the same time.

Fans of uncomplicated cable routing will also appreciate the splitter's ability to power multiple wireless receivers from a central supply, while users looking to accommodate the splitter in a 19" rack can accomplish this with ease courtesy of the built-in rack ears, the single height unit (1U) requirement, and an installation depth of just 16cm, which provides sufficient space in the rack for the splitter's cabling.
