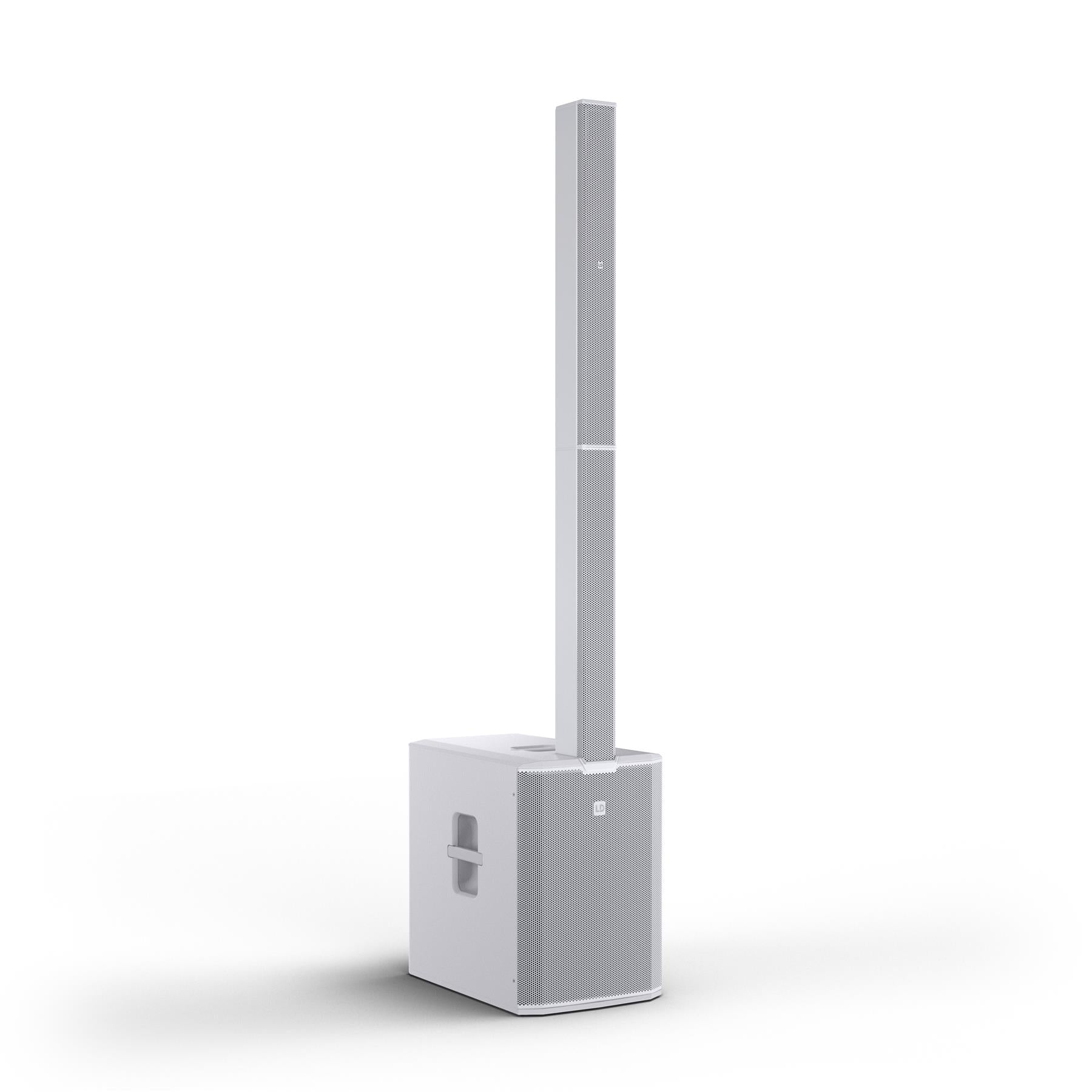

LD Systems Maui 44 G3 MIX White 4-Way Cardioid Column PA System with Digital Mixer

Description

The MAUI 44 G3 MIX is a high-performance, fully active 4-way column PA system with a passive cardioid column design and an integrated 8-channel digital mixer. Developed for demanding live performances, it combines powerful full-range sound, plenty of headroom, controlled dispersion and comprehensive mixing capabilities with the fast, straightforward handling the MAUI series is known for.

The integrated digital mixer provides 8 × XLR/TRS combo inputs, 6 of which feature microphone preamps, plus on-board effects and a footswitch connection for hands-free control. Bluetooth audio streaming enables convenient, high-quality wireless playback. Four monitor outputs and a dedicated system output provide flexible monitoring and routing options.

All mixer and system settings can be controlled directly from the integrated colour display or wirelessly via the free MAUI MIX app for iOS and Android. The SysLink® port connects two MAUI 44 G3 MIX systems for true stereo operation, providing centralised control of all 16 channels across both systems.

The high-power 15"" neodymium woofer delivers punchy, precise low end down to 34 Hz. Specially airflow-optimised bass reflex ports reduce turbulence and port noise, ensuring clean, defined bass even at high output levels.

The two-piece column houses a total of 14 × 3.5"" neodymium midrange drivers and 4 × 1"" compression drivers. In the upper column section, newly developed phase plugs and BEM-optimised waveguides ensure even, controlled dispersion. The lower column section features horn-loaded midrange drivers for increased efficiency, substantial headroom and powerful, clear vocal reproduction. The result is coherent mid- and high-frequency reproduction with a dispersion pattern of 120° × 25°.

The column's passive cardioid design directs sound energy towards the audience while attenuating rearward radiation by up to 18 dB. This significantly reduces unwanted sound on stage. With an additional rear-facing MAUI 44 G3 SUB and the Cardioid preset, this principle can be extended to the low-frequency range, increasing bass output towards the audience while noticeably reducing it behind the system. For maximum bass boost, the second subwoofer can instead be positioned facing forwards, doubling the sound pressure in the low-frequency range (+6 dB).

The Class-D amplifier delivers 1,800 W RMS (3,600 W peak), enabling a maximum SPL of 133 dB. The fully active 4-way architecture uses dedicated driver groups and amplifier channels for each frequency band. Crossover frequencies are set at 200 Hz, 700 Hz and 1,800 Hz. Equipped with DynX® DSP (Gen. 2) and advanced peak, RMS and thermal limiters, the MAUI 44 G3 MIX delivers clean, undistorted sound even at the highest output levels.

The polyurea-coated birch plywood subwoofer enclosure and rugged aluminium columns are built to withstand everyday professional use. Four ergonomic carrying handles on the subwoofer and recessed handles in the columns make transport and handling easier.

The MAUI 44 G3 MIX is ideal for solo performers, duos, bands and event service providers who want professional sound reinforcement, integrated mixing and flexible monitoring in one system.

High-performance 4-way cardioid column PA system
3600 W peak power / 133 dB max. SPL
15"" high-power bass reflex subwoofer with low-end down to 34 Hz
14 x 3.5"" neodymium mid-range drivers for balanced mids
4 x 1"" compression drivers with waveguide for precise and clear highs
Digital 8-channel mixer with on-board effects and footswitch input
Remote control via the free MAUI MIX App (iOS and Android)
Connect two systems via SysLink® for stereo use and unified control
Cardioid column with up to 18 dB rear attenuation (100 Hz-1 kHz)
BEM optimised waveguides and phase plugs for controlled, homogeneous dispersion
Horn-loaded mid-range drivers for enhanced wavefront coherence
Airflow-optimised bass reflex design for extended low-frequency response and reduced port noise
Expandable with second MAUI 44 G3 subwoofer for extended low-end or cardioid subwoofer set-up
DynX® DSP (Gen.2) with advanced limiters for distortion-free sound even at maximum volume
Wireless audio streaming via Bluetooth®
Subwoofer with 4 ergonomic handles for easy transport
Fast and easy setup with cable-free connection and automatic column detection
Rugged polyurea-coated birch plywood subwoofer and powder-coated aluminium columns
