OMNITRONIC UHF-600 Handheld Microphone 823-832/863-865 MHz

Description

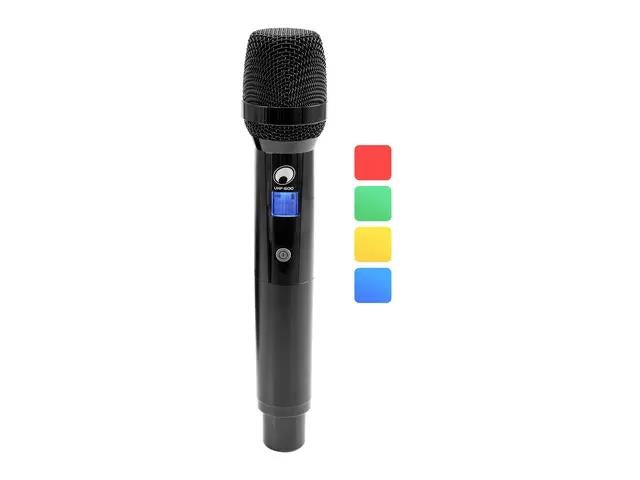

The OMNITRONIC UHF-600 Handheld Microphone is a dynamic UHF hand-held transmitter designed for use with compatible UHF-600 wireless receivers. It uses UHF pilot tone technology with PLL tuning to provide stable wireless performance, low latency and reliable signal transmission for vocal, speech and presentation applications.

Synchronization between the receiver and transmitter is handled via infrared, making setup quick and reducing the chance of frequency selection errors. With a cardioid pickup pattern, the microphone focuses on sound from the front while helping to reduce unwanted pickup from the sides and rear.

Operating across the licence-free UHF 823–832 MHz and 863–865 MHz bands, the microphone is approved for use in large parts of Europe. Up to 12 transmitters can be operated in parallel without interference, making it suitable for multi-microphone setups in venues, schools, houses of worship, events and performance spaces.

The metal housing provides a durable feel for regular use, while the multicolour LCD display shows key operating information including frequency, battery charge status, mute, and RF signal level.

Features

Dynamic hand-held transmitter for OMNITRONIC UHF-600 receivers
UHF pilot tone technology with PLL tuning for stable wireless operation
Infrared synchronization for quick and error-free setup
Cardioid polar pattern for focused vocal pickup
Operating range up to 60 m with line-of-sight
Licence-free UHF 823–832 MHz band approved in large parts of Europe
Licence-free UHF 863–865 MHz band approved in Europe
Up to 12 transmitters can be operated in parallel without interference
Ultra-low latency of less than 3 ms
Selectable RF power output with LO and HI settings
Multicolour LCD display for clear operating information
Charge status indicator for battery monitoring
Display shows frequency, mute status and RF signal level
Durable metal housing with black finish
Powered by 2 x AA batteries

Specifications

Product type: Hand-held transmitter
Compatible receivers: OMNITRONIC UHF-600 receivers
Power supply: 3 V DC, 130 mA
Capsule type: Dynamic
Capsule size: Ø 2.54 mm
Polar pattern: Cardioid
Battery: 2 x Mignon AA batteries, not included
Frequency range: 50 Hz – 16000 Hz
Sensitivity: -54 dB
Operating range: Up to 60 m with line-of-sight
Frequency band: UHF 823–832 MHz and UHF 863–865 MHz
Switching bandwidth: 11 MHz
Parallel operation: Maximum 12 transmitters
RF power output: 5 mW LO, 10 mW HI
Latency: Less than 3 ms
Modulation: FM
Housing colour: Black
Display type: Multicolour LCD
Display information: Frequency, charge status, mute, RF signal level
Material: Metal
Dimensions: 25.9 cm length
Diameter: Ø 4.95 cm
Weight: 0.35 kg
