RCF KX 10-A Active 10" Speaker 2000W

Description

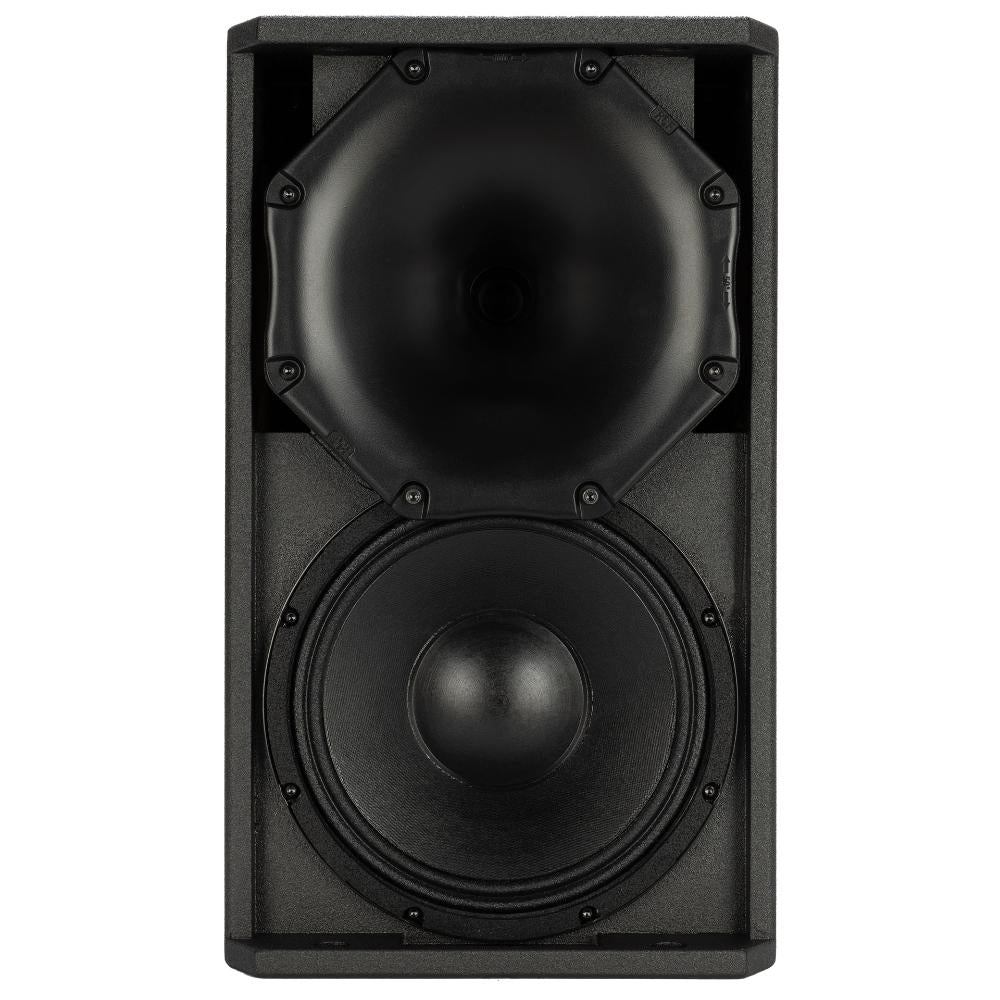

The KX 10-A is a compact, high-output 2-way active speaker system engineered for professional users, combining precise directivity, high SPL capability, and advanced system integration. The low-frequency section features a 10” neodymium driver in a bass-reflex design; the high-frequency section comprises a neodymium compression driver with a 1.75” PKX dome, coupled to a 100° x 50° True Resistive Waveguide, rotatable by 90° to ensure flexible coverage options. An integrated two-channel 2000 W Class D amplifier with proprietary DSP processing and remote management via RDNet enables optimal system performance. Its weatherproof, multifunctional enclosure with Quick Fit and M10 inserts supports versatile deployment for ground-stacked, pole-mounted, or flown applications.

130 dB SPL Max
Rotatable 100° x 50° TRW Horn
10’’ neodymium woofer, 2.5’’ voice coil
1,75’” PKX dome, neodymium compression driver
2 channel, 2000 W Class D Amplifier
DSP Processing with FiRPHASE and BMC
RDNet Networked Management
powerCON TRUE1 TOP mains connectors

Frequency Response
60 Hz ÷ 20000 Hz
Max SPL @ 1m
130 dB
Horizontal coverage angle
100°
Vertical coverage angle
50°
Transducers
Compression Driver
1 x 1.0'' neo, 1.75'' v.c
Woofer
10'' neo, 2.5'' v.c

Input signal
bal/unbal
Input connectors
XLR, RDNet Ethercon
Output connectors
XLR, RDNet Ethercon
Input sensitivity
-2 dBu/+4 dBu

Crossover Frequencies
1600 Hz
Protections
Thermal, HF
Limiter
Fast Limiter
Controls
Bypass, Linear/High Pass, Volume
RDNet
Onboard
Power section
Total Power
2000 W Peak
High frequencies
600 W Peak
Low frequencies
1400 W Peak
Cooling
Convection
Connections
Powercon TRUE1 TOP IN/OUT
Standard compliance
Safety agency
CE compliant

Cabinet/Case Material
Baltic birch plywood
Hardware
3X M10 TOP AND BOTTOM
2X PIN D.10 AND M10 SIDE
Handles
1 TOP
Pole mount/Cap
35 mm insert
Grille
Steel with clothing
Color
Black
Size / Weight
Height
510 mm / 20.08 inches
Width
300 mm / 11.81 inches
Depth
300 mm / 11.81 inches
Weight
14 kg / 30.86 lbs
