Description

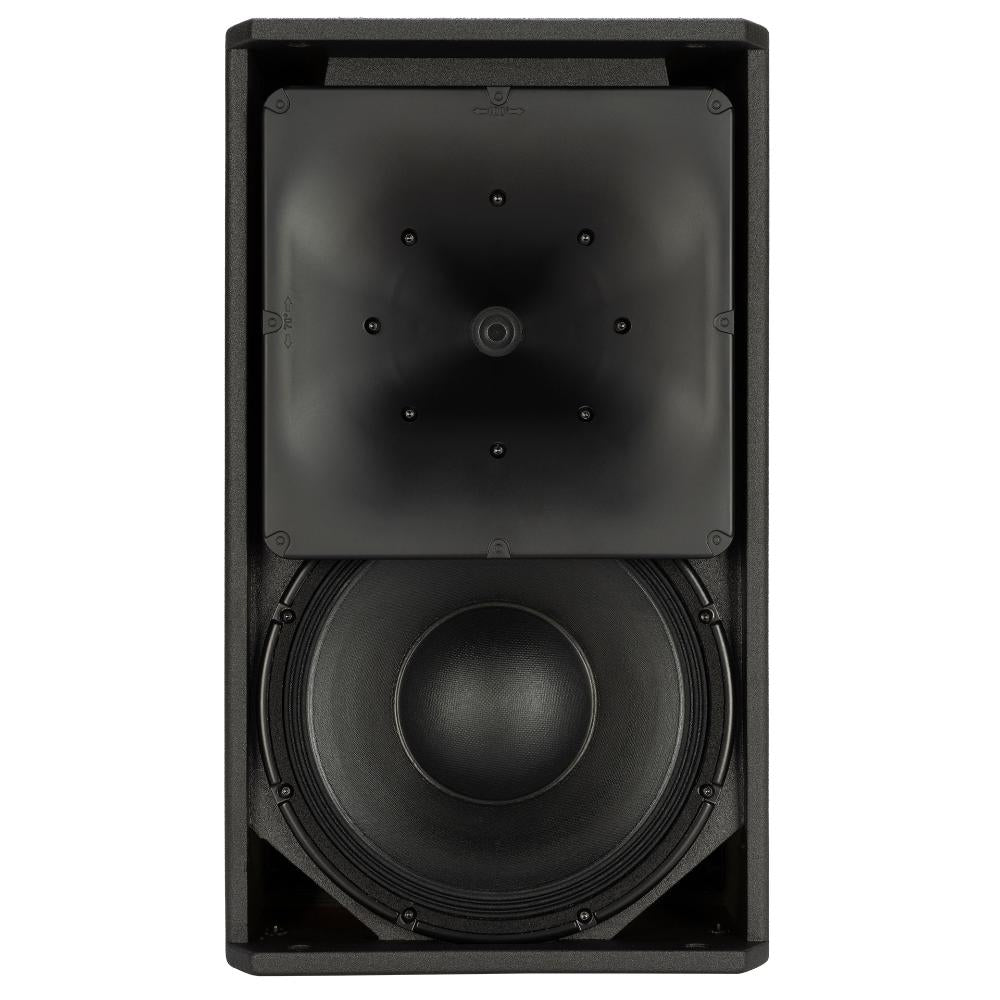

The KX 32-A is a compact, high-output 2-way active speaker system engineered for professional users, combining precise directivity, high SPL capability, and advanced system integration. The low-frequency section features a 12” neodymium driver in a bass-reflex design; the high-frequency section comprises a neodymium compression driver with a 3” titanium dome, coupled to a 100° x 70° True Resistive Waveguide, rotatable by 90° to ensure flexible coverage options. An integrated two-channel 3200 W Class D amplifier with proprietary DSP processing and remote management via RDNet enables optimal system performance. Its weatherproof, multifunctional enclosure with Quick Lock Pins and M10 inserts supports versatile deployment for ground-stacked, pole-mounted, or flown applications.
134 dB Max SPL
Rotatable 100° x 70° TRW horn
12” neodymium woofer, 3.5” voice coil
3.0” Ti dome, neodymium compression driver
2 channel, 3200 W Class D Amplifier
DSP Processing with FiRPHASE and BMC
RDNet Networked Management
powerCON TRUE1 TOP mains connectors
Frequency Response
50 Hz ÷ 20000 Hz
Max SPL @ 1m
134 dB
Horizontal coverage angle
100°
Vertical coverage angle
70°
Transducers
Compression Driver
1.4'' neo, 3.0'' v.c
Woofer
12'' neo, 3.5'' v.c
Input/Output section
Input signal
bal/unbal
XLR, RDNet Ethercon
Output connectors
XLR, RDNet Ethercon
Input sensitivity
-2 dBu/+4 dBu
Crossover Frequencies
750Hz
Protections
Thermal, HF
Limiter
Fast Limiter
Controls
Gain Reduction, Proces., 8 sel. presets
RDNet
Onboard
Total Power
3200 W Peak
High frequencies
1200 W Peak
Low frequencies
2000 W Peak
Cooling
Convection
Connections
Powercon TRUE1 TOP IN/OUT
Standard compliance
Safety agency
CE compliant
Cabinet/Case Material
Baltic birch plywood
Hardware
Quick lock, pole mount, 3 x M10 on top, 3 x M10 on bottom sides
Handles
2 on side
Pole mount/Cap
35 mm insert
Grille
Steel with clothing
Color
Black
Size / Weight
Height
620 mm / 24.41 inches
Width
360 mm / 14.17 inches
Depth
409.3 mm / 16.11 inches
