RCF KXL 4-A Active High Output Line Array Speaker 3200W Dual 10” RDNet Black

The KXL 4-A is a premium, high-performance 2-way active array speaker designed for demanding professional audio environments. It delivers powerful, articulate sound at up to 135 dB SPL and features a rotatable 100° x 25° TRW waveguide for precise coverage. Equipped with dual 10” neodymium woofers and a 4” titanium dome compression driver, this speaker ensures optimal clarity and headroom. Backed by a 3200W peak Class-D amplifier and RDNet networked management, the KXL 4-A is ready for seamless integration into touring rigs or permanent installations. Its robust Baltic birch cabinet and weather-resistant construction make it suitable for a variety of deployments including flown, pole-mounted, or ground-stacked systems.

Features:
135 dB max SPL
Rotatable 100° x 25° True Resistive Waveguide

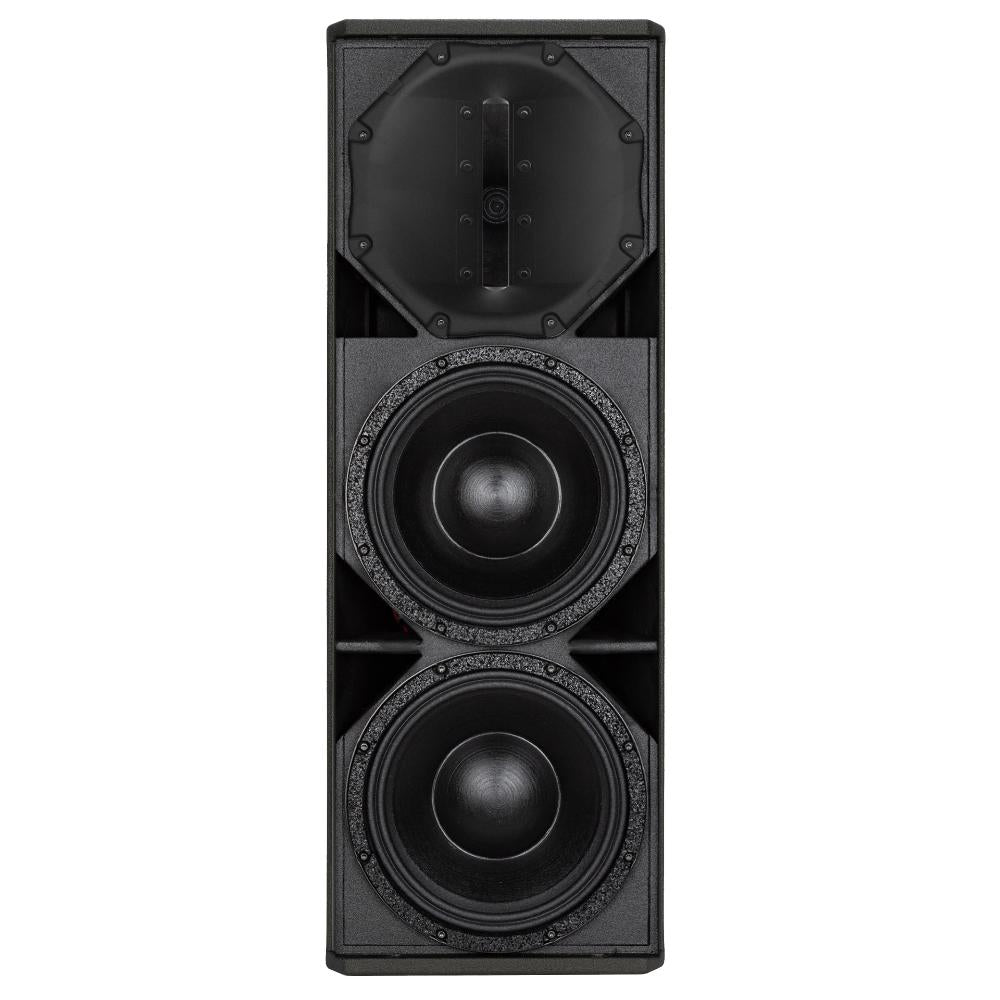

Dual 10” neodymium woofers with 3” voice coils
4” titanium dome compression driver
3200W peak Class-D amplifier (2000W LF + 1200W HF)
DSP with FiRPHASE and BMC
Onboard RDNet for advanced monitoring and control
8 selectable DSP presets
Fast limiter and full system protections
Rugged Baltic birch cabinet with advanced rigging
powerCON TRUE1 TOP input and output
Weather-resistant design for touring and installation use

Specifications:
Frequency Response: 45 Hz – 20,000 Hz
Max SPL @ 1m: 135 dB
Horizontal Coverage: 100°
Vertical Coverage: 25°
Crossover Frequency: 900 Hz
Input Sensitivity: +4 dBu
Input/Output: XLR, RDNet Ethercon
Limiter: Fast Limiter
Protections: Thermal, RMS
Controls: Gain reduction, delay, processing, 8 presets
RDNet: Onboard

Power Section:
Total Peak Power: 3200W
LF Peak Power: 2000W
HF Peak Power: 1200W
Cooling: Convection
Power Connections: powerCON TRUE1 TOP IN/OUT

Physical Specifications:
Cabinet Material: Baltic birch plywood
Grille: Steel with acoustic cloth
Mounting Options: Array fittings, 2x M10 (top), 2x M8 (sides), 35mm pole mount
Handles: 2 side, 2 rear
Color: Black

Size / Weight:
Height: 825 mm
Width: 310 mm
Depth: 369 mm
Weight: 30.4 kg
