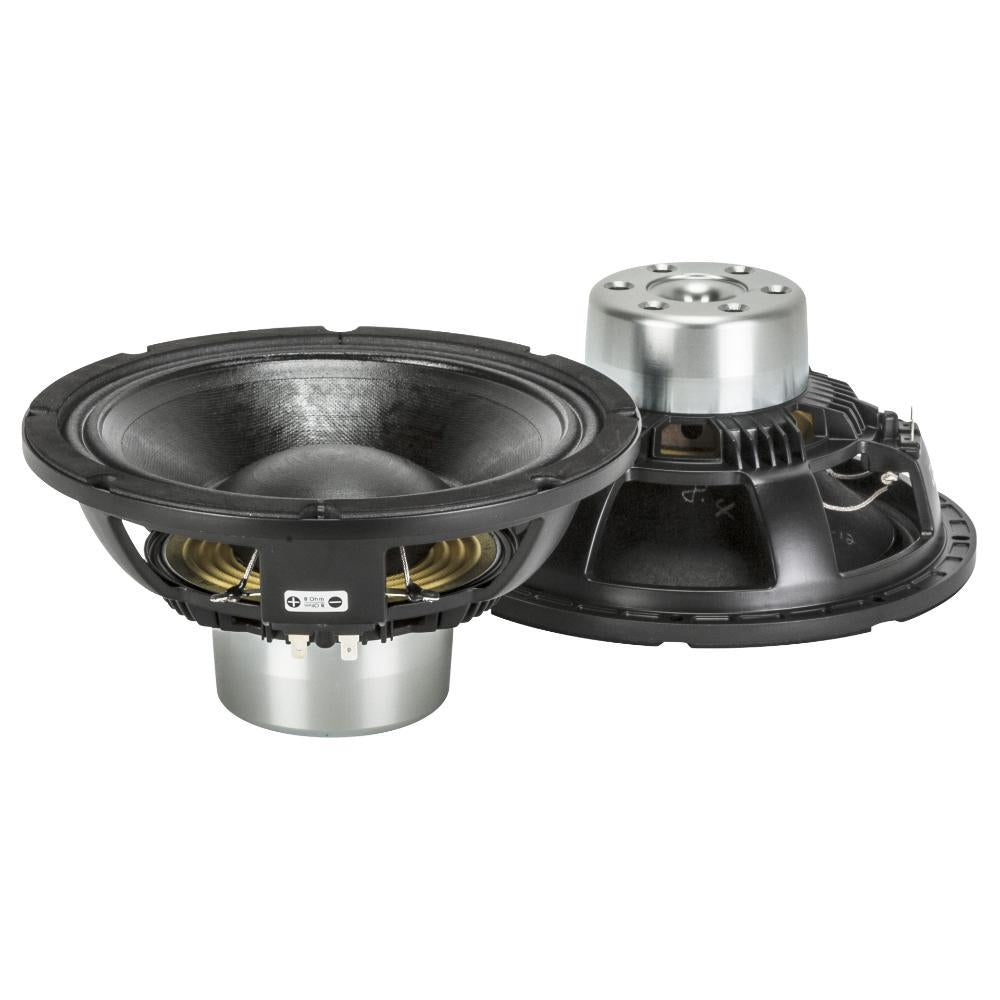

RCF MB12N405 12" Neodymium Mid-Bass Speaker Driver 2000W 4" Voice Coil

The RCF MB12N405 is a high-performance 12" mid-bass transducer engineered for superior power handling, efficiency, and linear response. Built with a 4-inch fibreglass inside/outside aluminum voice coil and a neodymium magnet structure, it delivers 2000W of continuous program power and boasts a sensitivity of 98.5 dB. Designed for professional audio systems where deep, defined mid-bass is critical, the MB12N405 features dual-forced air ventilation for minimal power compression, a triple roll surround for high excursion, and an exponential cone geometry for exceptional clarity and control across the 50 Hz – 2 kHz range.

Features
4" fibreglass inside/outside aluminum voice coil for maximum durability and performance
2000W continuous program power handling (1000W AES)
High 98.5 dB sensitivity for efficient SPL output
Wide frequency response from 50 Hz to 2 kHz
Hypervented neodymium magnetic structure reduces power compression
Triple roll surround and exponential cone geometry for improved excursion and tone control
Aluminum voice coil on fibreglass former for thermal stability and light mass
Dual-forced air ventilation for consistent performance under load
Curved polycotton cone design ensures tight and defined low-mid response

Specifications
Nominal Diameter: 12" / 305 mm
Rated Impedance: 8 Ohm
Program Power: 2000 W
AES Power Handling: 1000 W
Sensitivity: 98.5 dB
Frequency Range: 50 – 2000 Hz
Minimum Impedance: 6.6 Ohm
Effective Piston Diameter: 260 mm / 10.24 in
Max Excursion Before Damage (Xmax): 53 mm / 2.09 in

Voice Coil
– Diameter: 4.0" / 102 mm
– Length: 20 mm / 0.79 in
– Material: Aluminum
– Winding Type: Inside/Outside (2 layers)
– Former Material: Fibreglass

Mechanical Design
– Magnet Type: Neodymium
– Hypervented Magnetic Structure: Yes
– Surround Material: Polycotton
– Surround Design: Triple Roll
– Cone Design: Curved
– Spider: Single

Physical Specifications
Top Plate Thickness: 12 mm / 0.47 in
Overall Diameter: 320 mm / 12.6 in
Height: 133 mm / 5.24 in
Weight: 7.7 kg / 16.98 lbs
