Studiomaster Core Line 121 Installation Line Array Speaker

Description

The new CORE LINE is derived from acclaimed CORE 121/151, our unique all-in-one curve array system acclaimed by many a customers across MI and PA sectors. As integral as CORE 121/151 system serves as a self-contained portable system, we have creamed off the top part from it dedicatedly for system integration market of growing demand in sound quality and aesthetical installation.

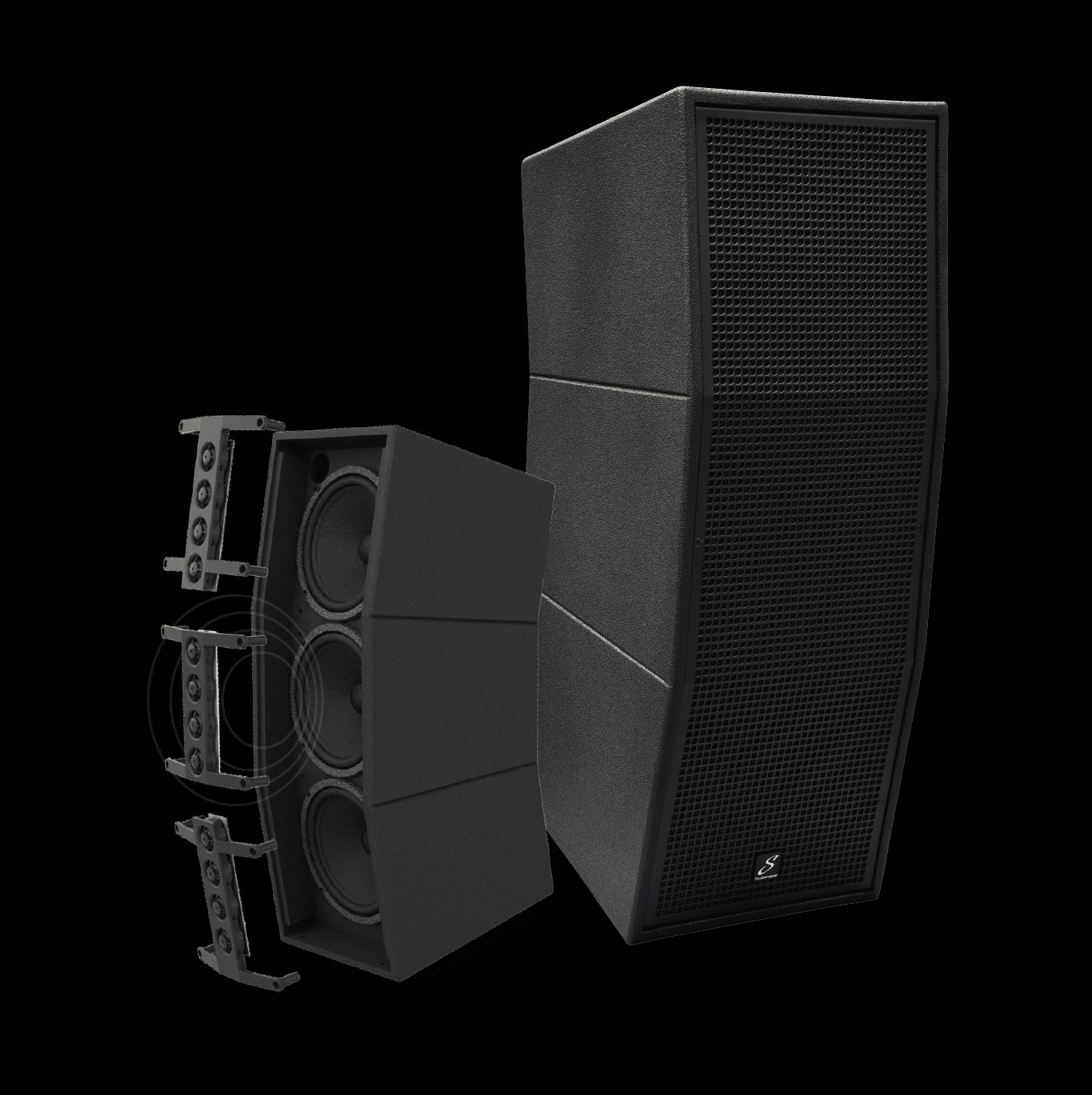

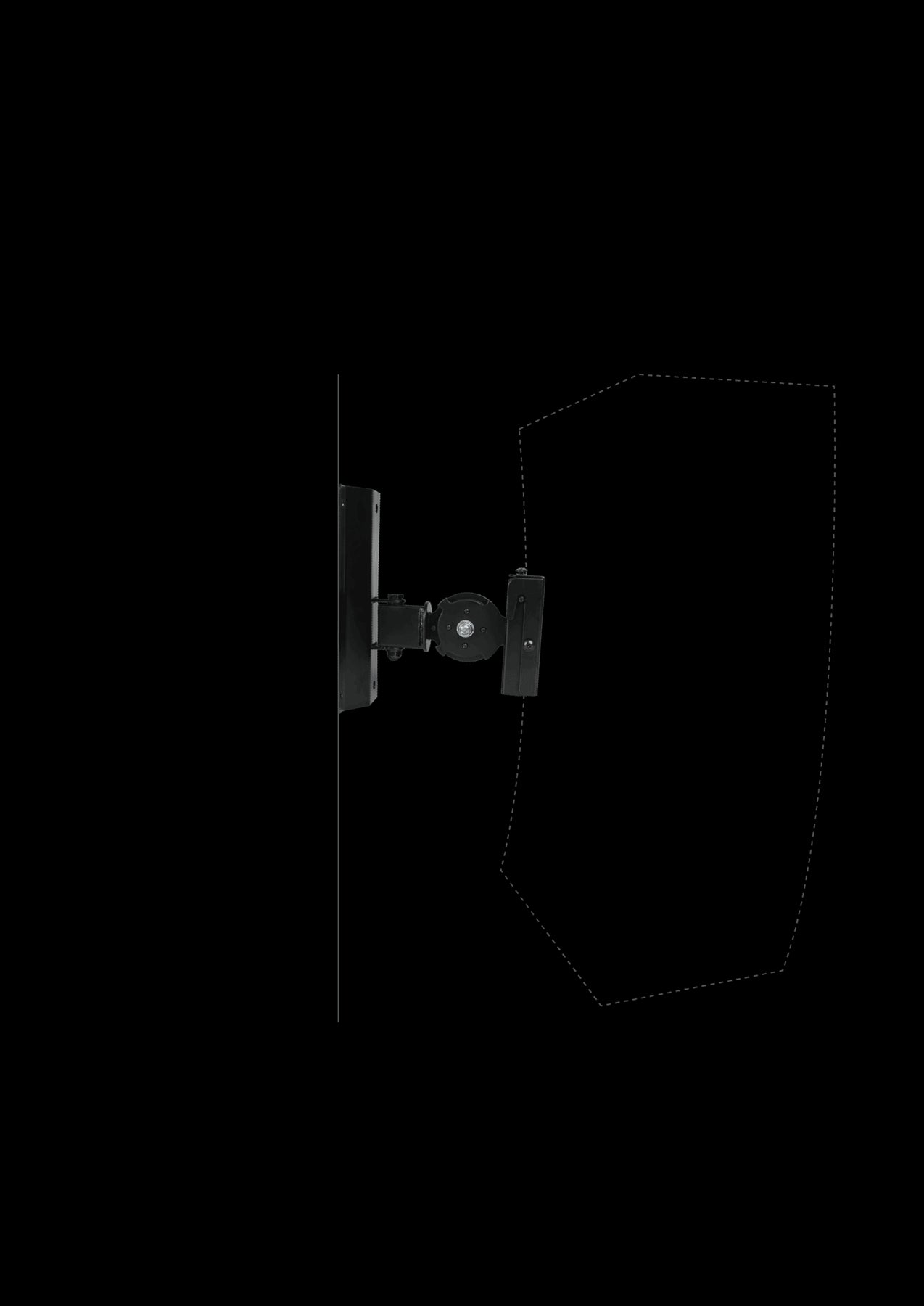

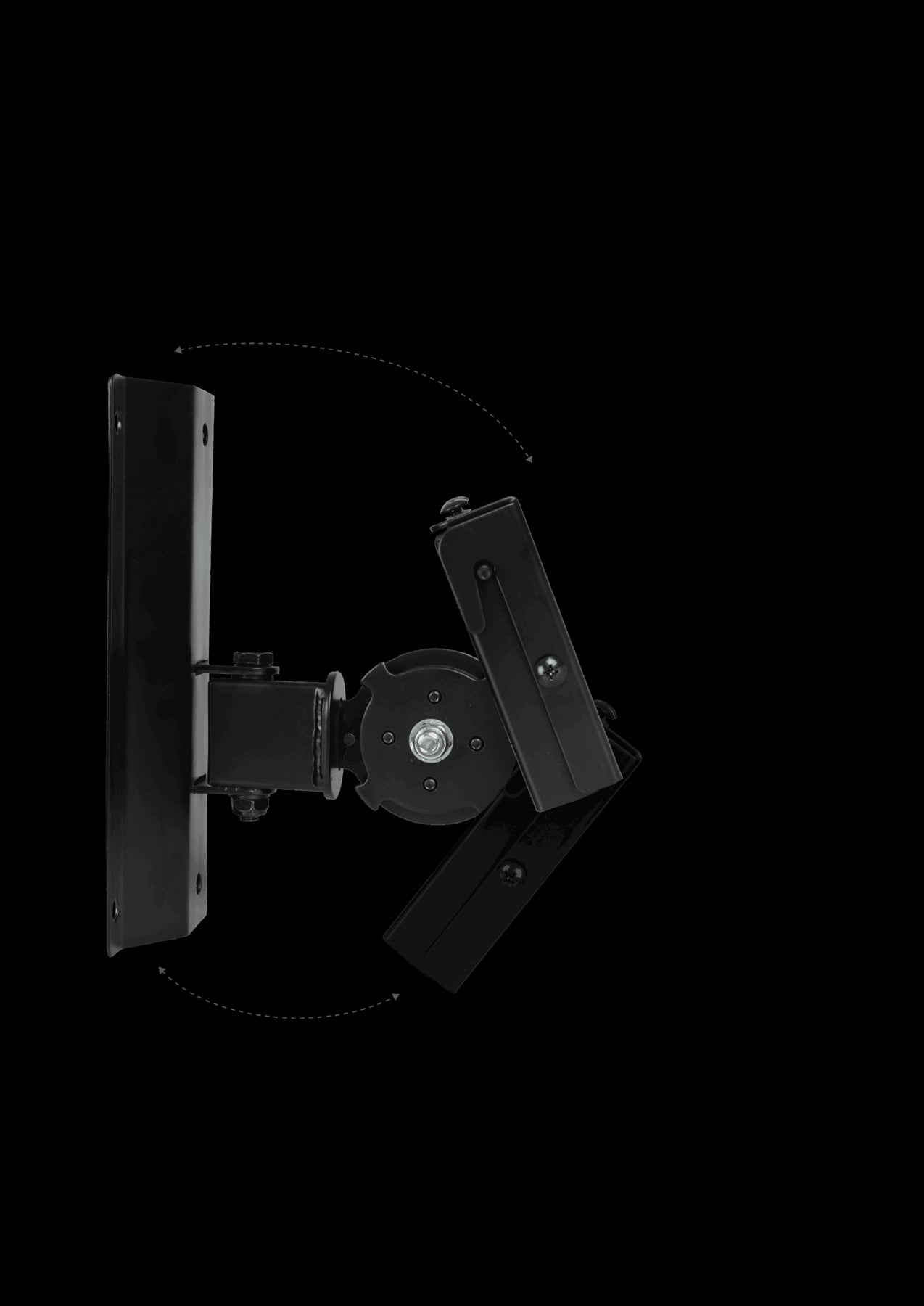

Driven by a sturdy arrangement consisting of 3 units of 5” MF and 9 units of 1” tweeter, the CORE LINE not only delivers a speech intelligibility in clear-cut layers, but also disseminates sound pressure evenly with its splay angle. What’s more with CORE WALL MOUNT is an extensive range of angle adjustment both horizontally and vertically for no shadow area even in a hasty installation.

CORE LINE is considerately modified to connectors most universal for installation applications, that most engineers will intuitively get the work done with PHONIX connecters.

Max SPL: 124 dB
LF Transducer: MF 3 × 5" Neodymium full range driver
HF Transducer: HF 9 × 1" dome tweeter
Rated Power: 300 W (RMS)
Coverage (H × V): 100° × 70°
Dimensions (W × H × D): 185 × 495 × 220 mm (315 mm max)
Net Weight: 8 kg
