W Audio BMS204 Speaker White 2 x 4" Installation 100V Line

Description

The W Audio BMS204 Series is a versatile speaker range designed for commercial audio installations, available in both low impedance and 100V line versions. Featuring dual 4” mid/low-frequency drivers and a ¾” high-frequency horn, these speakers deliver clear, natural sound reproduction for both music and speech, maintaining a flat frequency response.

The 100V line models (SPEA100, SPEA101) offer multiple power taps (7.5W, 15W, 30W, 60W) and a 16Ω low impedance option, making them ideal for distributed audio systems. The low impedance models (SPEA102, SPEA103) provide 80W RMS power handling, perfect for small venues, restaurants, and retail environments.

Built with a robust ABS housing and available in black (SPEA100, SPEA102) or white (SPEA101, SPEA103), these compact and stylish speakers include a wall-mount bracket for easy installation in commercial and hospitality spaces.

2-way 100V line loudspeakers

Multiple power taps plus low impedance

Supplied in single units

Available in black or white

Robust ABS housing

Input: 70V, 100V, 16Ω

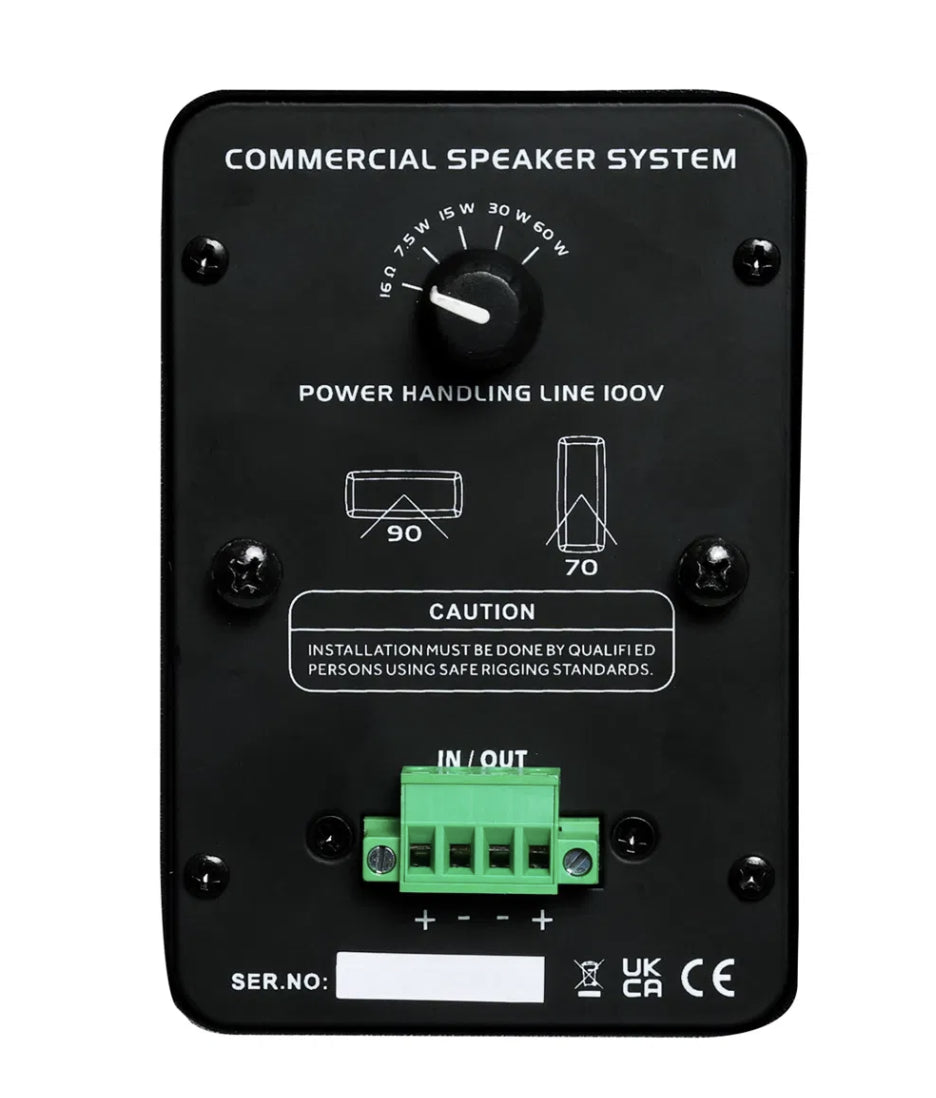

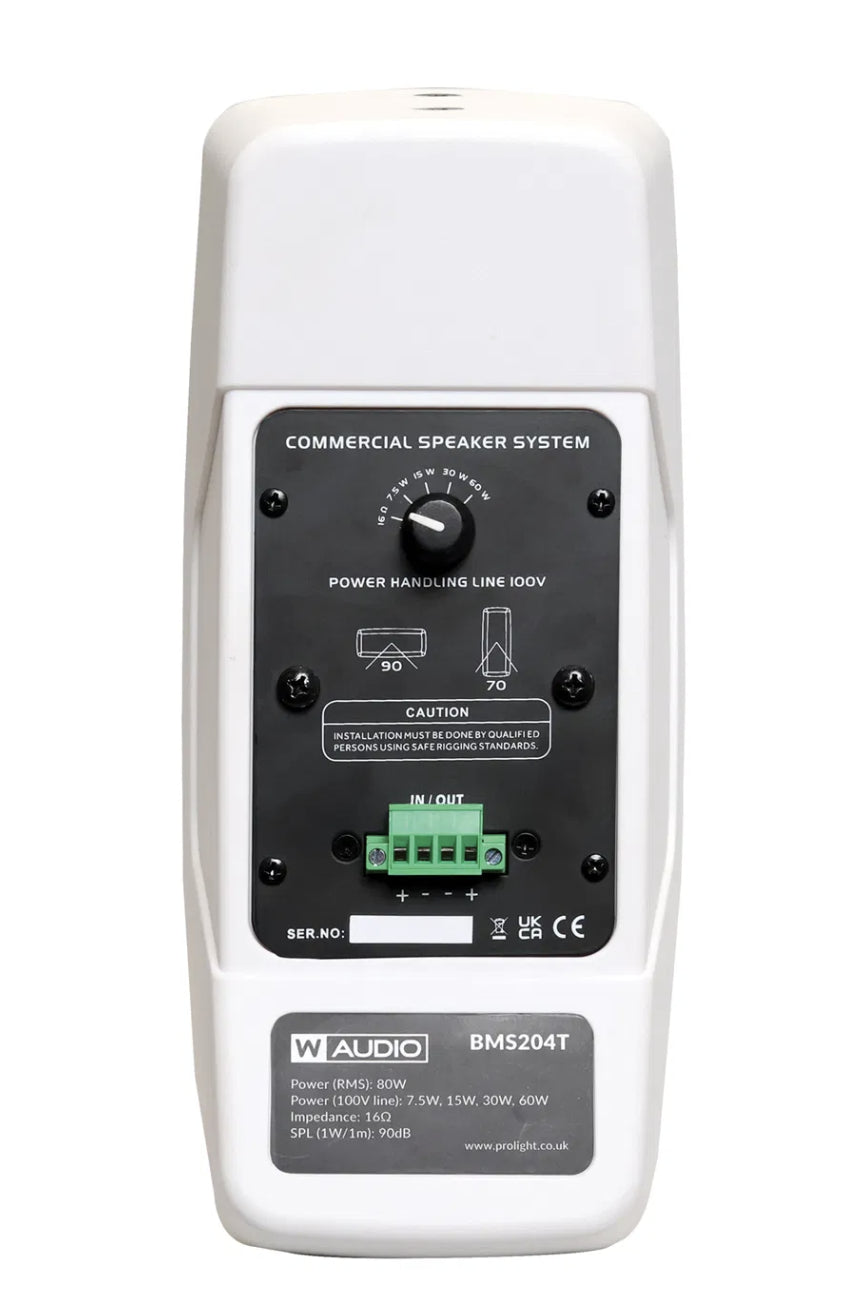

Power taps @ 100V: 7.5W, 15W, 30W, 60W

Power taps @ 70V: 3.75W, 7.5W, 15W, 30W

Impedance: 16Ω, 1.26KΩ, 618Ω,310Ω, 157Ω

Power (RMS): 80W @ 16Ω

Max. calculated SPL: 112dB

Sensitivity (1W/1m): 90dB

Frequency range (-10dB): 85Hz - 20kHz

Frequency range (-3dB): 100Hz - 20kHz

Horizontal coverage: 70°

Vertical coverage: 90°

LF transducers: 2 x 4”

HF transducers: 1 x 3/4”

Connections: Phoenix type plug-in terminals

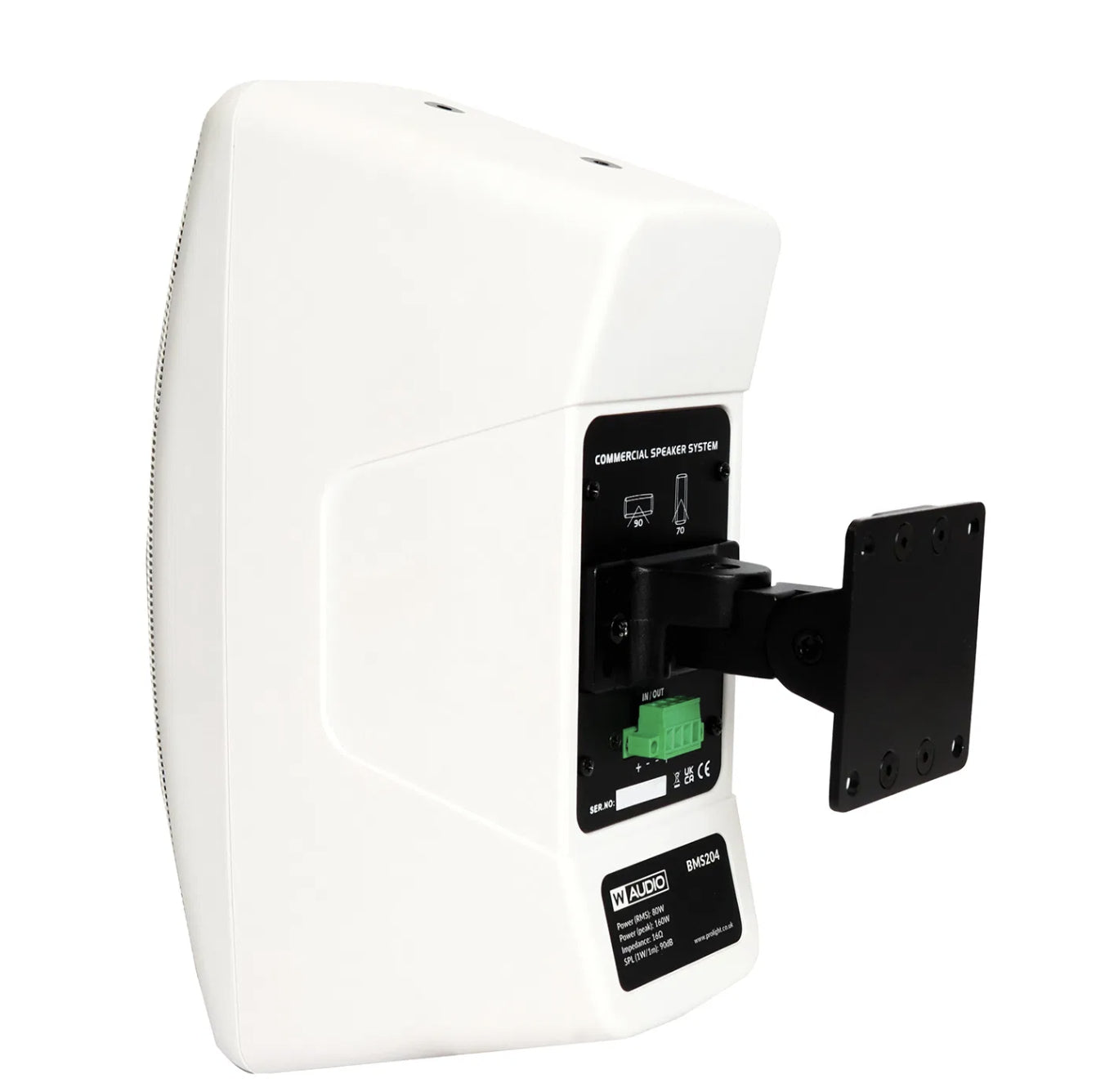

Mounting options: Includes wall mounting bracket
